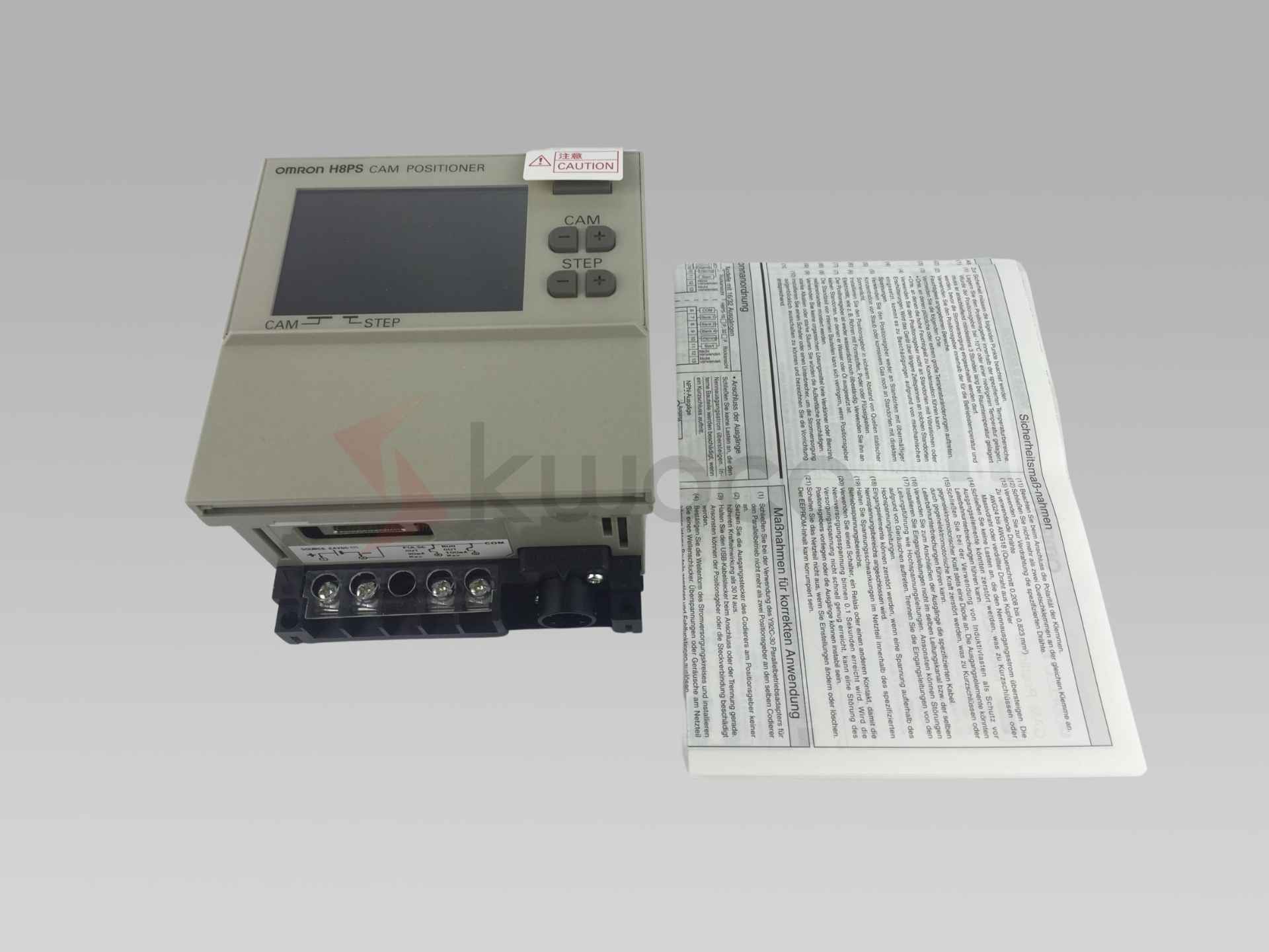

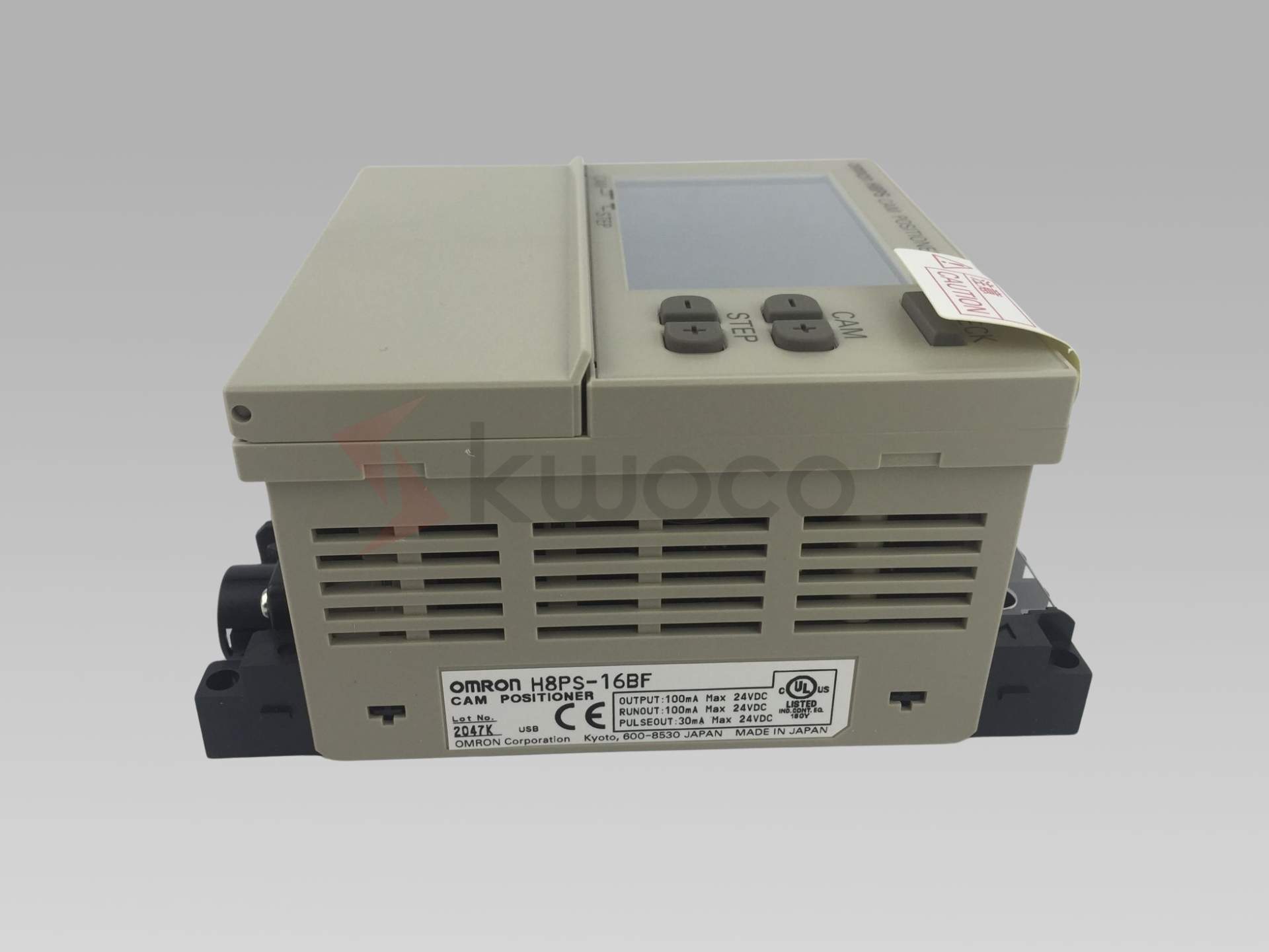

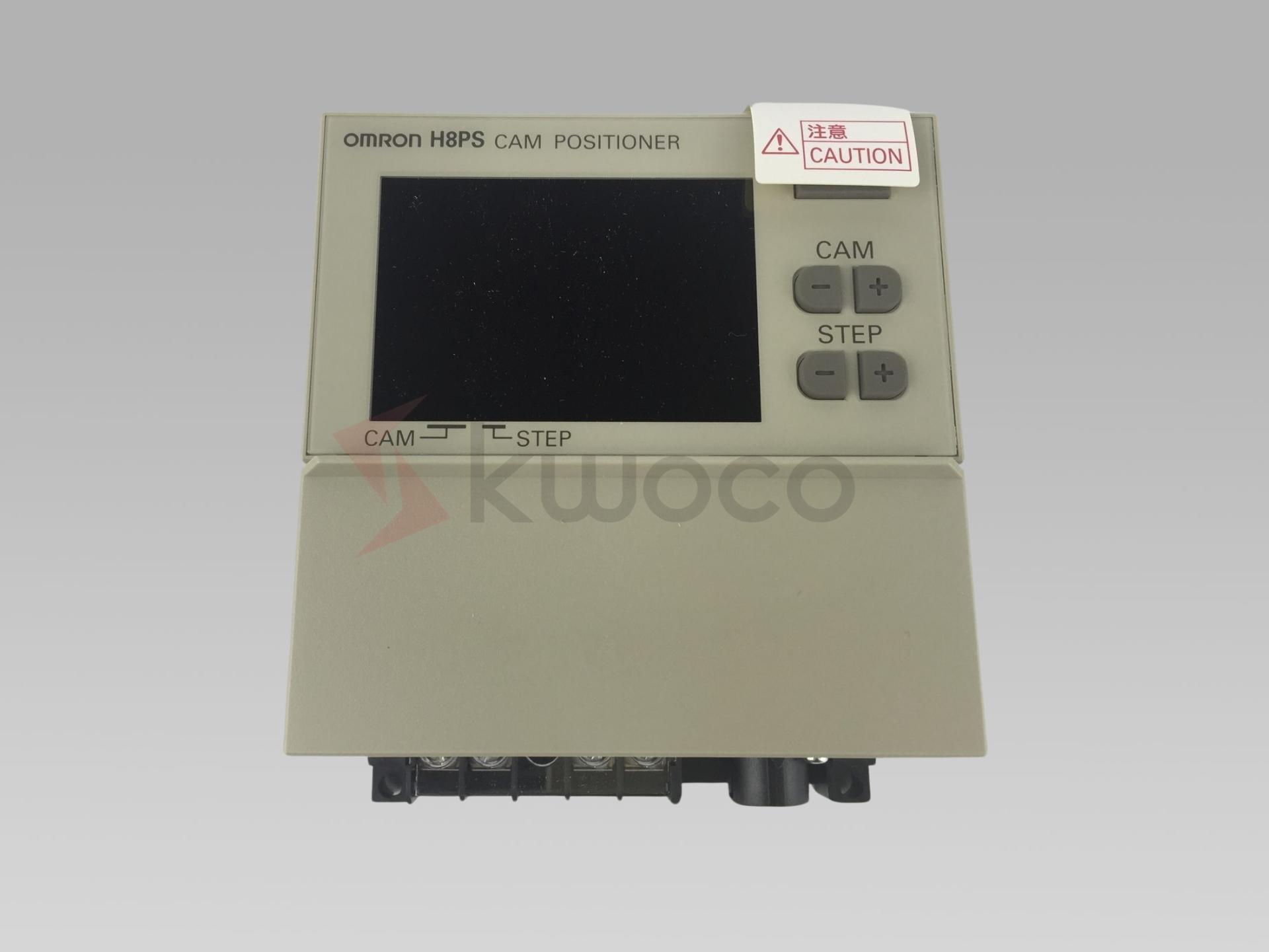

Omron H8PS-16BF Digital Cam Positioner
Digital Cam Positioner with 16 NPN open collector outputs, supply voltage 24VDC, 1600 r/min max. operating speed, DIN-rail mounting, high-visibility 7-segment display for clear feedback.
* Need more details? Our team is ready to help – just ask!
Key Features and Technical Specifications
Unlock unparalleled control and synchronization in your industrial automation systems with the Omron H8PS-16BF, a state-of-the-art digital cam positioner. This powerful device, designed for seamless integration into your 24VDC powered machinery, replaces complex mechanical cams with intelligent, programmable logic.
The H8PS-16BF series excels at precisely controlling machine operations based on the rotational position of a shaft. Its advanced digital cam functionality eliminates the wear and tear associated with traditional mechanical systems, leading to a longer operational lifespan and reduced maintenance costs.
| Feature | Specification |
|---|---|
| Model | H8PS-16BF |
| Supply Voltage | 24VDC |
| Input Type | NPN Open Collector, No-Voltage Contact |
| Output Type | NPN Outputs |
| Encoder Interface | Absolute Encoder |
| Mounting | DIN Rail Mounting |
| Max Shaft Speed | Rated for 5000rpm |
| Program Capacity | 16 Cam Patterns |
| Control Output | 30VDC, 100mA max |
| Environmental | IP40 |

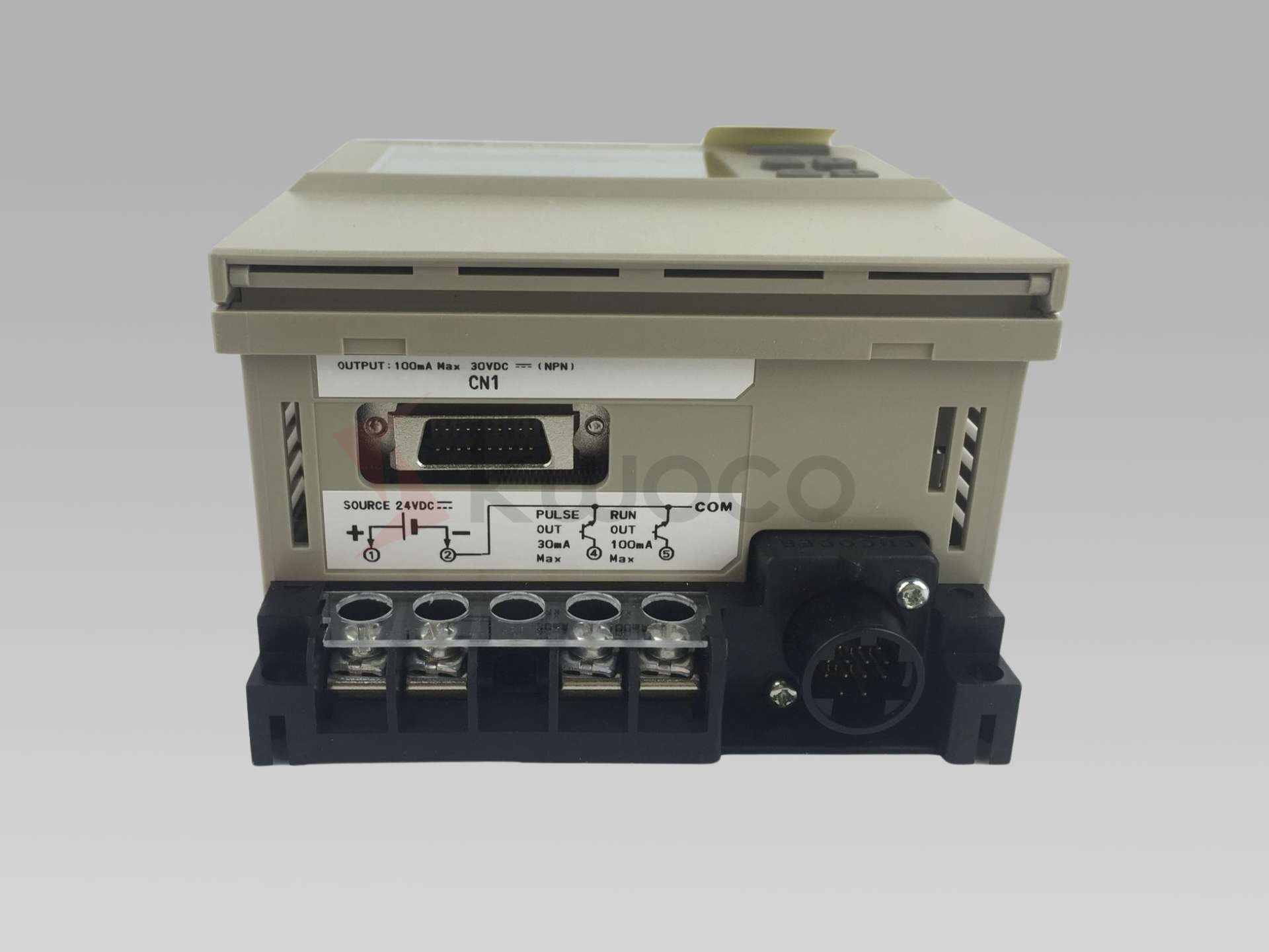

| Connections | M3.5 Screw Terminals for cable terminated with bare end |
| Dimensions | 50mm Casing Diameter |
| Shaft | 8mm Shaft |
Seamless Integration with 24VDC Automation Systems
The H8PS-16BF digital cam positioner is engineered to seamlessly integrate into existing 24VDC industrial automation architectures. Its supply voltage 24VDC compatibility ensures straightforward connection with common power supplies and control systems. This eliminates the need for complex voltage conversion modules, simplifying installation and reducing potential points of failure. You’ll find that incorporating this automation component into your setup is a breeze, allowing you to leverage its advanced capabilities without significant system overhauls.
Precision Control with Absolute Encoder Technology
Leveraging absolute encod technology, the H8PS-16BF remembers its position even after power cycles. This means no recalibration is necessary, saving valuable time and preventing operational interruptions. The H8PS series delivers exceptionally accurate positional data, crucial for applications demanding precise synchronization between different machine elements. This capability is a game-changer for high-speed production lines and complex assembly processes where even minor deviations can have significant consequences.
Versatile Input and Output Options for Enhanced Functionality
The H8PS-16BF boasts versatile input and output capabilities, making it adaptable to a wide range of control scenarios. It supports npn open collector outputs, offering flexibility in connecting to various downstream devices. Furthermore, the inclusion of a no-voltage contact input allows for simple and reliable triggering from external switches or sensors. This comprehensive connectivity ensures that the digital cam positioner can effectively interface with your existing control infrastructure, facilitating sophisticated automation strategies
Omron H8PS-16BF Product Datasheet
Frequently Asked Questions
The H8PS-16BF offers significant advantages by replacing mechanical wear with programmable logic, allowing for easier adjustments, higher precision, and reduced maintenance. This translates to increased uptime and operational efficiency.
The H8PS-16BF is designed to work with absolute encoders to ensure position memory retention. For other encoder types, you might need additional interface modules. Check our range of encoder accessories for compatible solutions.
The H8PS-16BF has an IP40 rating, which protects against solid objects larger than 1mm. For very humid or dusty environments, consider solutions with higher IP ratings. Our selection of industrial automation components includes options designed for harsher conditions.
The H8PS-16BF uses M3.5 screw terminals and is designed for cable terminated with bare end or bare end flying leads. This provides flexibility in wiring and ensures a secure connection.
