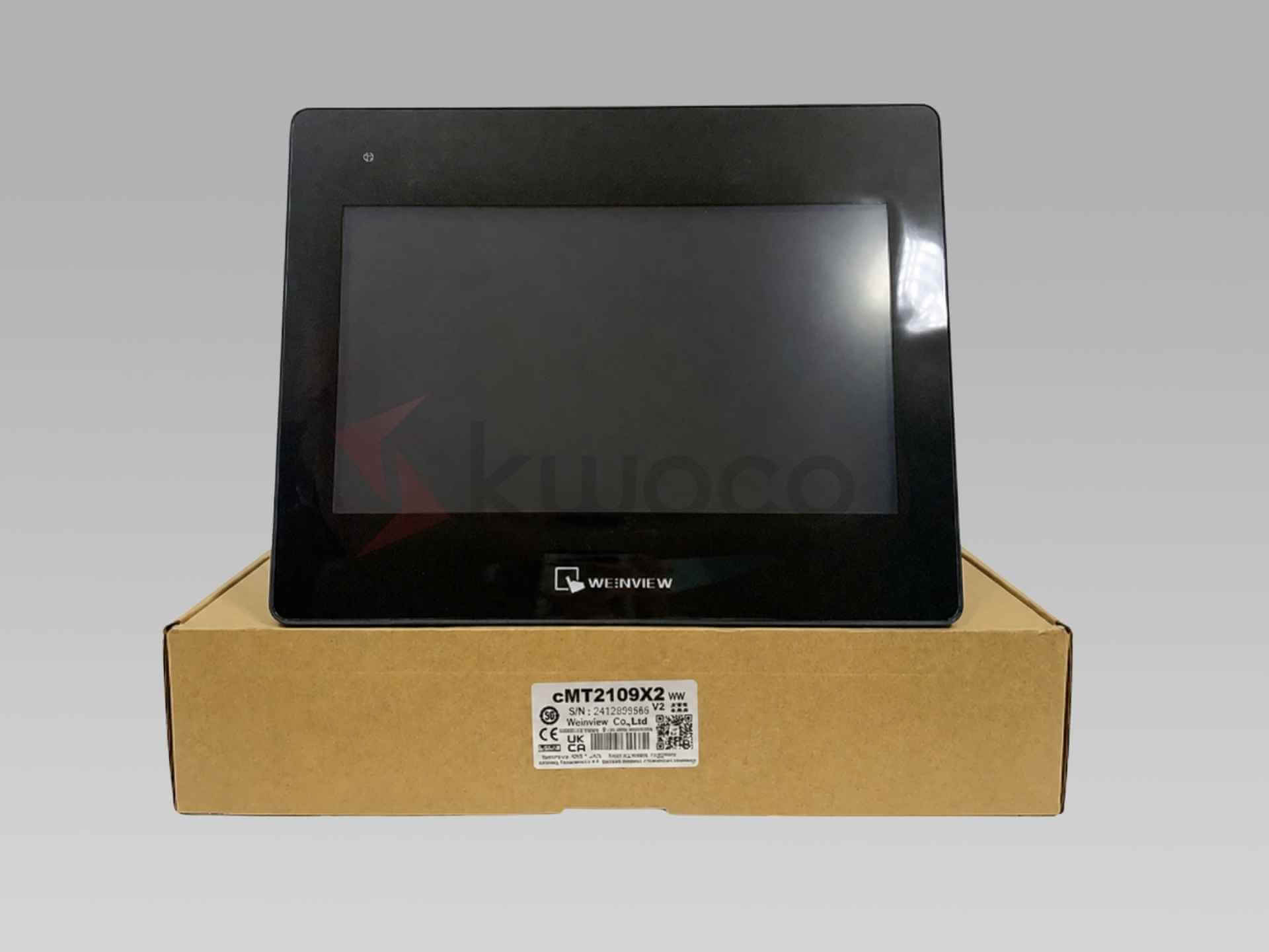

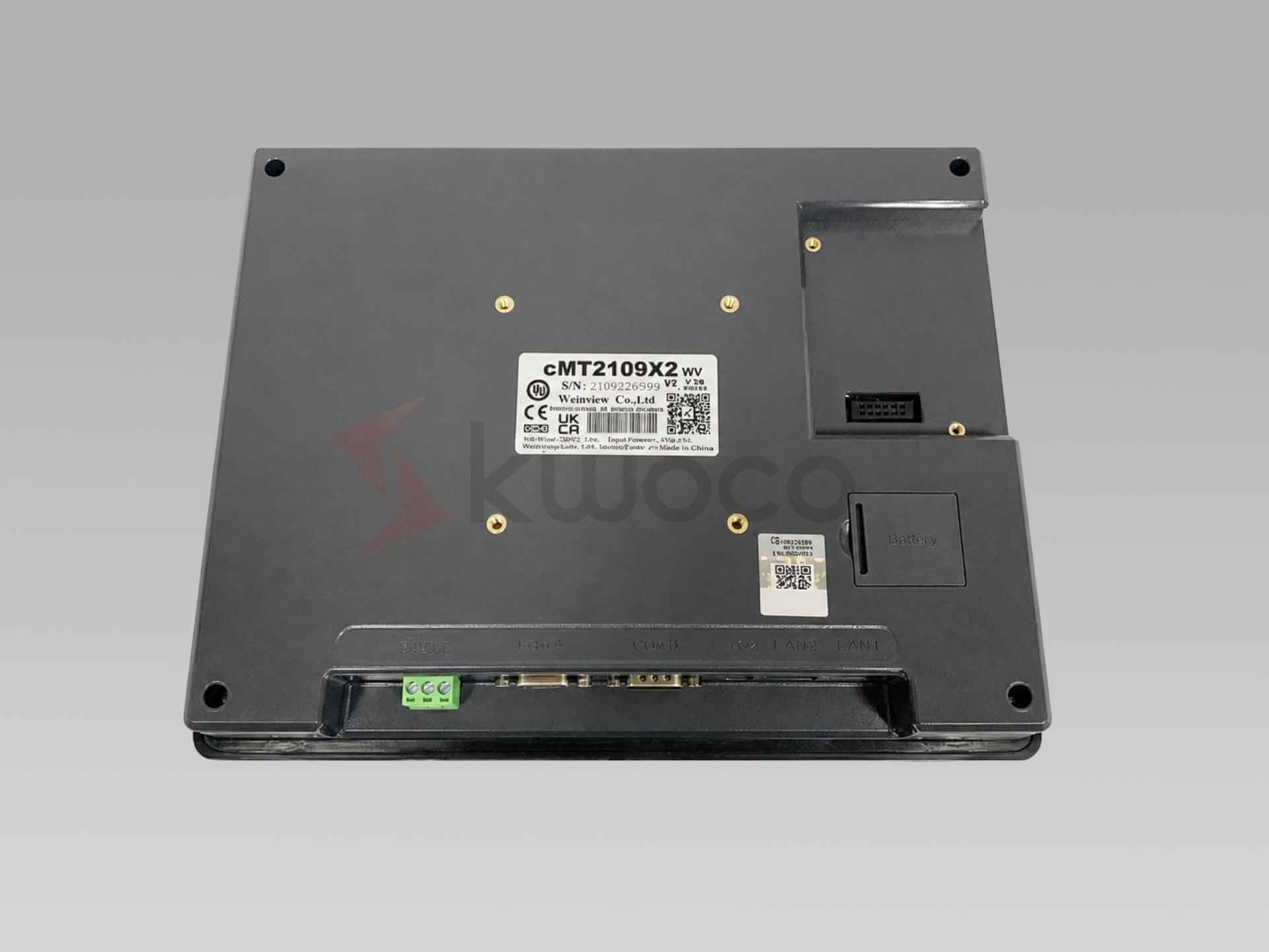

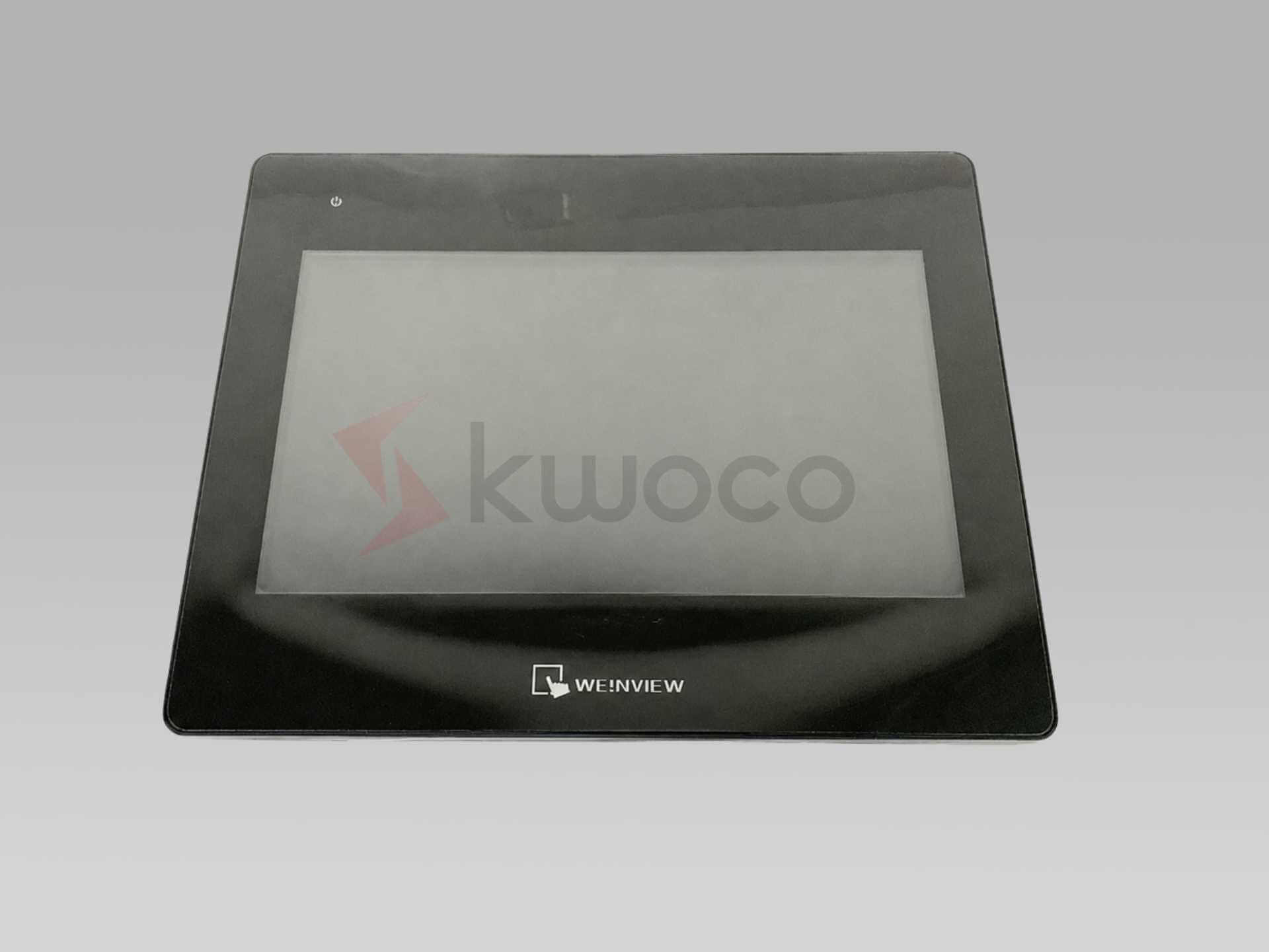

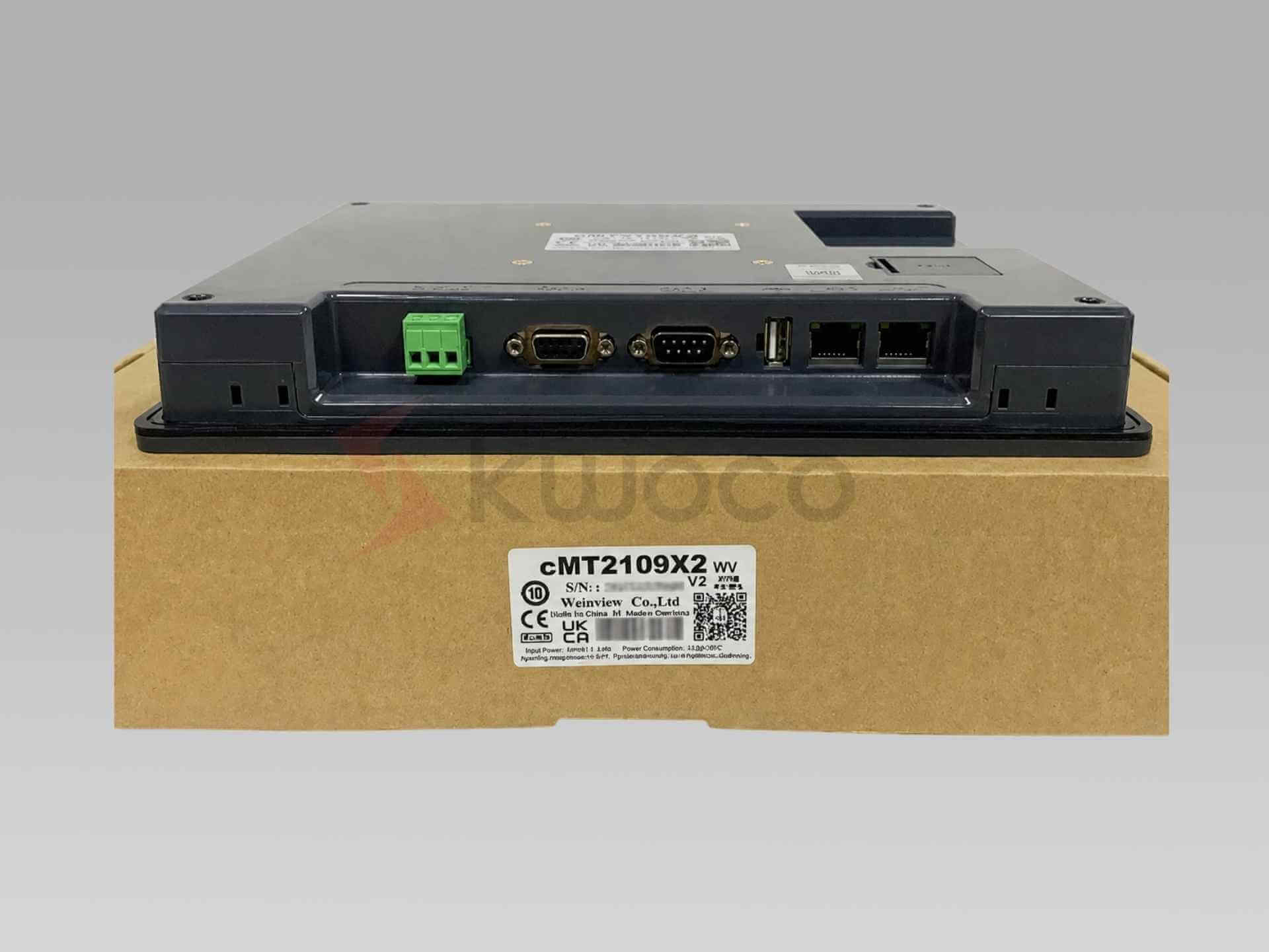

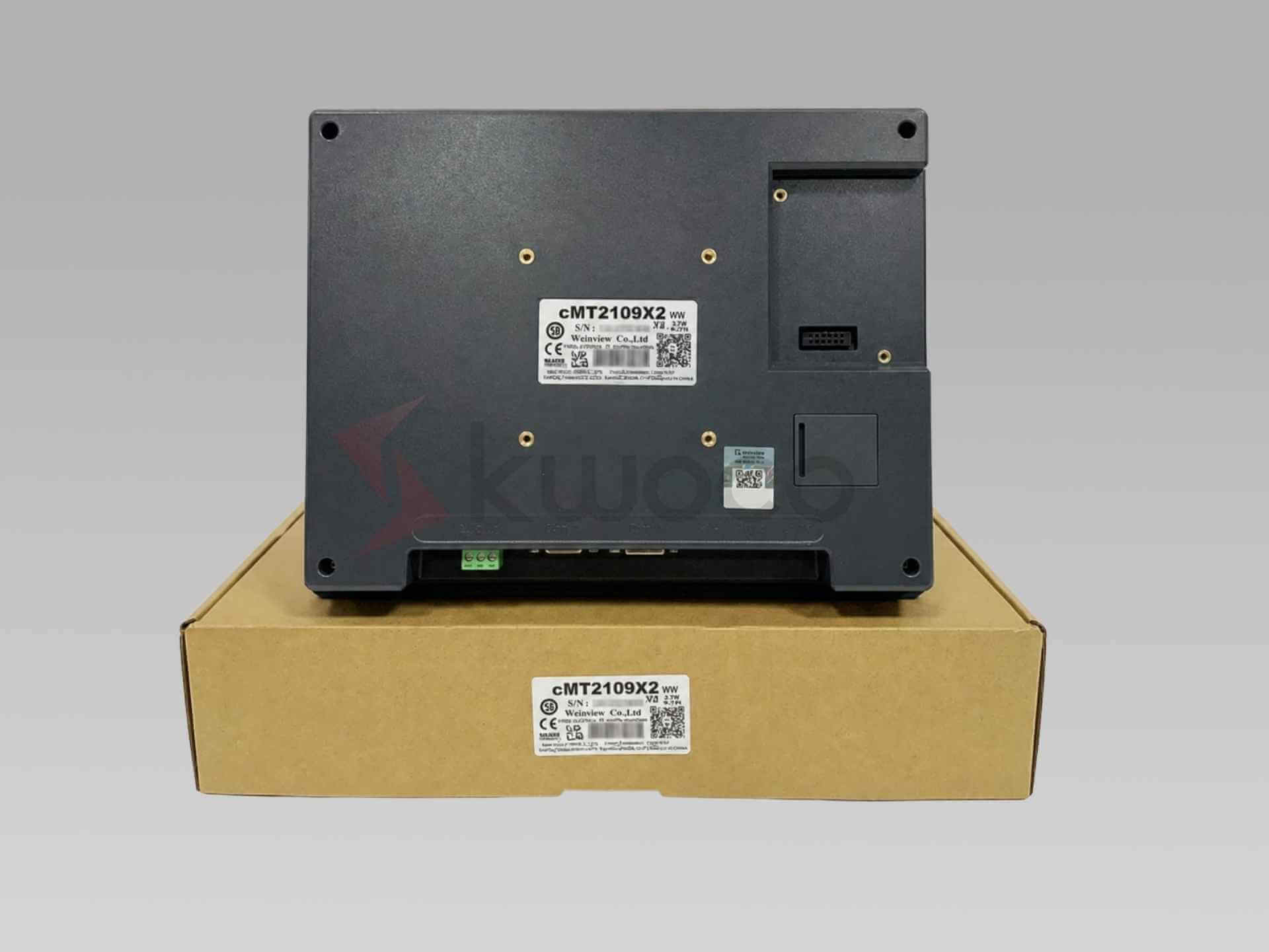

Product Photo & Shipment Notes
✓ Model and quantity will be checked before dispatch
✓ Packing photos and tracking number will be sent after shipment
Weinview cMT2109X2 10.1-Inch Gigabit HMI
The cMT2109X2 is a 10.1-inch Weinview flagship HMI with a 1024 x 600 wide-view display, quad-core RISC processor and dual Ethernet interfaces, including one Gigabit port, for responsive machine visualization and industrial data integration.
1-Year Product Warranty
KWOCO supplies only new original products. All products we sell are covered by a 1-year warranty. View warranty terms →
Tell us the model and quantity. We will quote the total cost to your destination.
Stock Available
Fast stock check and quick shipment for common industrial automation parts.
Global Shipping
Reliable delivery to the USA, Europe and other major industrial markets.
New Original Only
We supply new original products and confirm product condition before shipment.
Flexible Payment
T/T, PayPal and flexible terms can be discussed for qualified customers.
One-Stop Sourcing
PLC, HMI, servo, inverter, sensor, cable and spare parts sourcing support.
Weintek cMT2109X2 Basic Specifications
| Product Type | Touch Panel Human Machine Interface (HMI) |
|---|---|
| Model | cMT2109X2 |
| Series | Weinview cMT X Series, flagship model |
| Display | 10.1-inch WVA LCD, 1024 x 600 pixels, 16.7 million colors, 350 cd/m² brightness, 1000:1 contrast ratio, LED backlight |
| Touch Panel | 4-wire resistive touch panel; active-area accuracy: length (X) ±2%, width (Y) ±2% |
| Processor and Memory | Quad-core RISC processor, 1 GB RAM, 4 GB flash memory |
| Network and USB | LAN 1: 10/100/1000 Base-T x 1; LAN 2: 10/100 Base-T x 1; USB 2.0 Host x 1; no USB Client or SD card slot |
| Serial Interfaces | COM1 RS-232 4-wire; COM2 RS-485 2-wire/4-wire; COM3 selectable as RS-485 2-wire or RS-232 2-wire; no CAN Bus |
| Power Supply | 24 VDC ±20%, 1 A at 24 VDC, built-in power isolation, maximum startup peak current 2 A |
| Dimensions and Mounting | 271 x 213 x 38 mm; panel cutout 260 x 202 mm; approximately 1.2 kg; panel mounting or VESA 75 x 75 mm |
| Protection and Environment | NEMA4 / IP66-compliant front panel; operating temperature 0 to 50°C; 10% to 90% RH, non-condensing; installation altitude up to 3,000 m |
| Application | Machine visualization, operator control, production monitoring, industrial data integration and remote equipment management |
| Condition | New original product |
| Warranty | 12-month warranty from KWOCO |
About Weinview cMT2109X2 HMI
The cMT2109X2 is a Weinview cMT X-series flagship HMI designed for machine visualization, industrial communication and operator control. It is commonly used in production equipment and automation systems requiring responsive graphics, multiple communication ports and flexible network integration.
Key Features
- 10.1-inch wide-view display: Provides a 1024 x 600 interface with 16.7 million colors, a 1000:1 contrast ratio and wide viewing angles.
- Quad-core processing platform: Combines a quad-core RISC processor with 1 GB RAM and 4 GB flash memory for responsive HMI operation.
- Gigabit Ethernet connectivity: Includes one Gigabit Ethernet port and one 10/100 Base-T port for connecting machine and plant networks.
- Flexible serial communication: Provides RS-232 and RS-485 interfaces for PLCs, drives, controllers and other industrial devices.
- Optional wireless connection: Supports wireless networking through the separately purchased M02 WiFi expansion module.
- Expandable software functions: Supports optional EasyAccess 2.0, Weincloud Dashboard and CODESYS licensing for remote access and control applications.
- Industrial panel design: Features built-in power isolation, coated PCB protection and an IP66-compliant front panel when properly installed.
Matching Modules & One-Stop Sourcing
Complete your automation system with compatible Weintek components. KWOCO helps customers source PLC modules, power supply units, communication modules, cables and other industrial spare parts together.
Need a custom BOM or module not listed on this page?
Send us your part list and quantity. We will help check stock, price, lead time and shipping options for your order.
Trusted by Global Industrial Buyers
KWOCO supports overseas customers with new original automation parts, fast delivery, and reliable after-sales service for maintenance and project procurement.
USA Engineering Project Customer
Supplied Omron PLC modules and related automation parts for a project customer in the USA, supporting maintenance replacement and fast project delivery.
Japanese Listed Company Cooperation
Long-term cooperation with a Japanese listed company, supplying PLC spare parts and automation components for maintenance and replacement needs.
European Factory Customer
Provided Omron PLC modules and industrial automation parts for a European factory customer, helping reduce downtime and support production line maintenance.
After-Sales Service & Warranty
Warranty Support
All products are covered by a 12-month warranty from the date of delivery.
Return Support
Return or exchange support is available within 30 days for eligible products.
Technical Support
We help confirm product details and suggest suitable replacement models.
Fast Response
Our team responds quickly to quality, delivery, and after-sales questions.
Overseas Support
We support overseas buyers with automation spare-parts sourcing experience.
Frequently Asked Questions
Which EasyBuilder Pro version is required for the cMT2109X2?
The base cMT2109X2 requires the Simplified Chinese edition of EasyBuilder Pro V6.06.02 or later. For a unit labeled cMT2109X2 (V2), select the V2 model in EasyBuilder Pro and use V6.08.01 or later.
Does every cMT2109X2 support Siemens MPI communication?
No. Official documentation states that MPI at 187.5 kbit/s is enabled only on units whose product label includes (V2). On a V2 unit, COM2 or COM3 can provide two-wire RS-485 MPI communication, but only one of these ports can use MPI at a time.
Can COM1 and COM3 both operate as RS-232 ports?
Yes, but when COM3 is configured for RS-232, COM1 is limited to Tx and Rx signals and cannot use RTS/CTS hardware flow control.
Does the cMT2109X2 have built-in WiFi, an SD card slot or CAN Bus?
No. WiFi requires the optional M02 expansion module. The HMI does not include an SD card slot or CAN Bus interface, but it provides 4 GB internal flash memory and one USB Host port.
Are CODESYS and EasyAccess 2.0 included as standard?
No. CODESYS requires the optional RZ0CDS000 license, while EasyAccess 2.0 requires separate activation. Weincloud Dashboard is also listed as an optional service.
