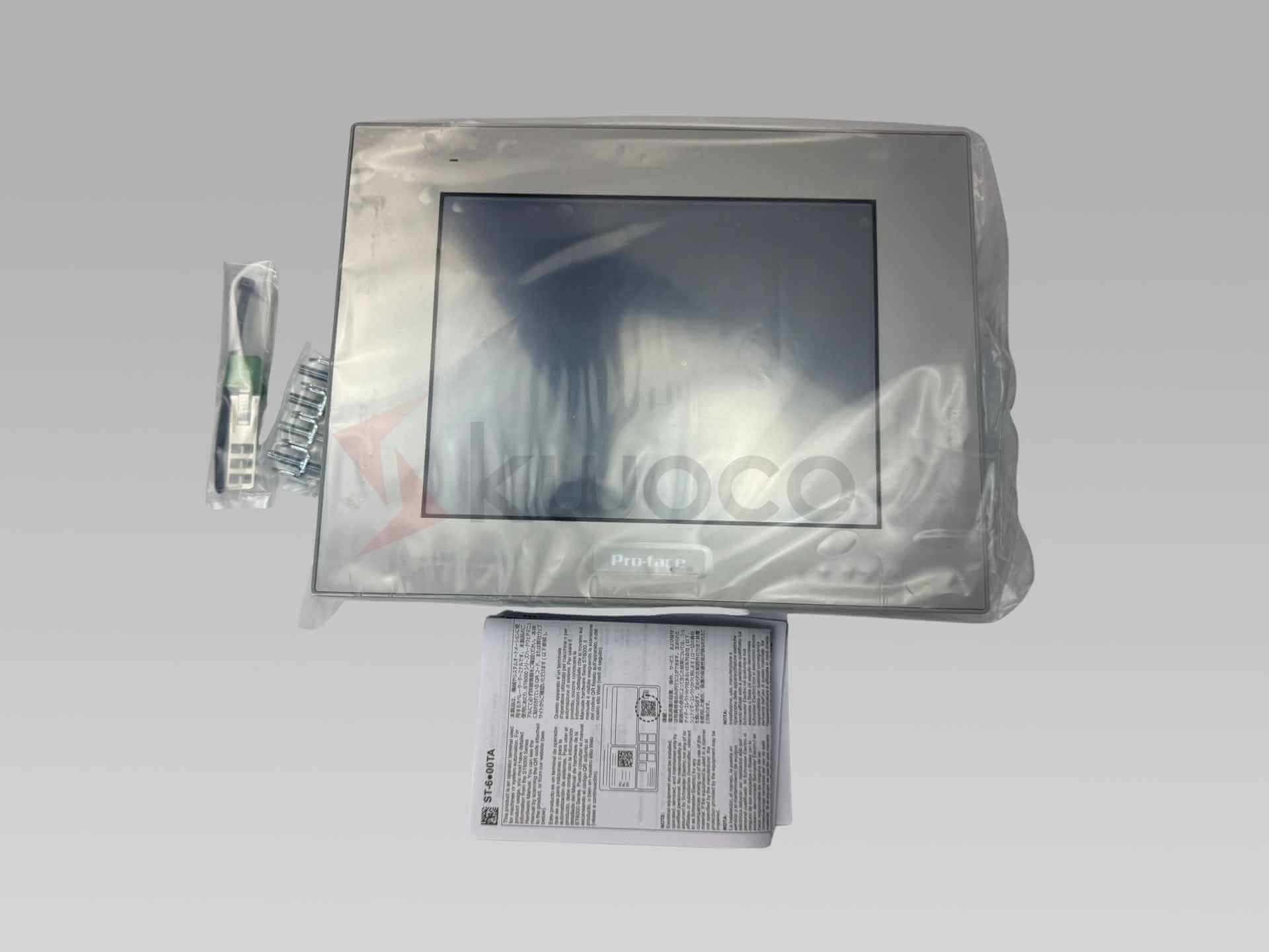

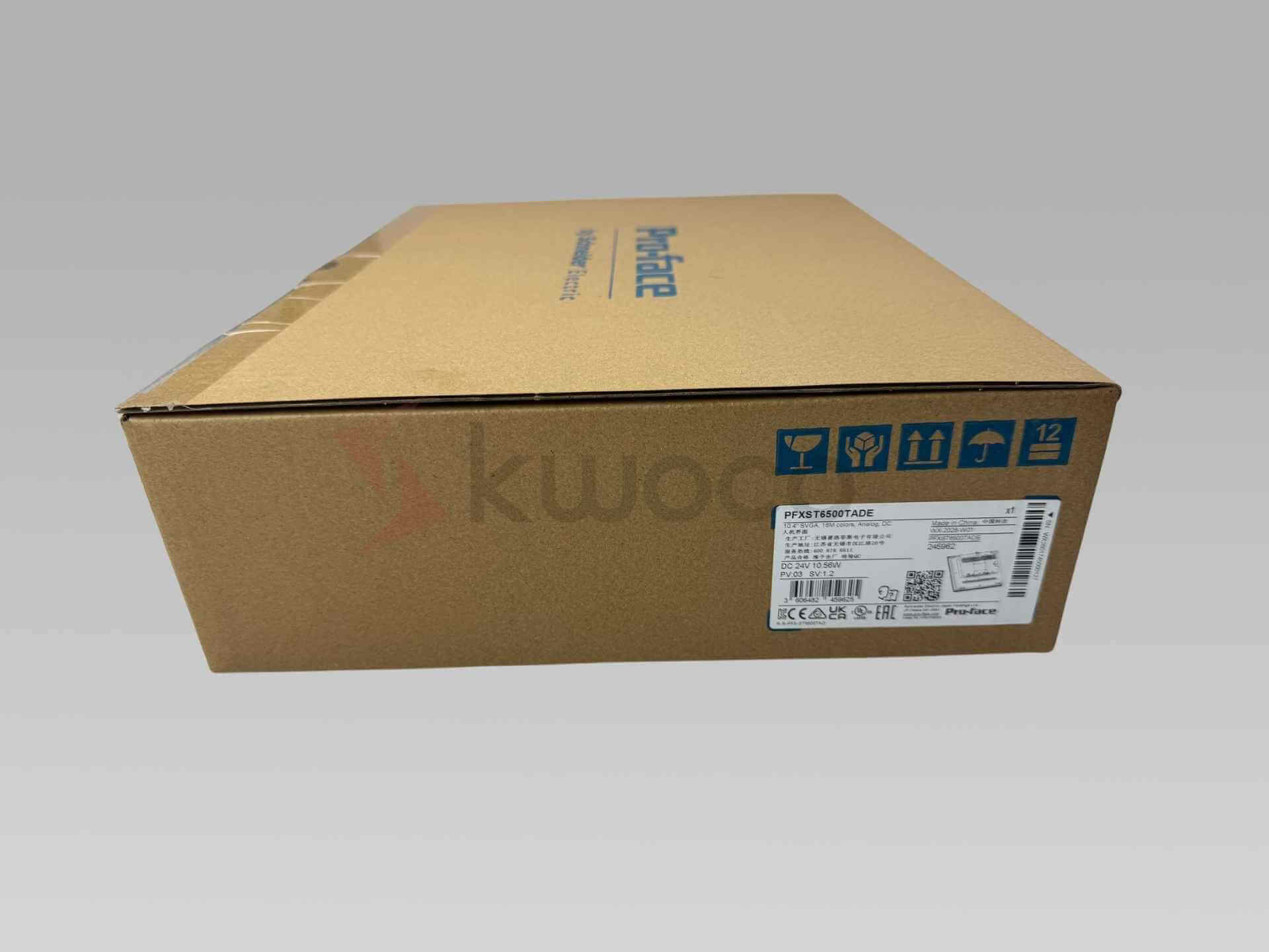

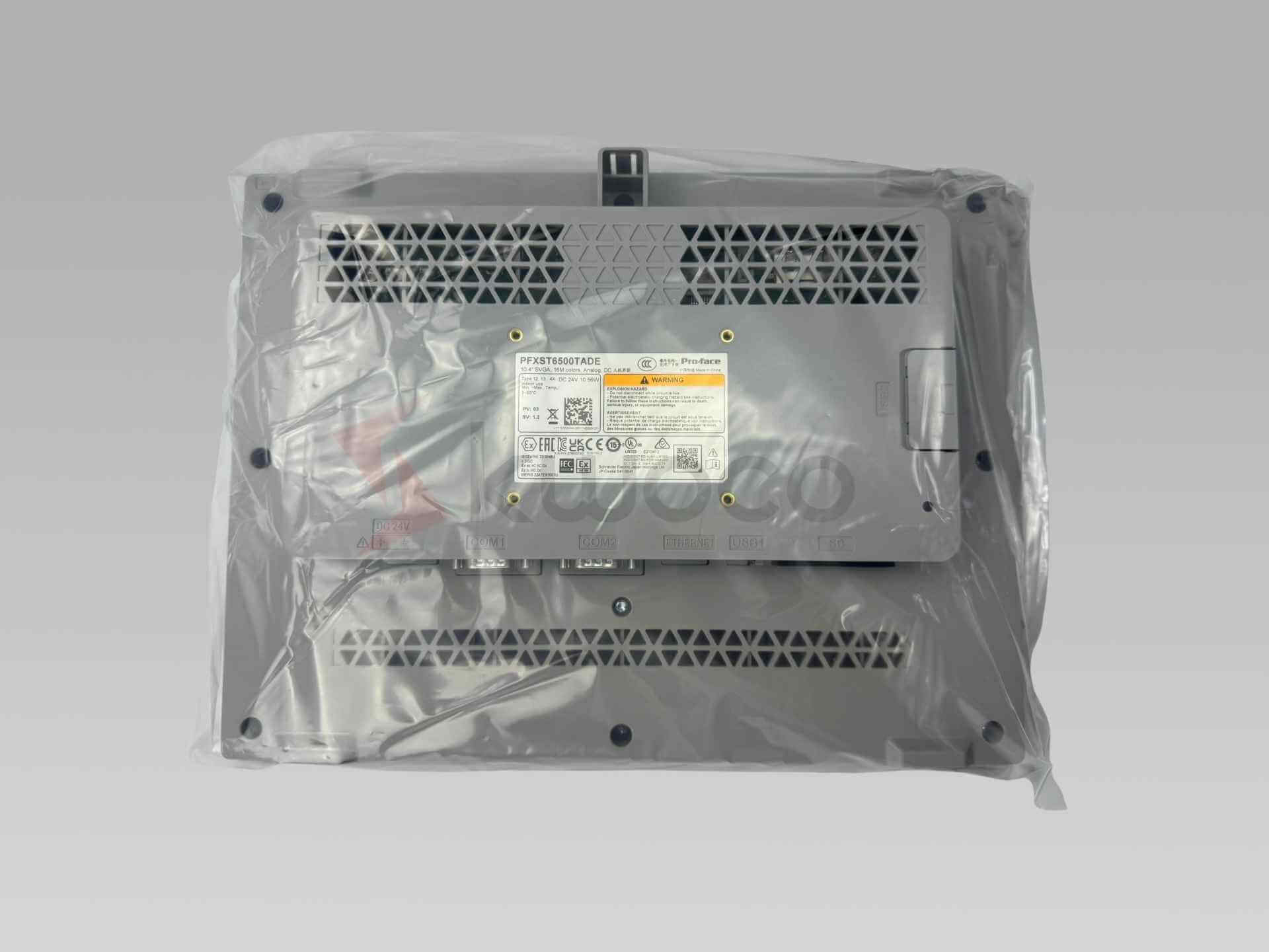

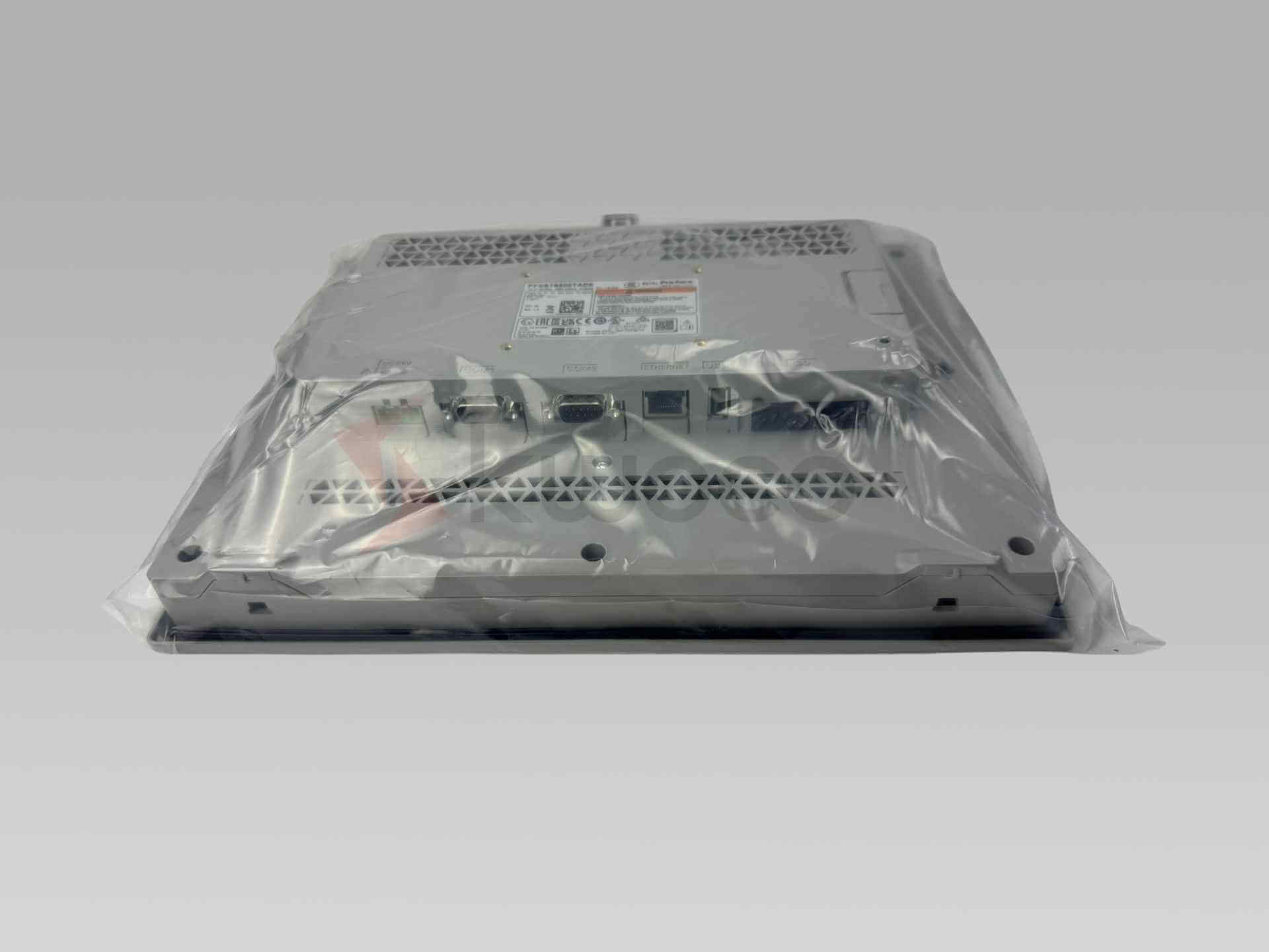

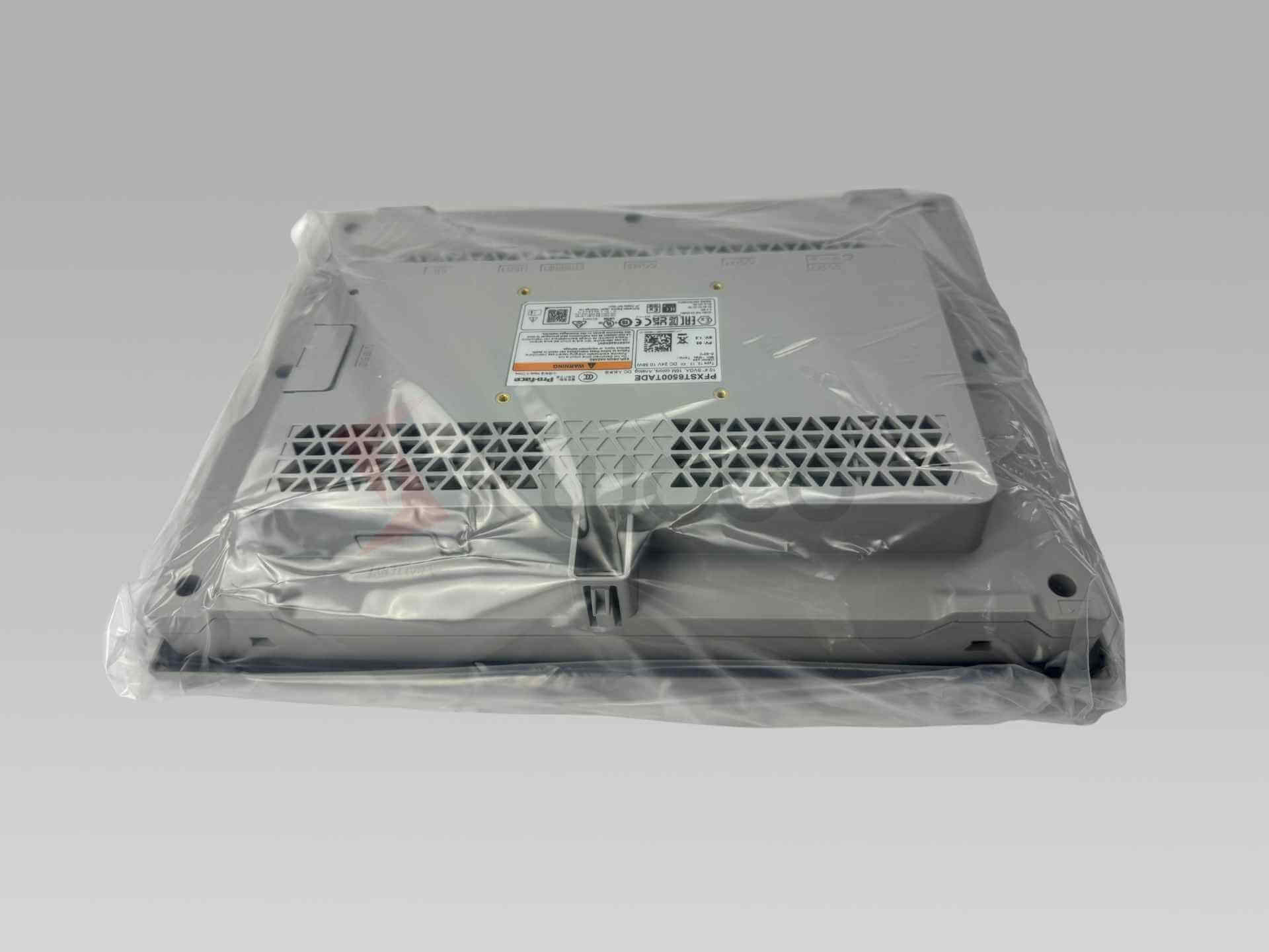

Product Photo & Shipment Notes
✓ Model and quantity will be checked before dispatch
✓ Packing photos and tracking number will be sent after shipment
Pro-face PFXST6500TADE 10.4-Inch GP-Pro EX HMI
The PFXST6500TADE is a 10.4-inch Pro-face ST6000 HMI with an 800 x 600 TFT display, analog resistive touch panel, dual serial ports, Ethernet and 24 VDC operation for machine visualization and operator control.
1-Year Product Warranty
KWOCO supplies only new original products. All products we sell are covered by a 1-year warranty. View warranty terms →
Tell us the model and quantity. We will quote the total cost to your destination.
Stock Available
Fast stock check and quick shipment for common industrial automation parts.
Global Shipping
Reliable delivery to the USA, Europe and other major industrial markets.
New Original Only
We supply new original products and confirm product condition before shipment.
Flexible Payment
T/T, PayPal and flexible terms can be discussed for qualified customers.
One-Stop Sourcing
PLC, HMI, servo, inverter, sensor, cable and spare parts sourcing support.
Pro-face PFXST6500TADE Basic Specifications
| Product Type | Programmable Human Machine Interface (HMI) |
|---|---|
| Model | PFXST6500TADE |
| Series | Pro-face ST6000 Series, ST-6500TA, GP-Pro EX model |
| Display | 10.4-inch TFT color LCD, 800 x 600 pixels (SVGA), 16 million colors, 211.2 x 158.4 mm effective display area |
| Touch Panel | Analog resistive film, single touch, 1,024 x 1,024 resolution, 1 million operations or more |
| Memory | 64 MB user data memory, 320 kB backup memory |
| Serial Interfaces | COM1: RS-232C; COM2: RS-422/485; D-Sub 9-pin plug, 2,400 to 115,200 bps; COM2 also supports 187,500 bps MPI |
| Ethernet, USB and Storage | 10BASE-T/100BASE-TX RJ45 x 1, USB 2.0 Type-A x 1, USB 2.0 micro-B x 1, SD card interface up to 32 GB |
| Power Supply | 24 VDC rated, 19.2 to 28.8 VDC input range, 10.56 W maximum power consumption, 30 A or less inrush current |
| Dimensions and Installation | 315 x 241 x 55.3 mm (W x H x D); panel cutout 301.5 (+1/-0) x 227.5 (+1/-0) mm; panel thickness 1.6 to 5 mm; weight 1.8 kg or less |
| Protection and Environment | IP65F front when properly installed in an enclosure, IP20 rear; operating temperature 0 to 50°C; 10% to 90% RH, non-condensing |
| Application | Machine visualization, operator control, PLC monitoring, production equipment modernization and HMI replacement |
| Condition | New original product |
| Warranty | 12-month warranty from KWOCO |
About Pro-face PFXST6500TADE 10.4-Inch HMI
The PFXST6500TADE is a Pro-face ST6000-series programmable HMI designed for machine visualization, equipment monitoring and operator control. It is commonly used in production machinery, control panels and HMI modernization projects where GP-Pro EX compatibility and multiple communication interfaces are required.
Key Features
- 10.4-inch SVGA display: Provides an 800 x 600 resolution and 16 million colors for clear machine graphics, alarms and operating information.
- Analog resistive touch panel: Supports dependable single-touch operation with a touch resolution of 1,024 x 1,024.
- GP-Pro EX engineering platform: The DE suffix identifies the 24 VDC GP-Pro EX model, supported by GP-Pro EX Ver. 4.09.400 or later.
- Dual serial communication: Includes a dedicated RS-232C port and an RS-422/485 port for connecting PLCs and other industrial devices.
- Ethernet and USB connectivity: Provides one 10BASE-T/100BASE-TX Ethernet port, one USB Type-A host port and one USB micro-B device port.
- SD card data storage: Supports SD cards up to 32 GB for project transfer, data storage and supported logging operations.
- Panel-ready construction: Uses a 24 VDC supply and offers IP65F front protection when correctly installed in a suitable enclosure.
Matching Modules & One-Stop Sourcing
Complete your automation system with compatible Proface components. KWOCO helps customers source PLC modules, power supply units, communication modules, cables and other industrial spare parts together.
Need a custom BOM or module not listed on this page?
Send us your part list and quantity. We will help check stock, price, lead time and shipping options for your order.
Trusted by Global Industrial Buyers
KWOCO supports overseas customers with new original automation parts, fast delivery, and reliable after-sales service for maintenance and project procurement.
USA Engineering Project Customer
Supplied Omron PLC modules and related automation parts for a project customer in the USA, supporting maintenance replacement and fast project delivery.
Japanese Listed Company Cooperation
Long-term cooperation with a Japanese listed company, supplying PLC spare parts and automation components for maintenance and replacement needs.
European Factory Customer
Provided Omron PLC modules and industrial automation parts for a European factory customer, helping reduce downtime and support production line maintenance.
After-Sales Service & Warranty
Warranty Support
All products are covered by a 12-month warranty from the date of delivery.
Return Support
Return or exchange support is available within 30 days for eligible products.
Technical Support
We help confirm product details and suggest suitable replacement models.
Fast Response
Our team responds quickly to quality, delivery, and after-sales questions.
Overseas Support
We support overseas buyers with automation spare-parts sourcing experience.
Frequently Asked Questions
Which programming software and version are required for the PFXST6500TADE?
This is the GP-Pro EX version of the ST-6500TA. Pro-face specifies GP-Pro EX Ver. 4.09.400 or later for this model.
Can the PFXST6500TADE replace the PFXGP4501TADW?
Pro-face lists the PFXST6500TADE as a recommended substitute for the PFXGP4501TADW, and both use a 301.5 x 227.5 mm panel cutout. However, the project must be converted in GP-Pro EX, the resolution changes from 640 x 480 to 800 x 600, and the USB device connector changes from mini-B to micro-B. Existing serial cables, accessories and screen layouts should therefore be checked before installation.
Does the PFXST6500TADE support multitouch operation?
No. It uses a single-touch analog resistive panel. Touching multiple points may be interpreted as a touch at their center position, so applications should not rely on simultaneous touch operation.
What SD card capacity can be used with the PFXST6500TADE?
The integrated SD card interface supports capacities up to 32 GB. SD card access should be stopped before removing the card, and important data should be backed up regularly.
Is the entire PFXST6500TADE protected to IP65F?
No. IP65F applies to the front face when the HMI is correctly installed in a solid enclosure using the specified gasket and mounting procedure. The rear section is rated IP20.
