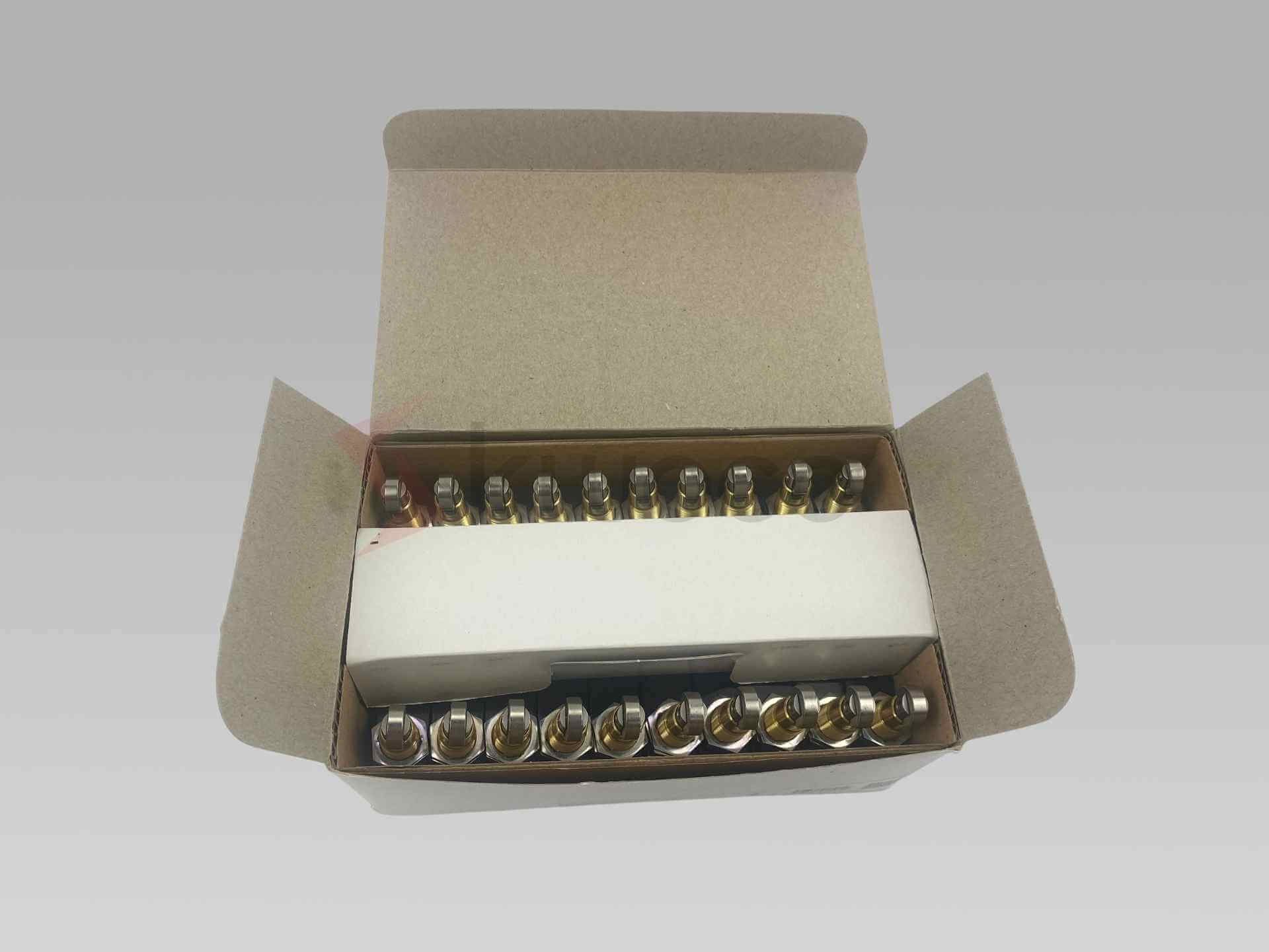

Product Photo & Shipment Notes
✓ Model and quantity will be checked before dispatch
✓ Packing photos and tracking number will be sent after shipment

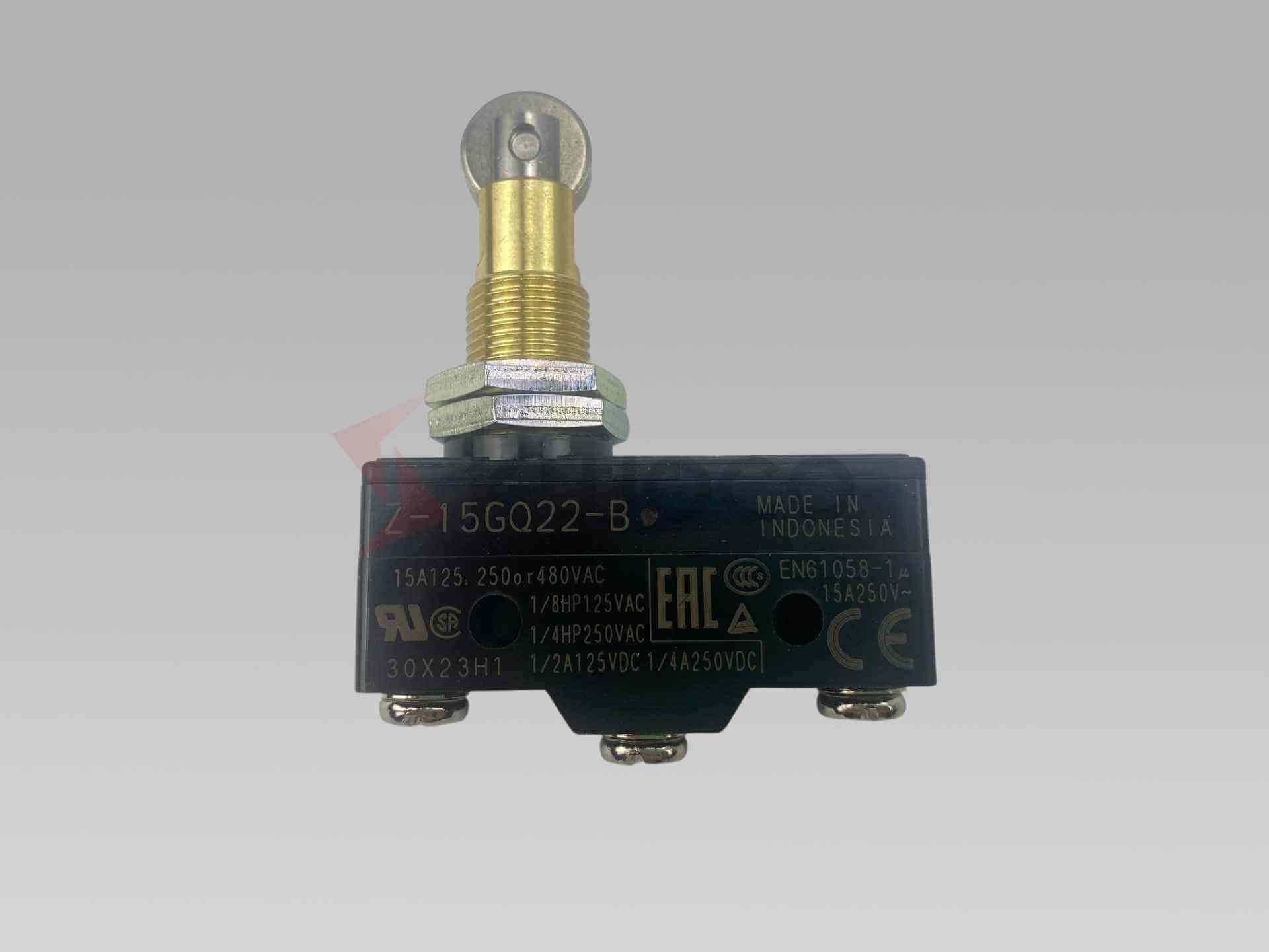

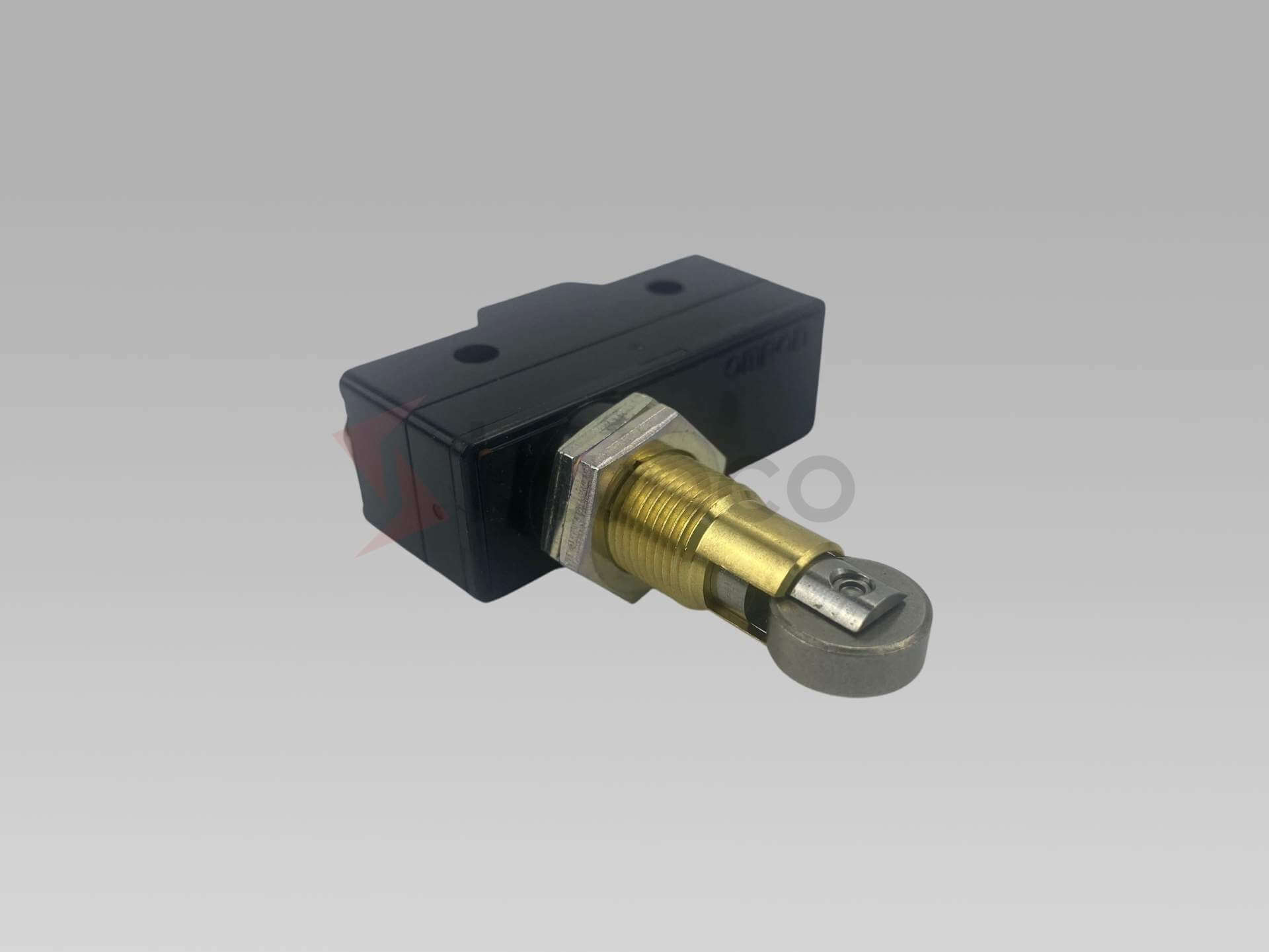

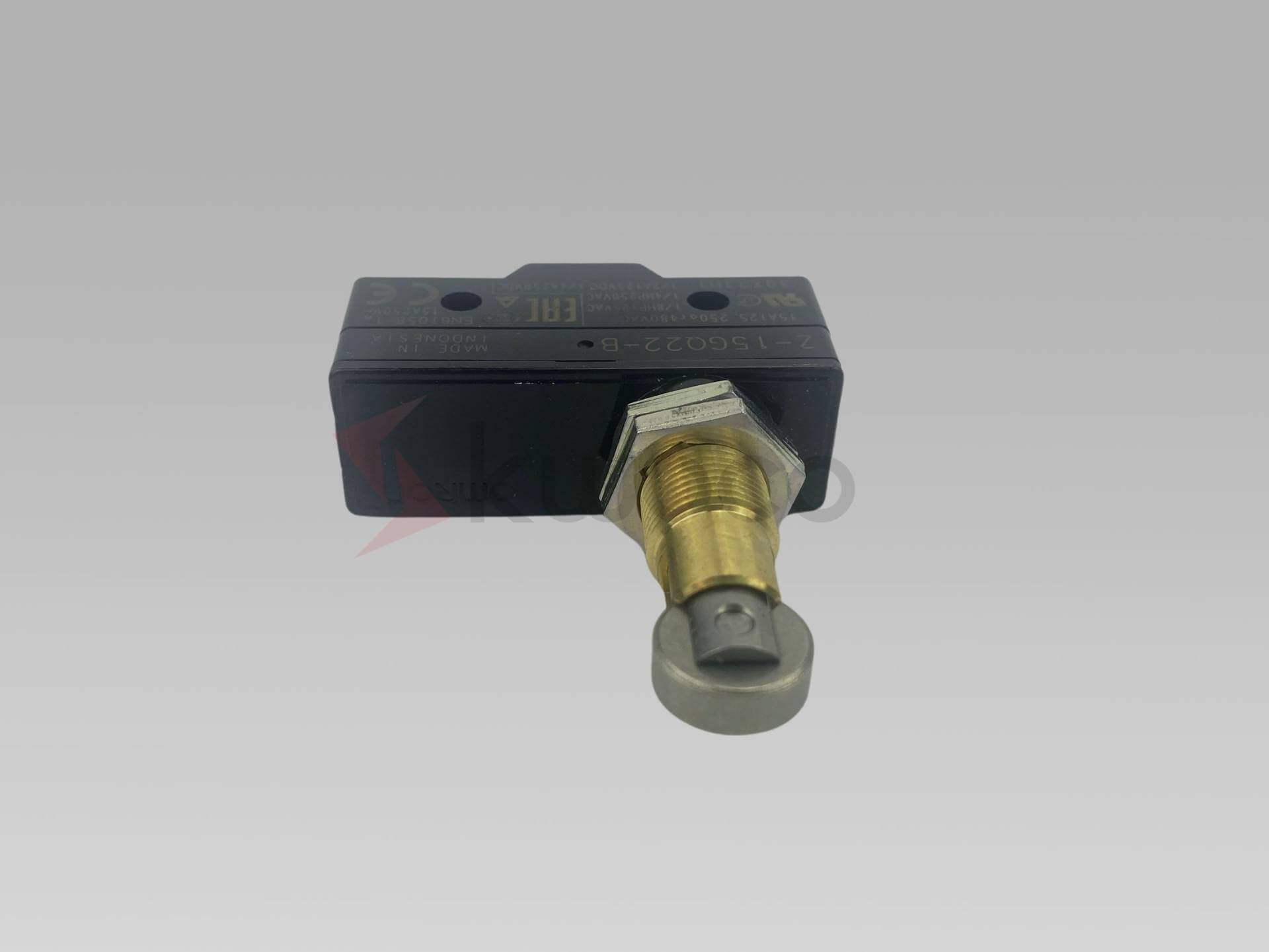

Omron Z-15GQ22-B 15A Roller Plunger Basic Switch
The Z-15GQ22-B is a 15 A general-purpose basic switch featuring a panel-mount stainless steel roller plunger, SPDT contact configuration and M4 screw terminals for reliable position detection in industrial equipment.
1-Year Product Warranty
KWOCO supplies only new original products. All products we sell are covered by a 1-year warranty. View warranty terms →
Tell us the model and quantity. We will quote the total cost to your destination.
Stock Available
Fast stock check and quick shipment for common industrial automation parts.
Global Shipping
Reliable delivery to the USA, Europe and other major industrial markets.
New Original Only
We supply new original products and confirm product condition before shipment.
Flexible Payment
T/T, PayPal and flexible terms can be discussed for qualified customers.
One-Stop Sourcing
PLC, HMI, servo, inverter, sensor, cable and spare parts sourcing support.
Omron Z-15GQ22-B Basic Specifications
| Product Type | General-purpose Basic Switch |
|---|---|
| Model | Z-15GQ22-B |
| Series | Omron Z Series, Standard General-purpose Model |
| Actuator | Panel-mount roller plunger; φ12.7 × 4.8 mm stainless steel roller |
| Contact Configuration | SPDT (1c), silver rivet contacts; 0.5 mm standard contact gap |
| Terminal Type | M4 screw terminals |
| Rated Current | 15 A |
| Resistive Load Rating | 15 A at 125/250 VAC; 10 A at 500 VAC; 15 A at 8/14 VDC; 6 A at 30 VDC; 0.5 A at 125 VDC; 0.25 A at 250 VDC |
| Operating Characteristics | OF: 2.45 to 3.43 N; RF: 1.12 N minimum; PT: 0.4 mm maximum; OT: 3.58 mm minimum; MD: 0.05 mm maximum |
| Operating Position | 32.2 to 34.6 mm |
| Operating Speed and Frequency | 0.01 mm/s to 1 m/s; mechanical: 240 operations/min maximum; electrical: 20 operations/min maximum |
| Durability | 10,000,000 operations minimum mechanically; 500,000 operations minimum electrically |
| Protection and Environment | IP00; -25 to 80°C without icing; 35% to 85% RH |
| Application | Machine position detection, travel limiting, mechanism monitoring and industrial equipment control |
| Condition | New original product |
| Warranty | 12-month warranty from KWOCO |
About Omron Z-15GQ22-B Roller Plunger Basic Switch
The Z-15GQ22-B is an Omron Z-series general-purpose basic switch designed for mechanical position detection and travel-limit control. Its panel-mount roller plunger accommodates moving machine parts, while the 15 A switching capacity and SPDT contacts support a wide range of industrial control circuits.
Key Features
- Panel-mount roller plunger: Uses a φ12.7 × 4.8 mm stainless steel roller for actuation by moving machine components.
- 15 A switching capacity: Supports general-load switching in industrial control and machine-monitoring circuits.
- SPDT contact arrangement: Provides normally open, normally closed and common terminals for flexible circuit design.
- M4 screw connections: Enables secure field wiring and convenient maintenance without soldered connections.
- Defined operating movement: Features a maximum pretravel of 0.4 mm and a minimum overtravel of 3.58 mm for controlled mechanical actuation.
- Long mechanical durability: Rated for at least 10 million mechanical operations under the manufacturer’s specified test conditions.
- Wide operating temperature range: Operates from -25 to 80°C in environments without icing.
Installation Note
The Z-15GQ22-B has an IP00 open construction and is not a drip-proof or sealed switch. Appropriate enclosure protection must be provided where dust, moisture or accidental terminal contact is possible. Omron also specifies that the M12 panel-mount thread and the switch-body mounting holes must not be used simultaneously.
