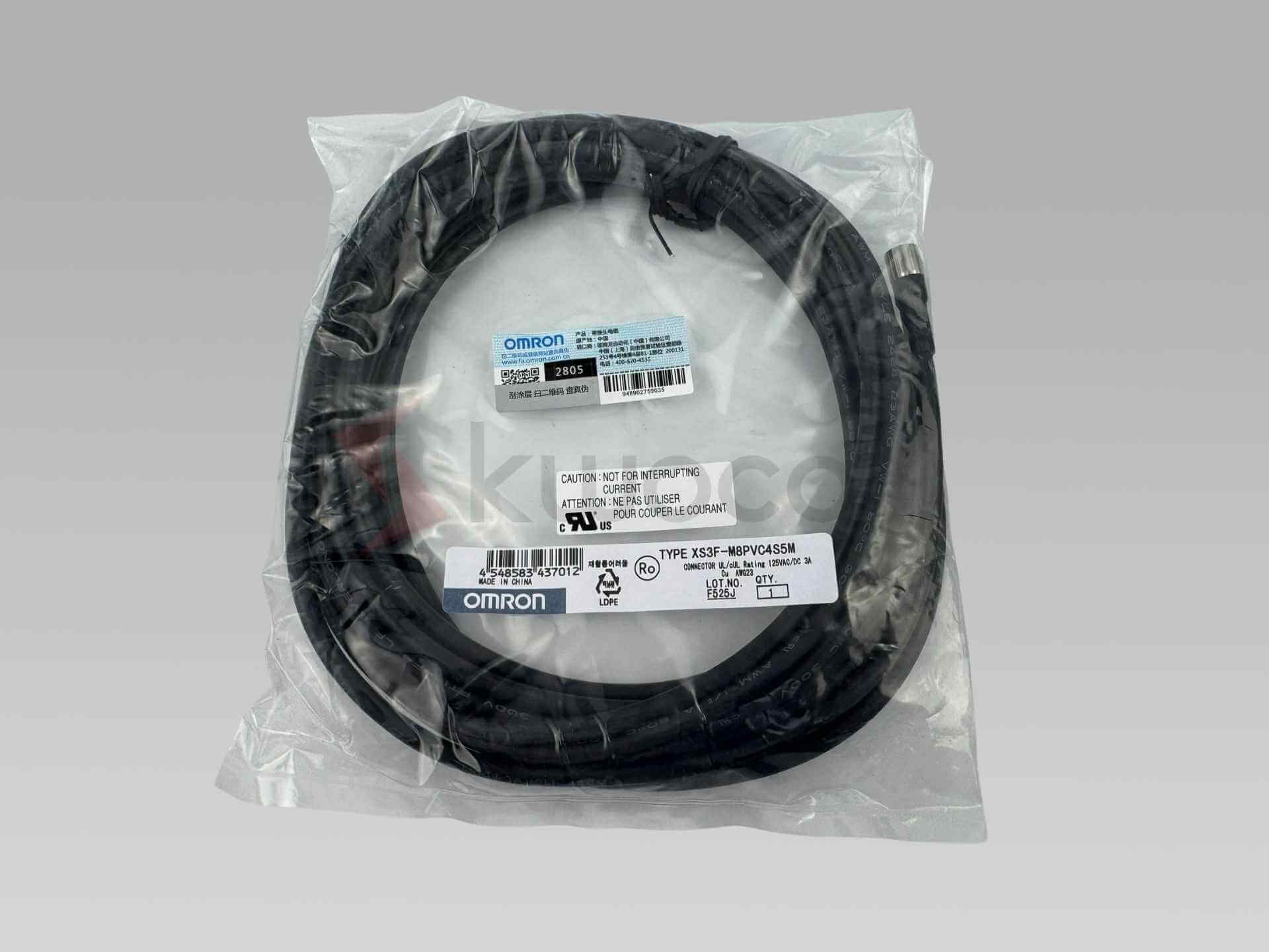

Omron XS3F-M8PVC4S5M 5 m M8 Sensor Connection Cable
The XS3F-M8PVC4S5M is a compact 5 m sensor connection cable with a straight M8 female socket, four color-coded conductors and an open cable end, providing reliable IP67 connectivity for sensors and industrial automation equipment.
1-Year Product Warranty
KWOCO supplies only new original products. All products we sell are covered by a 1-year warranty. View warranty terms →
Tell us the model and quantity. We will quote the total cost to your destination.
Stock Available
Fast stock check and quick shipment for common industrial automation parts.
Global Shipping
Reliable delivery to the USA, Europe and other major industrial markets.
New Original Only
We supply new original products and confirm product condition before shipment.
Flexible Payment
T/T, PayPal and flexible terms can be discussed for qualified customers.
One-Stop Sourcing
PLC, HMI, servo, inverter, sensor, cable and spare parts sourcing support.
Omron XS3F-M8PVC4S5M Basic Specifications
| Product Type | Sensor I/O Connector Cable |
|---|---|
| Model | XS3F-M8PVC4S5M |
| Series | Omron XS3F-M8 Series |
| Connector Configuration | Straight M8 female socket to open cable end |
| Fastening and Standard | M8 × 1 screw connection; based on IEC 61076-2-104 |
| Number of Contacts | 4 poles, 4 conductors |
| Cable Specifications | Black flame-retardant PVC cable, 5 m length, 5 mm outer diameter, AWG23 (0.25 mm²) |
| Wiring | Pin 1: Brown; Pin 2: White; Pin 3: Blue; Pin 4: Black |
| Rated Voltage and Current | 125 VDC, 1 A |
| Electrical Performance | 40 mΩ maximum contact resistance; 1,000 MΩ minimum insulation resistance; 1,000 VAC dielectric strength for 1 minute |
| Mechanical Performance | 200 mating operations; cable tensile strength 49 N for 15 seconds |
| Protection and Environment | IP67 according to IEC 60529; -10 to 80°C; 20% to 85% RH |
| Condition | New original product |
| Warranty | 12-month warranty from KWOCO |
About Omron XS3F-M8PVC4S5M M8 Sensor Connection Cable
The XS3F-M8PVC4S5M is an Omron XS3F-series sensor connection cable designed to connect compatible M8 sensors and actuators to machine-control wiring. It is commonly used in compact automation equipment where a preassembled connector, extended cable reach and dependable environmental protection are required.
Key Features
- Compact M8 connection: Provides a straight four-pole M8 female socket for compatible sensors and industrial devices.
- Four-conductor wiring: Uses clearly identified brown, white, blue and black leads to simplify field termination.
- Five-metre cable length: Provides additional installation reach between sensors, junction boxes and control equipment.
- Industrial electrical rating: Supports a rated voltage of 125 VDC and a maximum rated current of 1 A.
- IP67 connector protection: Helps protect the correctly connected interface against dust and temporary water exposure.
- Flame-retardant PVC construction: Uses a black 5 mm-diameter PVC cable with AWG23 conductors for standard factory environments.
- Preassembled open-end design: Reduces connector assembly work while allowing the free cable end to be wired according to the application.
Installation Note: Tighten the M8 threaded bracket by hand to approximately 0.2 N·m. Omron states that the IP67 rating does not make the connector fully watertight, so it must not be used underwater. This standard PVC version is also not rated as oil-resistant.
