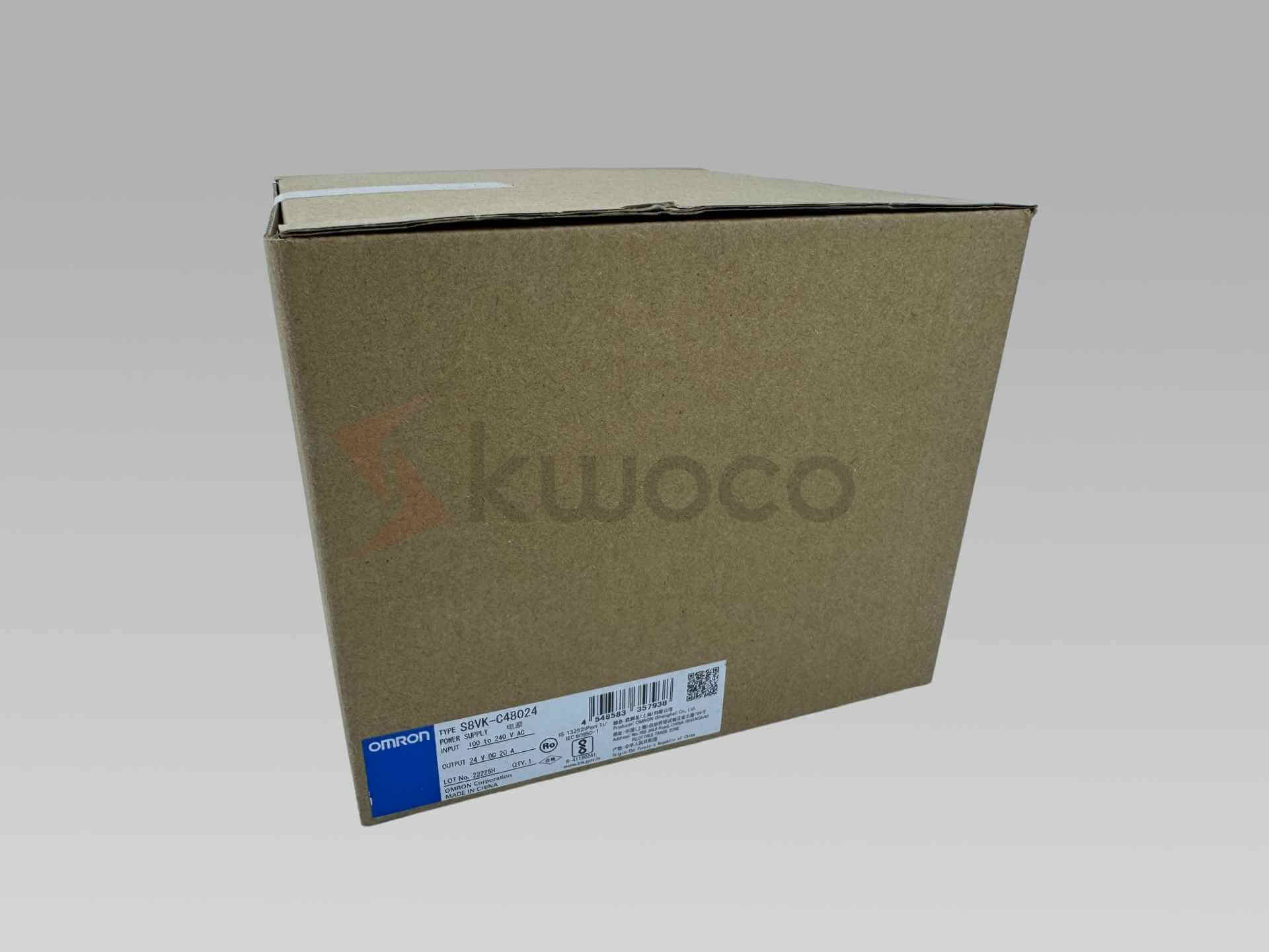

Product Photo & Shipment Notes
✓ Model and quantity will be checked before dispatch
✓ Packing photos and tracking number will be sent after shipment
Omron S8VK-C48024 480 W 24 VDC DIN-rail Power Supply
The S8VK-C48024 is a compact 480 W DIN-rail power supply delivering 24 VDC at 20 A from universal single-phase AC or DC input, with 91% typical efficiency, adjustable output, and built-in overload and overvoltage protection.
1-Year Product Warranty
KWOCO supplies only new original products. All products we sell are covered by a 1-year warranty. View warranty terms →
Tell us the model and quantity. We will quote the total cost to your destination.
Stock Available
Fast stock check and quick shipment for common industrial automation parts.
Global Shipping
Reliable delivery to the USA, Europe and other major industrial markets.
New Original Only
We supply new original products and confirm product condition before shipment.
Flexible Payment
T/T, PayPal and flexible terms can be discussed for qualified customers.
One-Stop Sourcing
PLC, HMI, servo, inverter, sensor, cable and spare parts sourcing support.
Omron S8VK-C48024 Basic Specifications
| Product Type | Switch Mode Power Supply |
|---|---|
| Model | S8VK-C48024 |
| Series | Omron S8VK-C Series |
| Input | Single-phase 100 to 240 VAC, 50/60 Hz; 90 to 350 VDC; allowable AC range 85 to 264 VAC |
| Rated Output | 24 VDC, 20 A, 480 W |
| Efficiency and Input Characteristics | 91% typical at 230 VAC; input current 4.8 A at 115 VAC or 2.4 A at 230 VAC; power factor 0.97 typical at 230 VAC |
| Output Adjustment and Ripple | -10% to +15% with V.ADJ; ripple 130 mV typical at 230 VAC |
| Protection Functions | Overload protection at 105% to 160% of rated current; overvoltage protection |
| Series and Parallel Operation | Series operation possible with up to two power supplies and an external diode; parallel operation not supported |
| Startup and Hold Time | Startup: 770 ms typical at 115 VAC or 670 ms at 230 VAC; hold time: 21 ms or 22 ms respectively |
| Mounting and Connection | DIN-rail mounting; screw terminals; green DC ON output indicator; IP20 |
| Environment and Dimensions | Operating temperature -25 to 60°C with derating; 95 × 125 × 140 mm; approximate weight 1,550 g |
| Condition | New original product |
| Warranty | 12-month warranty from KWOCO |
About Omron S8VK-C48024 Power Supply
The S8VK-C48024 is an Omron S8VK-C-series switch mode power supply designed to convert universal single-phase AC or high-voltage DC input into a regulated 24 VDC supply. Its 480 W output capacity is suitable for industrial control panels, PLC systems, relays, sensors, actuators, and other 24 VDC automation equipment.
Key Features
- 480 W output capacity: Delivers a rated 24 VDC output at 20 A for control systems with higher DC power requirements.
- Universal input support: Accepts 100 to 240 VAC or 90 to 350 VDC for use across different industrial power systems.
- High operating efficiency: Achieves 91% typical efficiency at 230 VAC, helping reduce internal heat generation.
- Adjustable output voltage: Provides a guaranteed adjustment range from -10% to +15% using the front V.ADJ control.
- Integrated output protection: Includes overload and overvoltage protection for the power supply and connected equipment.
- Flexible series connection: Supports series operation with up to two units when the required external diode is installed.
- DIN-rail installation: Uses a compact book-style enclosure with screw terminals for organized control-panel mounting.
For DC input operation, Omron specifies a 0.7 load-derating factor for this model. With standard mounting, derate the load by 2%/°C above 40°C. At AC input voltages below 90 VAC, apply an additional derating of 2.5%/V. Parallel operation is not supported.
