Omron E5CC-RX2ASM-800 Digital Temperature Controller
Digital temperature controller with a high-visibility white LCD display, 100 to 240 VAC power supply, one relay output, and two auxiliary outputs.
* Need more details? Our team is ready to help – just ask!
Key Features and Technical Specifications

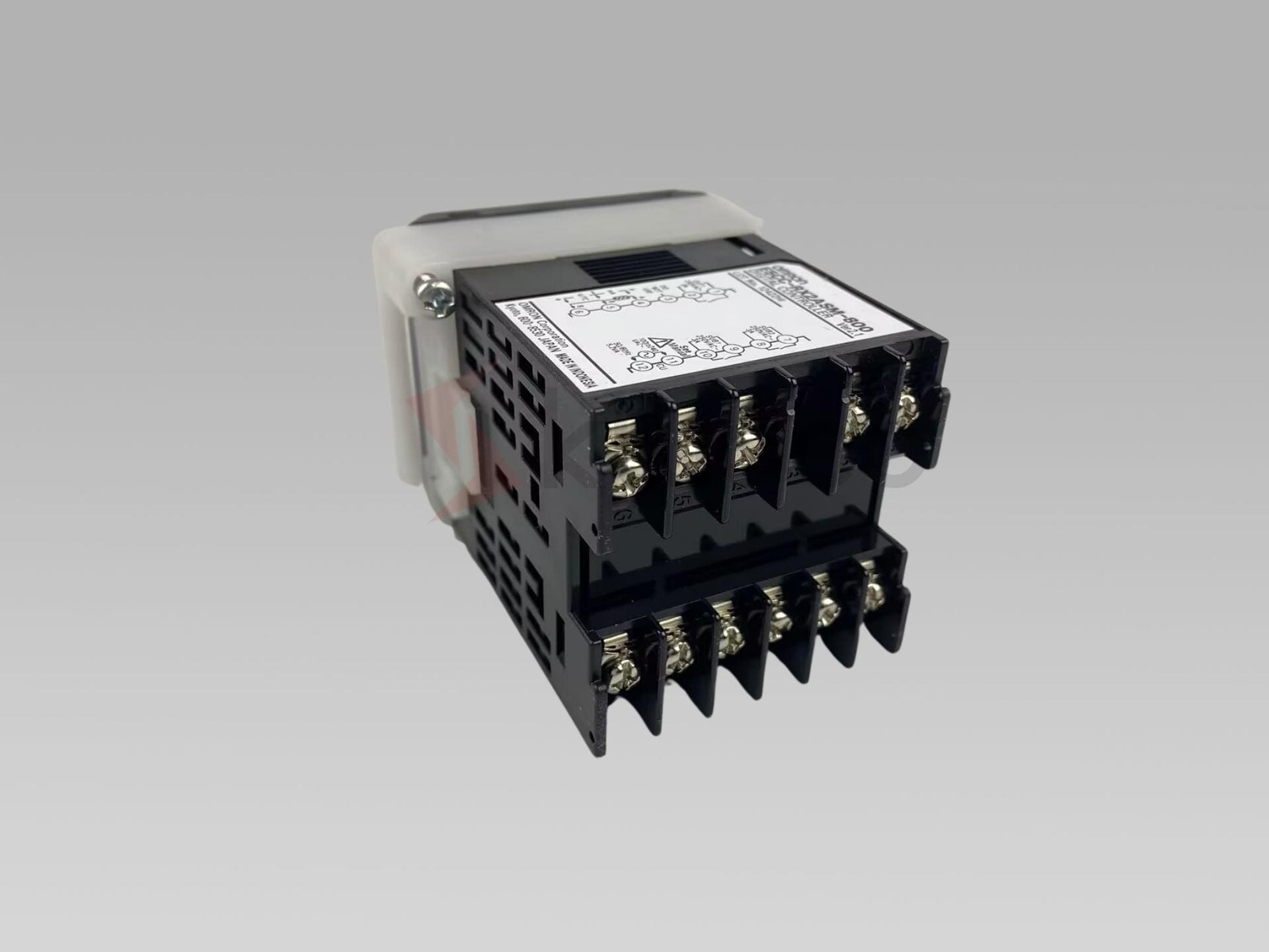

The E5CC-RX2ASM-800 simplifies your process by combining high-speed sampling with a user-friendly interface. It features a dependable relay output (SPST-NO, 3 A resistive load) and operates on a flexible 100-240VAC power supply. The design includes options for models with screw terminal blocks and models with push-in plus terminal blocks, which help create terminal blocks for reduced wiring. This makes installation faster and your control panels neater.
| Specification | Details |
|---|---|
| Model | E5CC-RX2ASM-800 |
| Power Supply Voltage | 100 to 240 VAC, 50/60 Hz |
| Operating Voltage Range | 85% to 110% of rated supply voltage |
| Control Output 1 | Relay output: SPST-NO, 250 VAC, 3 A (resistive load) |
| Auxiliary Outputs | 2 relay outputs |
| Sensor Input | Universal (Thermocouple, Pt, Analog current/voltage) |
| Control Method | ON/OFF control or 2-PID control (with auto-tuning) |
| Indication Accuracy | Thermocouple: ±0.3% of PV. Pt input: ±0.2% of PV |
| Sampling Period | 50 ms |
| Ambient Operating Temperature | -10 to 55°C (with no condensation or icing) |
| Dimensions (H x W x D) | 48 x 48 x 60 mm |

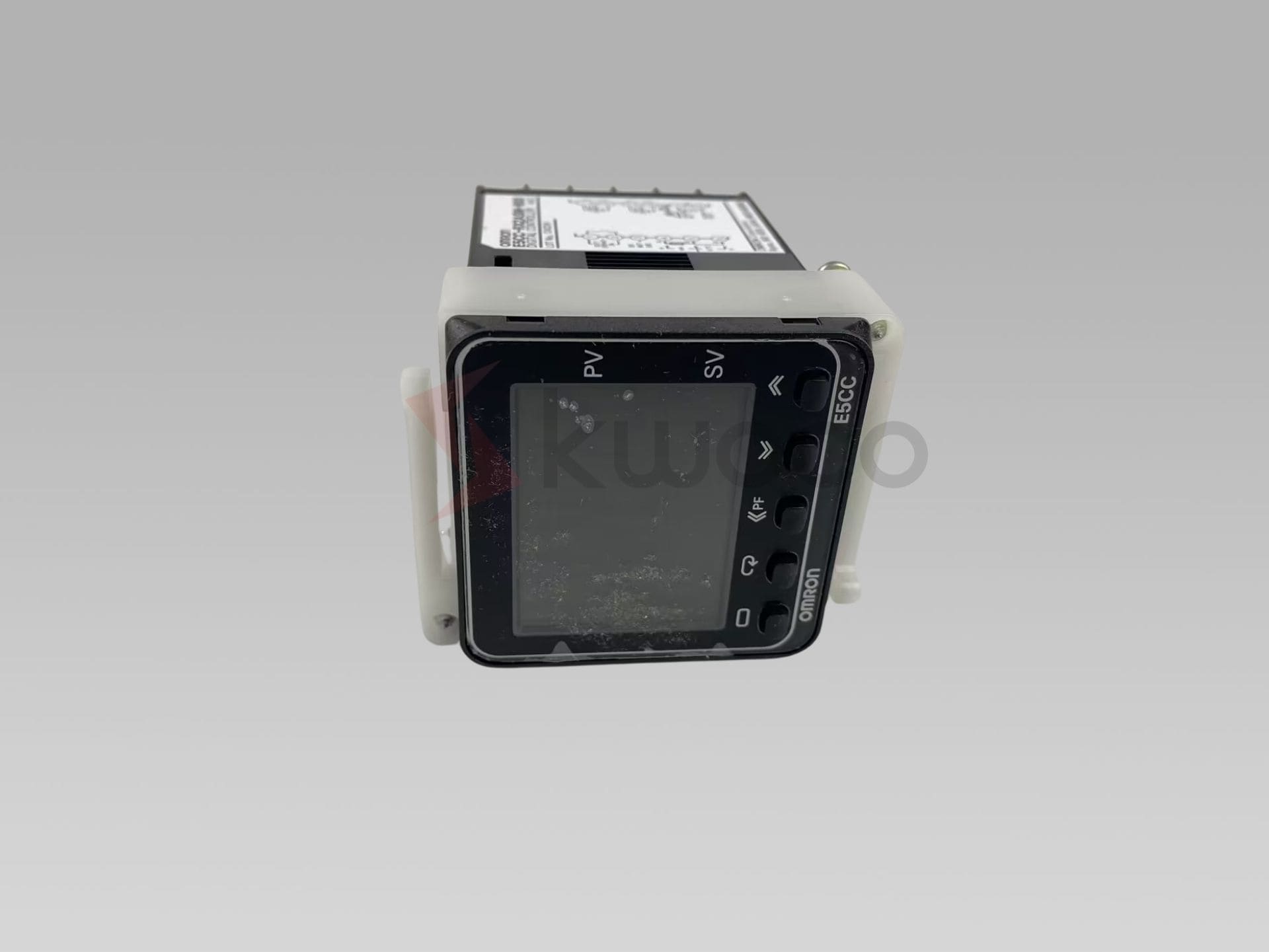

Large White PV Display: Easier to Read, Quicker to Set
The Omron E5CC-RX2ASM-800 with a large white PV display. The 15.2 mm high characters provide exceptional visibility, which means your operators can check the process value at a glance, reducing the chance of errors and improving operational efficiency. This feature makes the entire process, from selection to setup and operation, much smoother.
Simplified Setup and Operation for Industrial Automation
The E5CC-800 series forgets about spending hours deciphering complex manuals. This digital temperature controller guides you from model selection to setup, ensuring you are up and running in no time. The simple key layout and clear parameter displays allow for quick changes on the fly.
Flexible Control with Reliable Relay Output
At the heart of any temperature controller is its ability to manage the process effectively. The E5CC-RX2ASM-800 provides robust control with a reliable relay output. This SPST-NO (Single Pole, Single Throw – Normally Open) relay is rated for 3 A at 250 VAC for a resistive load, making it suitable for a wide variety of heating elements and other equipment.
Versatile Sensor Input Range for Any Application
To achieve precise control, a temperature controller must be compatible with a wide range of sensors. The Omron E5CC-RX2ASM-800 excels in this area by offering a universal sensor input. It supports various thermocouples (K, J, T, E, L, U, N, R, S, B), platinum resistance thermometers (Pt100, JPt100), and analog current/voltage inputs.
Frequently Asked Questions
The E5CC-RX2ASM-800 features a universal input that is compatible with a wide variety of sensors, including thermocouples (Types K, J, T, R, etc.), platinum resistance thermometers (Pt100), and analog current/voltage signals.
This temperature controller operates on a flexible power supply of 100 to 240 VAC, making it suitable for use in various regions and industrial environments without needing a transformer.
No, the E5CC-800 series is designed to be very easy to use. It features an intuitive menu, a large, clear display, and options like Push-In Plus terminal blocks for reduced wiring work to simplify installation.
Yes, it offers easy connections to a PLC through programless communications. This allows for straightforward integration into a larger automation and control system for centralized monitoring and management.
