Key Features and Technical Specifications
This sensor from the trusted TL-N series offers a stable sensing range 10mm in a compact block body. With its durable ABS housing and IP67 rating, this Omron sensor is built for tough industrial environments.
Attribute | Specification |
---|---|
Model | TL-N10ME1 2M |
Sensing Head Size | 30 x 30.5 x 52.5 mm |
Type | Square type, Unshielded |
Sensing Method | Inductive |
Sensing Distance | 10 mm |
Output Configuration | NPN, Normally Open (NO) |
Power Supply Voltage | 12 to 24 VDC (10 to 30 VDC) |
Connection Method | Pre-wired Cable (2 meters) |
Response Frequency | 500 Hz max. |
Housing Material | Heat-resistant ABS |
Protection Rating | IP67 (Oil-resistant) |
Mounting Bracket | Included (Zinc-plated iron) |
Robust Rectangular Body Design for Harsh Industrial Automation
The Omron TL-N series features a strong rectangular body made of durable plastic and ABS housing. This design protects the sensitive parts inside from vibration, dust, and impacts. It’s built for the real world of industrial automation.
Superior Sensing Range: The 10mm Advantage of the Unshielded Proximity Sensor
This unshielded inductive proximity sensor provides an excellent sensing distance. With a stable range of 10 mm, it gives you flexibility in how you mount it. The non-embeddable design allows it to detect metal targets from farther away than shielded models.
This generous sensing distance makes machine setup easier and more forgiving. Whether you’re detecting parts on a conveyor or the position of a machine arm, the 10mm range of this proximity device ensures reliable detection every time.
Easy Integration with DC 3-Wire NPN Output and Pre-wired Cable

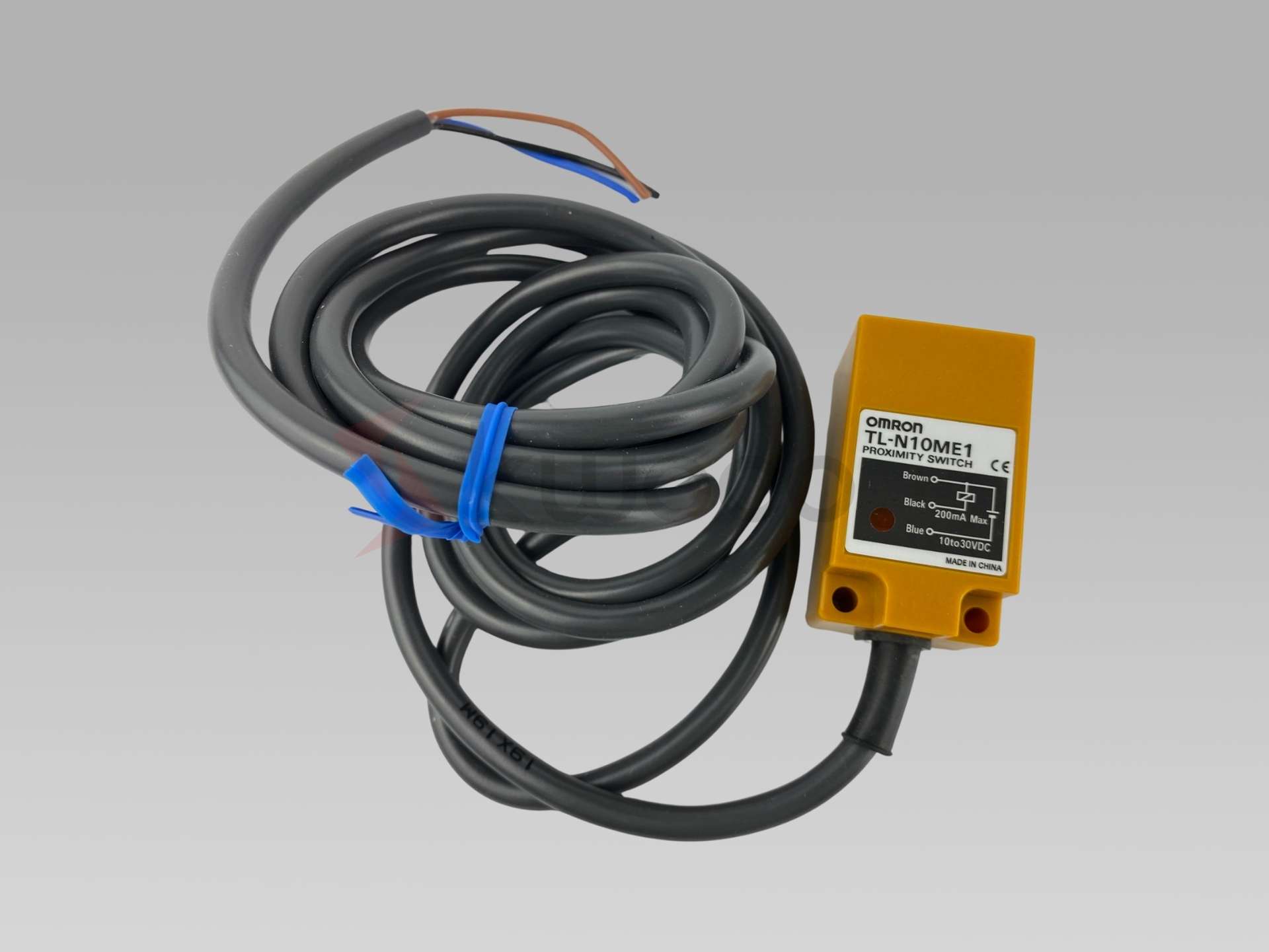

The Omron TL-N10ME1 is designed for quick and easy installation. It comes with a pre-wired 2-meter cable so you can connect it right out of the box. This DC 3-wire sensor with an NPN output is a standard in the industry, making it compatible with most control systems.
Built to Last: Heat-Resistant and Oil-Resistant with IP67 Rating
Industrial environments are often hot, wet, and oily. That’s why the Omron TL-N10ME1 is built to withstand these conditions. This sensor has a superior IP67 rating, which means it is completely protected from dust and can be submerged in water. It is also heat-resistant and oil-resistant, ensuring it performs flawlessly day after day.
Omron TL-N10ME1 Product Datasheet
Frequently Asked Questions
This proximity sensor is ideal for non-contact detection of metal objects in industrial automation. Common uses include detecting parts on conveyor belts, checking the position of machine components, counting objects, and ensuring safety doors are closed.

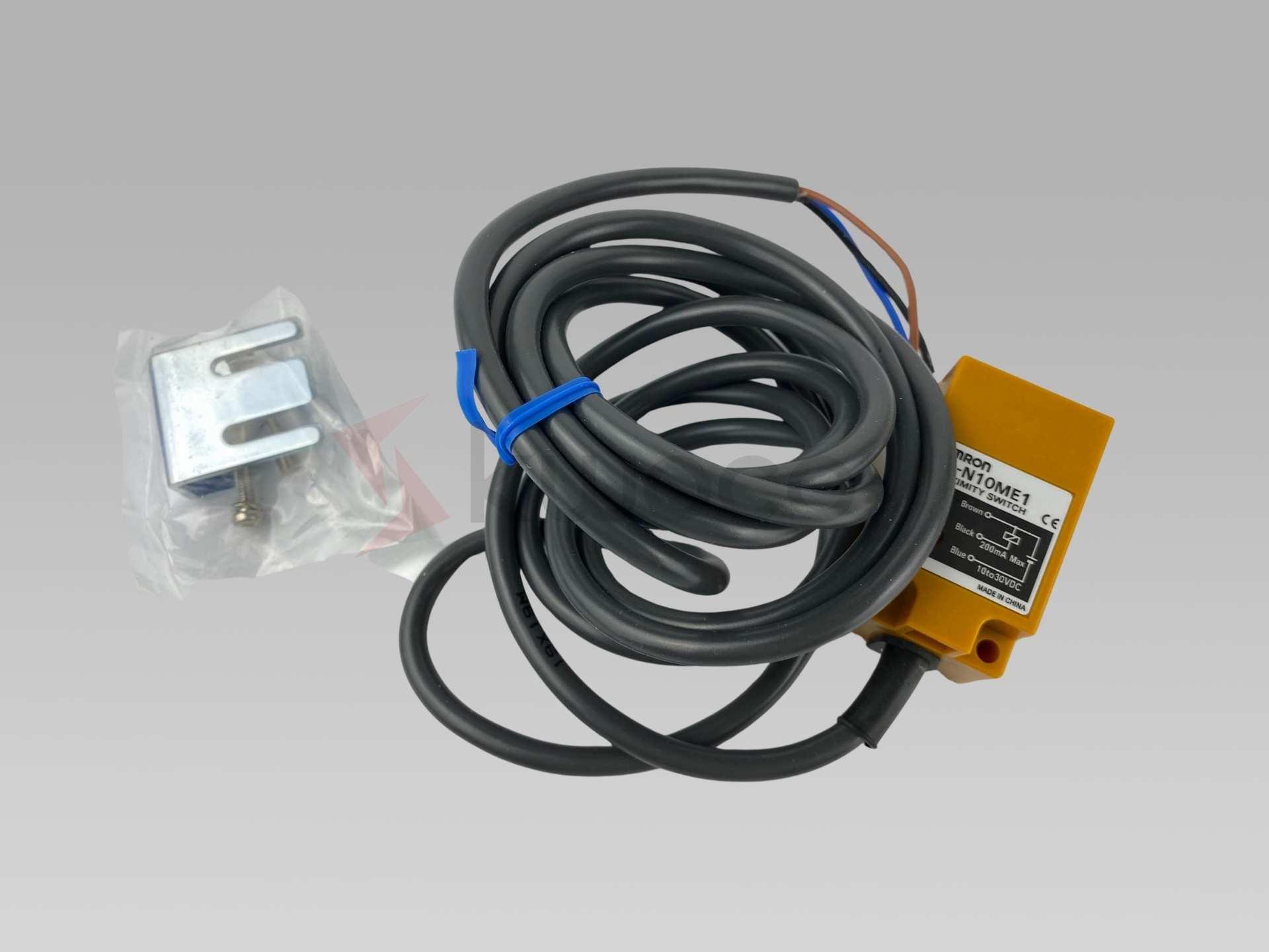

No, it’s very easy to install. The TL-N10ME1 comes with a pre-wired cable and a mounting bracket made of zinc-plated iron. Its standard DC 3-wire NPN output connects easily to most PLCs and controllers.
An unshielded sensor, like this one, has a longer sensing distance because its magnetic field extends from the sides as well as the face. This makes it great for general-purpose detection. A shielded sensor has a more focused field and a shorter range, but it can be mounted flush in metal without interference.
Yes. While the standard model is the TL-N10ME1 2M (2-meter cable), other lengths are available, such as the TL-N10ME1-1-5M which has a 5m cable. Contact us with your requirements, and we’ll find the right part for you.
