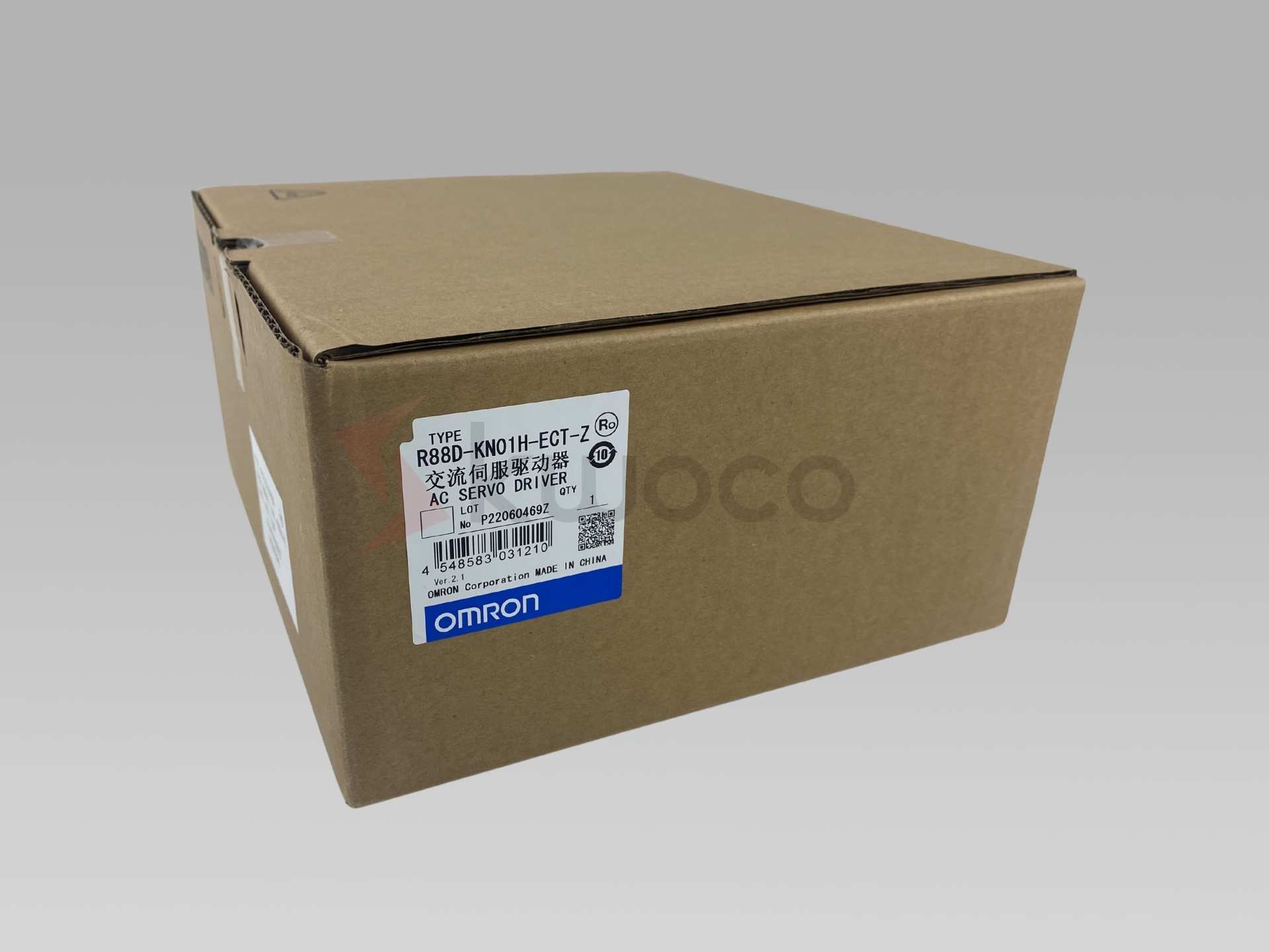

Omron R88D-KN01H-ECT-Z Servo Drive Precision Motion
G5 Series servo drive, EtherCAT type, 100 W, 1~ 200 VAC, Built-in STO (Safe Torque Off), Advanced auto-tuning, High-resolution encoder feedback, Compact design, Conforms to global safety standards.
* Need more details? Our team is ready to help – just ask!
Key Features and Technical Specifications
The Omron R88D-KN01H-ECT-Z servo drive is your premier solution for accomplishing the highest levels of accuracy, rate, and reliability popular applications. This modern Omron drive uses extraordinary efficiency for a substantial array of equipment, guaranteeing your systems operate at peak effectiveness.
The R88D-KN01H-ECT-Z stands out because of its sophisticated EtherCAT connectivity, enabling integrated control throughout several axes with marginal latency. This means you gain exceptional throughput and dramatically enhanced item top quality. We have a large number of brand-new initial supplies, which can sustain international distribution within 24 hours, offer technical support, and offer stress-free after-sales.
| Feature | Specification |
|---|---|
| Model Number | R88D-KN01H-ECT-Z |
| Rated Output | 100 W |
| Input Voltage | 200 VAC (Single/Three-Phase) |
| Communication Protocol | EtherCAT |
| Safety Function | Built-in STO (Safe Torque Off) |
| Control Modes | Position, Speed, Torque |
| Feedback Resolution | 20-bit incremental encoder (or higher, depending on motor pairing) |
| Tuning | Advanced Auto-Tuning |
| Environmental Temp. | 0 to 55°C (Operating) |
| Mounting | DIN Rail / Panel Mount |
| Certification | CE, UL/cUL, RoHS |
Precision Motion Control: Redefining Accuracy in Automation
Attaining identify accuracy in automated procedures is no longer a high-end; it’s a need for affordable manufacturing. The Omron R88D-KN01H-ECT-Z servo drive succeeds below, supplying unparalleled accuracy via its high-resolution encoder responses system. This sophisticated feedback loophole ensures the drive precisely translates electric motor setting and rate, allowing for exceptionally fine adjustments that reduce mistakes and maximize throughput.
Every detailed motion your machinery makes comes to be smooth, specific, and repeatable, thanks to the R88D-KN01H-ECT-Z’s durable control formulas. Whether your application involves complex setting up, high-speed packaging, or fragile product handling, this Omron thing guarantees consistent and trusted efficiency. You’ll right away see enhancements in product high quality and a substantial reduction in waste.
Seamless EtherCAT Connectivity: The Backbone of Modern Automation
In today’s interconnected production setting, seamless communication is extremely important. The Omron R88D-KN01H-ECT-Z servo drive leverages the power of EtherCAT, a high-speed, real-time Ethernet-based fieldbus system. This assimilation permits deterministic synchronization across numerous axes, which is vital for intricate multi-axis movement applications like robotics or gantry systems.
EtherCAT streamlines your network architecture while boosting general system performance. This means faster data exchange, decreased cabling, and less complicated diagnostics, eventually simplifying your entire industrial automation configuration. Attaching this robust drive to your existing network comes to be a simple task, making sure very little downtime throughout integration.
Enhanced Safety Features: Protecting Personnel and Assets
Safety is non-negotiable in any industrial setting. The Omron R88D-KN01H-ECT-Z includes innovative safety and security features, consisting of integrated Safe Torque Off (STO) performance. This crucial safety function immediately eliminates power from the motor, stopping unforeseen startup and making certain equipment safety throughout maintenance or emergency quits, all without requiring outside contactors.
Implementing STO directly within the Omron drive streamlines your wiring and decreases the complexity of your safety and security circuits, conserving you installation time and expense. This dedication to safety and security aids you comply with stringent worldwide criteria and produces a safer working atmosphere for your drivers.
Simplified Integration and Programming: Accelerate Your Development.
Time is cash in commercial automation, and the Omron R88D-KN01H-ECT-Z servo drive intends to conserve you both. Its easy to use layout and compatibility with Omron’s Sysmac Studio development setting streamline the integration and shows procedure. Auto-tuning features streamline arrangement, quickly maximizing electric motor efficiency without considerable manual setup.
You’ll discover that getting your brand-new system up and running is much faster than ever. This simplicity of use encompasses diagnostics and troubleshooting, decreasing the learning curve for your group and speeding up issue resolution.
Omron R88D-KN01H-ECT-Z Product Datasheet
Frequently Asked Questions
The main benefit is real-time, high-speed, synchronized communication across multiple axes, which enhances precision and overall system performance, especially in complex motion control applications.
While designed for optimal performance with Omron’s G5/G6 series servo motors, the Omron R88D-KN01H-ECT-Z can often be paired with other compatible servo motors. Always consult the Omron compatibility guide for specific pairings and recommended encoder types.
Built-in STO (Safe Torque Off) means the drive has an integrated safety function that safely removes power from the motor, preventing unintended machine startup. This capability typically reduces the need for external safety contactors, simplifying wiring and enhancing overall system safety.
Ensure proper installation in a well-ventilated enclosure, adhere to environmental specifications (temperature, humidity), and follow Omron’s recommended maintenance guidelines. Regular inspection for dust buildup or loose connections can also prolong the life of your Omron drive.
