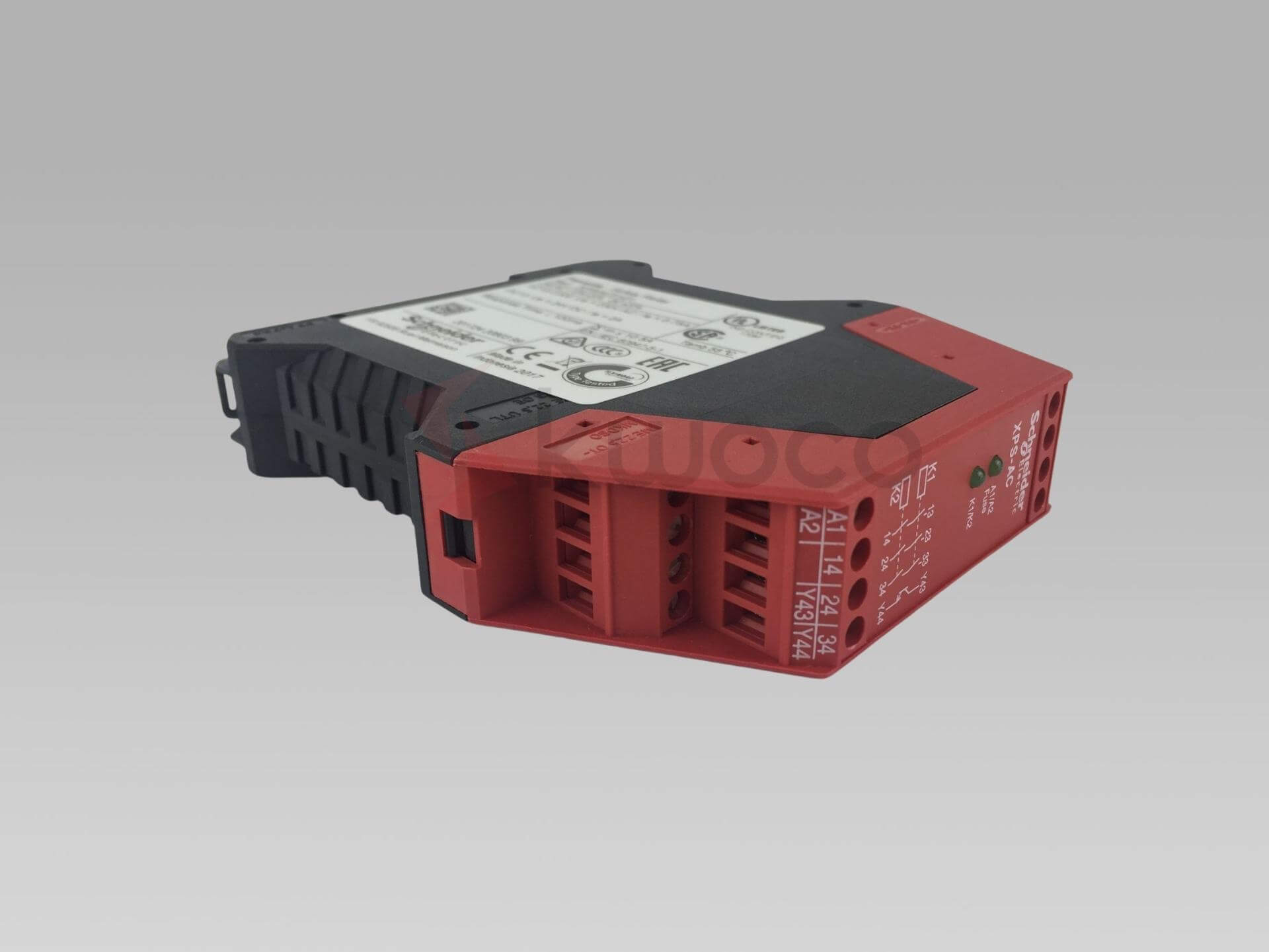

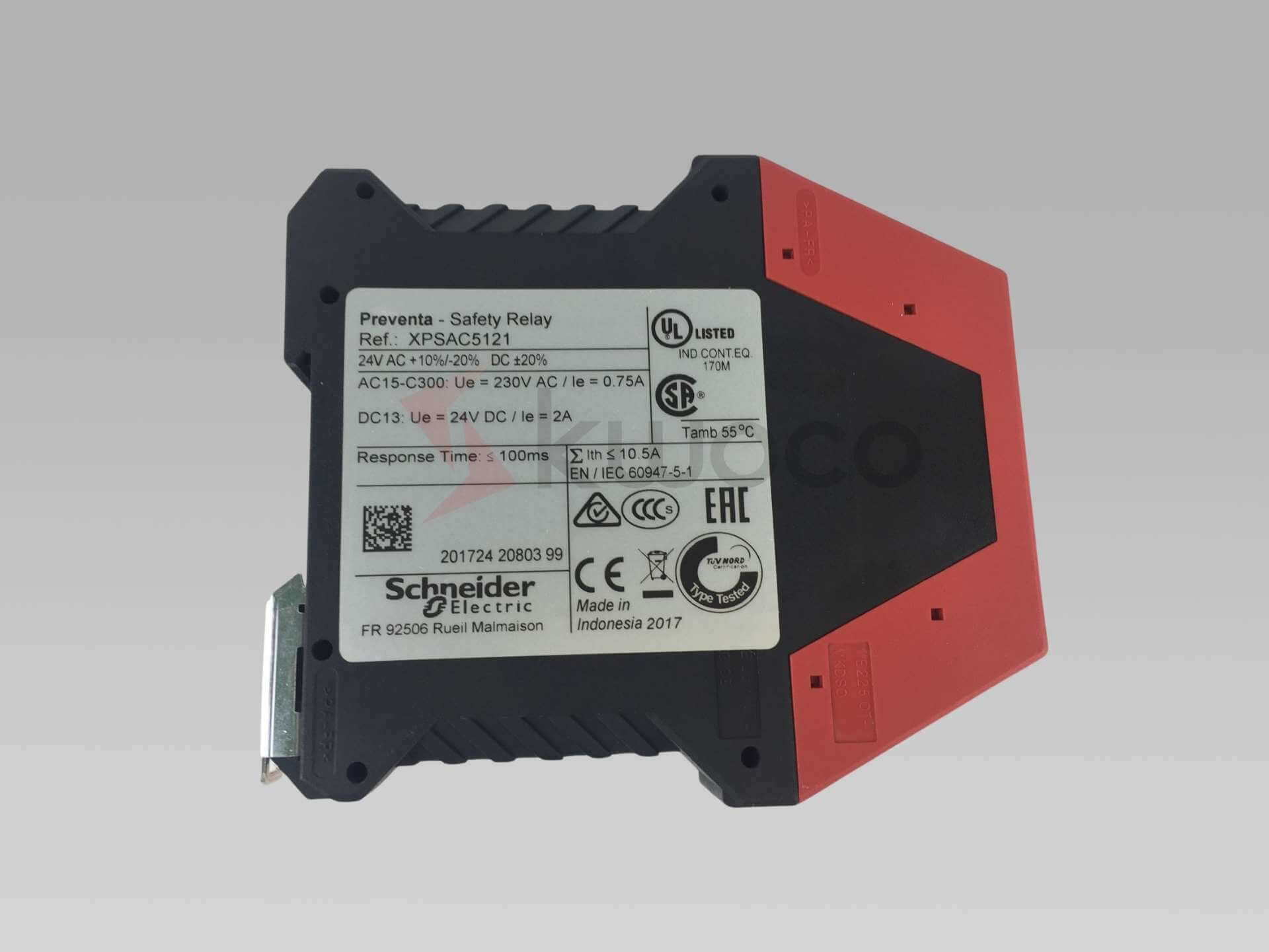

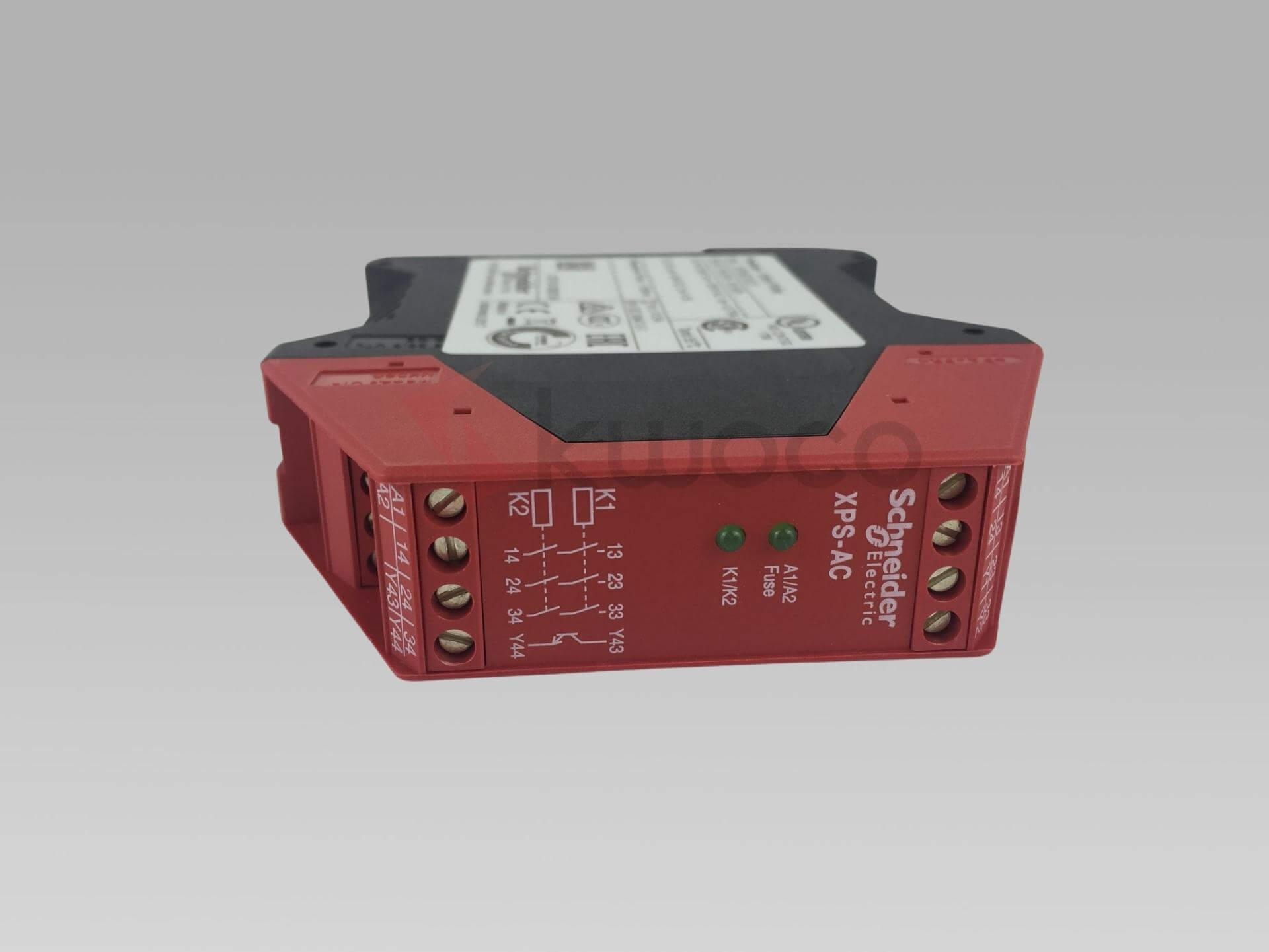

Schneider Electric XPSAC5121 Safety Relay Fast Global Ship
Preventa Safety module, 24 V AC/DC supply, 3 NO relay outputs, 1 solid state output, unmonitored start, captive screw clamp terminals, SILCL 3 (EN/IEC 62061), PL e/Category 4 (EN/ISO 13849-1), 35 mm DIN rail mount, < 100ms response time.
* Don’t guess. Get the answers you need from our team directly.
Key Features and Technical Specifications
The Schneider Electric XPSAC5121 safety relay is your solution. It monitors your emergency buttons. It watches your limit switches. If something goes wrong, it cuts the power. It keeps your plant safe.
| Main Specifications | |
|---|---|
| Product Name | XPSAC5121 |
| Manufacturer | Schneider Electric / Square D |
| Supply Voltage | 24 V AC/DC (-20...20% for DC, -20...10% for AC) |
| Output Type | Relay instantaneous opening, 3 NO, volt-free |
| Additional Output | 1 solid state output |
| Safety Level | PL e/Category 4 (EN/ISO 13849-1), SILCL 3 (EN/IEC 62061) |
| Mounting Support | 35 mm symmetrical DIN rail |
| Response Time | <= 100 ms on input open |
| Conventional Free Air Thermal Current | 10.5 A |
| Width | 22.5 mm (approx based on diagram) |
Why Choose the XPSAC5121 Safety Relay?
It checks its own health. If the safety wiring breaks, it knows. It stops the machine. This prevents accidents. It protects your team. It protects your expensive gear.
Understanding the 24 V Power and Outputs
The XPSAC5121 uses 24 V AC or DC. This is standard in most cabinets. You do not need a special transformer. It hooks up fast. The unit consumes very little power. It is efficient. This saves you money on energy bills.
The outputs are strong. It has 3 Normally Open (NO) relay circuits. These open instantly when power cuts. There is also one solid state output. This sends a signal to your PLC. It tells your control system the status. This helps with fixing problems fast. You get clear data.
Easy Installation of the XPSAC5121 Safety Relay

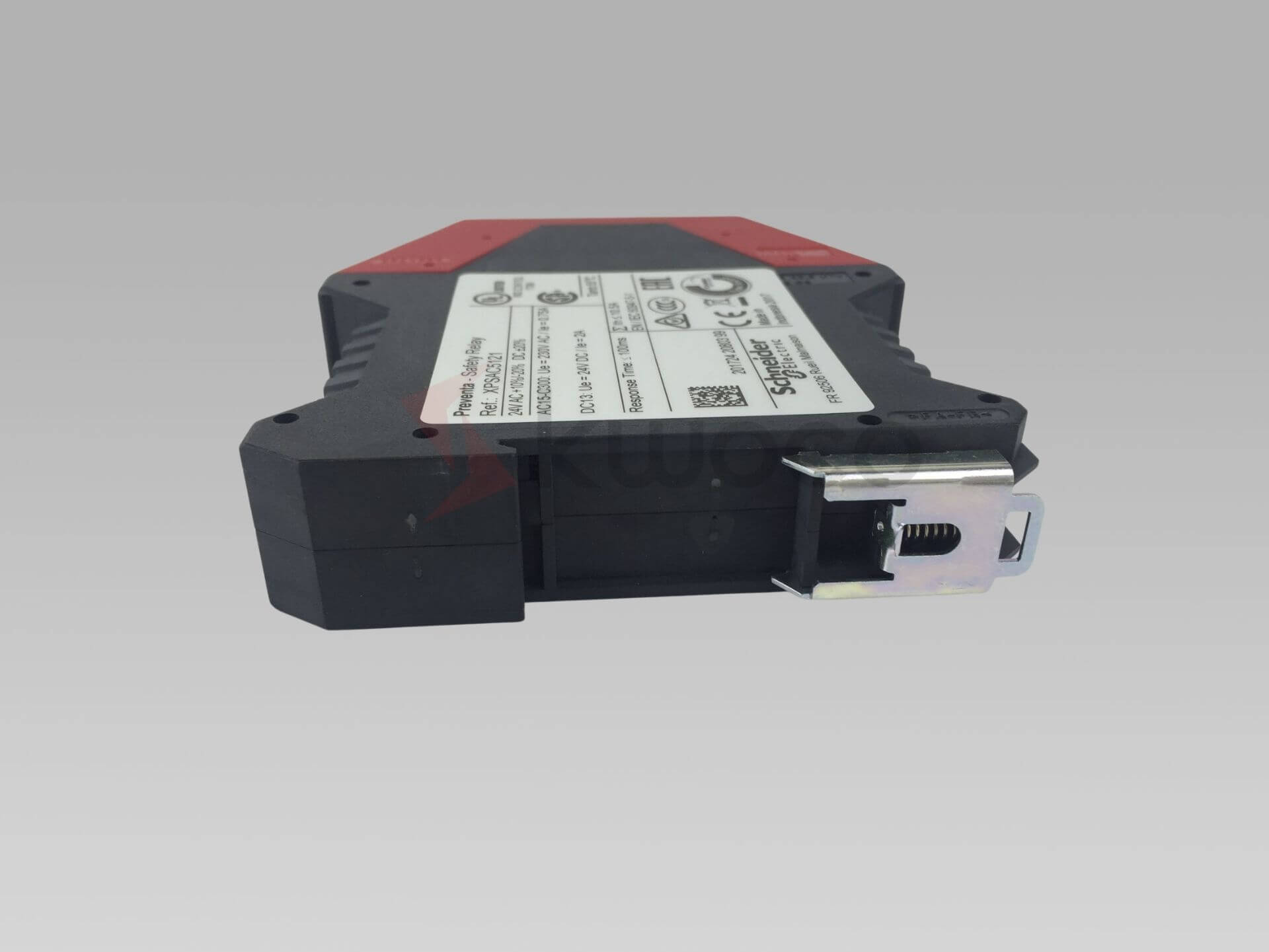

The XPSAC5121 safety relay is user-friendly. It mounts on a 35 mm DIN rail. It clicks right into place. No special tools are needed. It sits firmly. It handles vibration well.
The terminals are captive screw clamps. They hold wires tight. You can use flexible cable or solid cable. The bezel helps guide the wire. Wiring is quick. It is also secure. You will not have loose connections. This prevents false trips. It keeps your line running.
Frequently Asked Questions
Yes. The module supports 24 V AC and 24 V DC. It has a tolerance range to handle small fluctuations in power.
The response time is very fast. It is less than or equal to 100 ms when the input opens. This ensures quick stops.
No. The XPSAC5121 is designed for an unmonitored start type. Check your safety requirements to ensure this fits your application.
It has 3 NO (Normally Open) relay outputs that open instantaneously. It also has one solid state output for signaling to a PLC.
