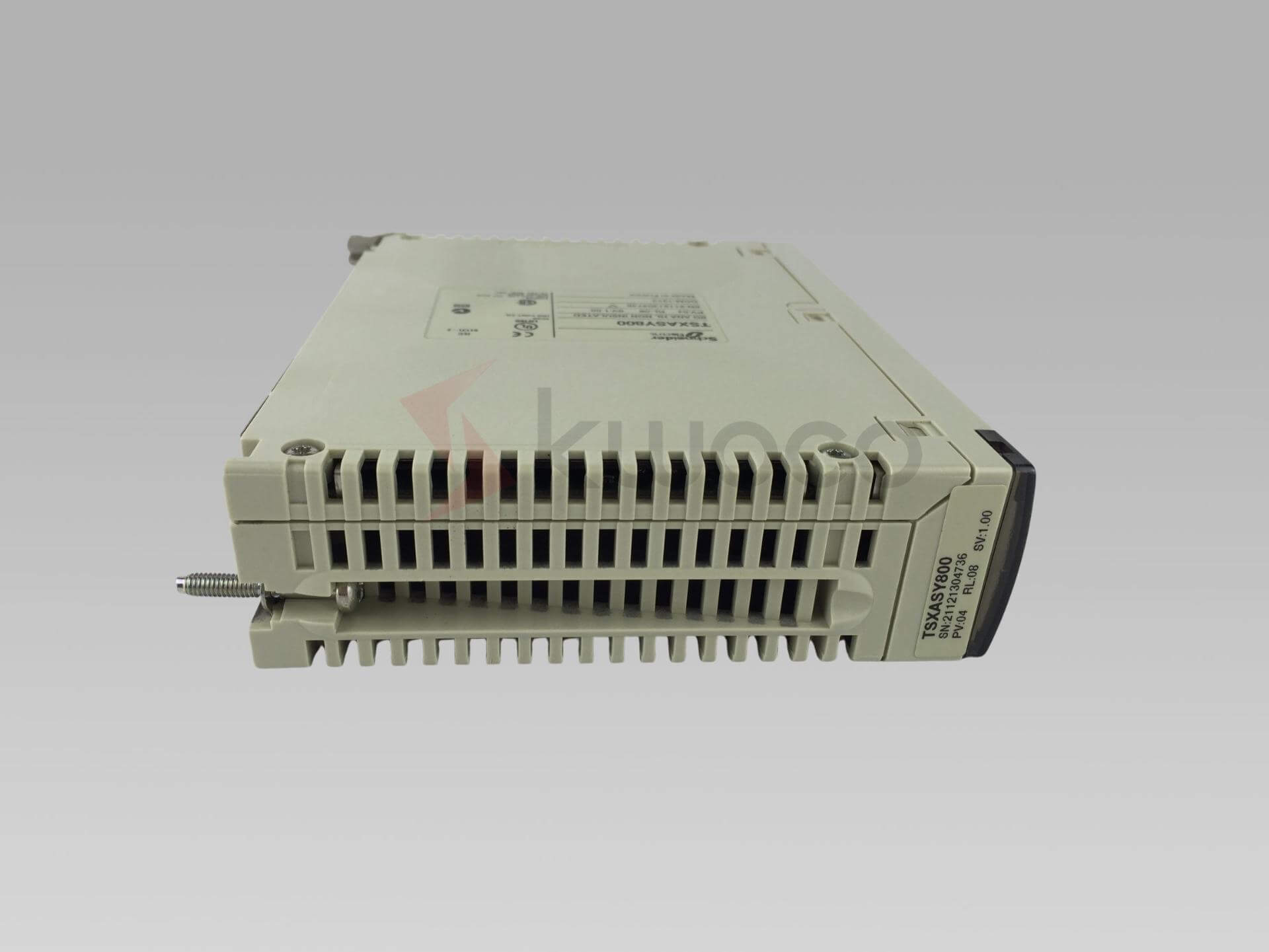

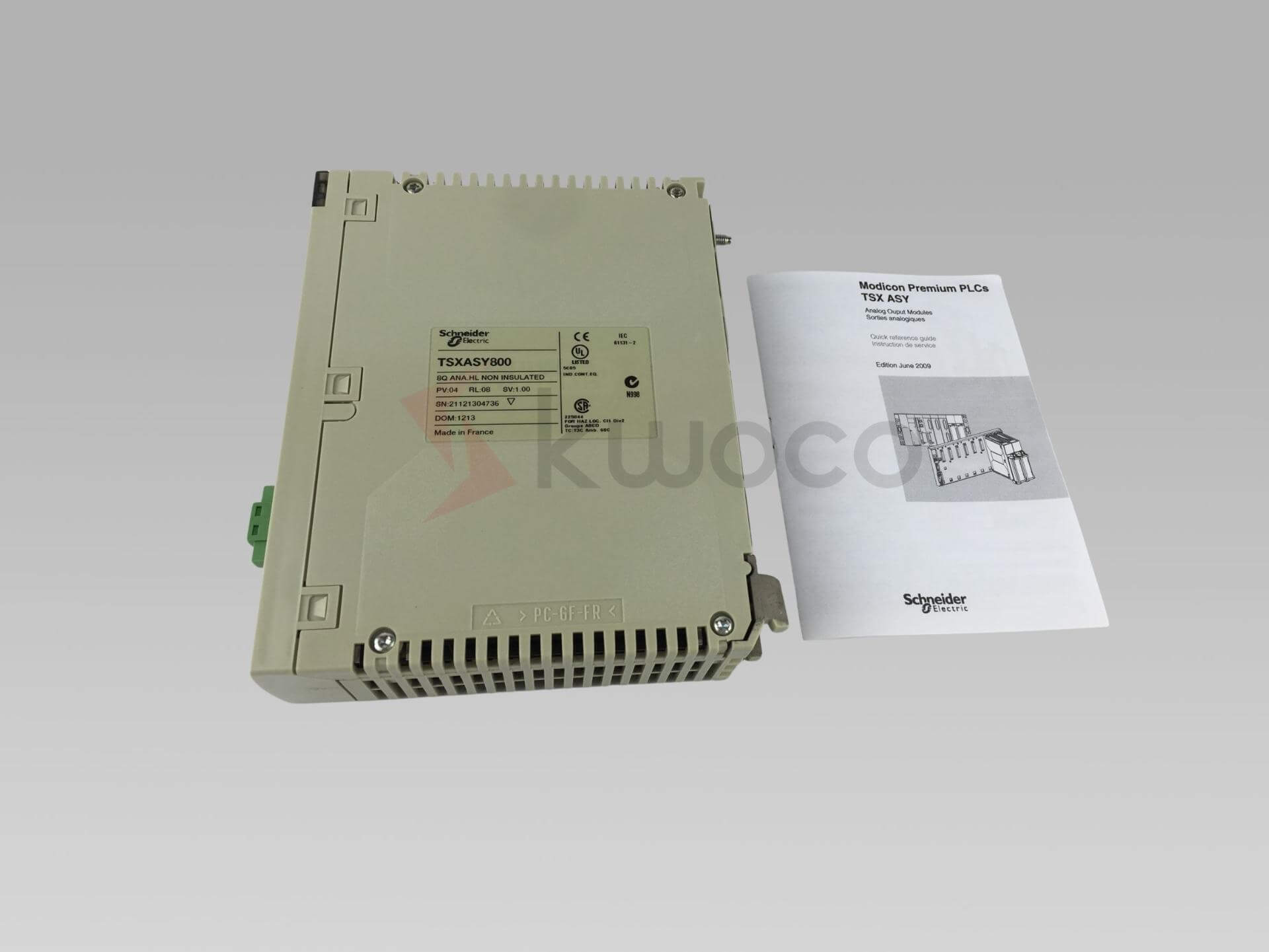

Schneider TSXASY800 Modicon Premium Analog Output Module

Name: Schneider TSXASY800 Modicon Premium Analog Output Module - In Stock
Brand: KWOCO
Price: 1 USD
Availability: InStock

8 analog outputs, multirange types (0…20 mA, 4…20 mA, +/- 10 V), 13 bits + sign resolution, 5 ms conversion time, 1000 Vrms isolation, SUB-D 25 connector, short-circuit and overload protection, 200 mA at 5 VDC internal power consumption.

* Don’t guess. Get the answers you need from our team directly.

Key Features and Technical Specifications

This is a high-performance analog output module. It is designed specifically for the Modicon Premium automation platform. It handles complex tasks with ease. It offers 8 outputs. This allows you to control multiple devices at once. It supports both current and voltage. This gives you flexibility. You do not need different cards for different jobs.

Feature	Specification
Product Type	Analog Output Module
Range of Product	Modicon Premium Automation Platform
Number of Outputs	8
Output Types	Current 0...20 mA, 4...20 mA; Voltage +/- 10 V
Resolution	13 bits + sign (+/- 10 V); 13 bits (Current)
Conversion Time	5 ms

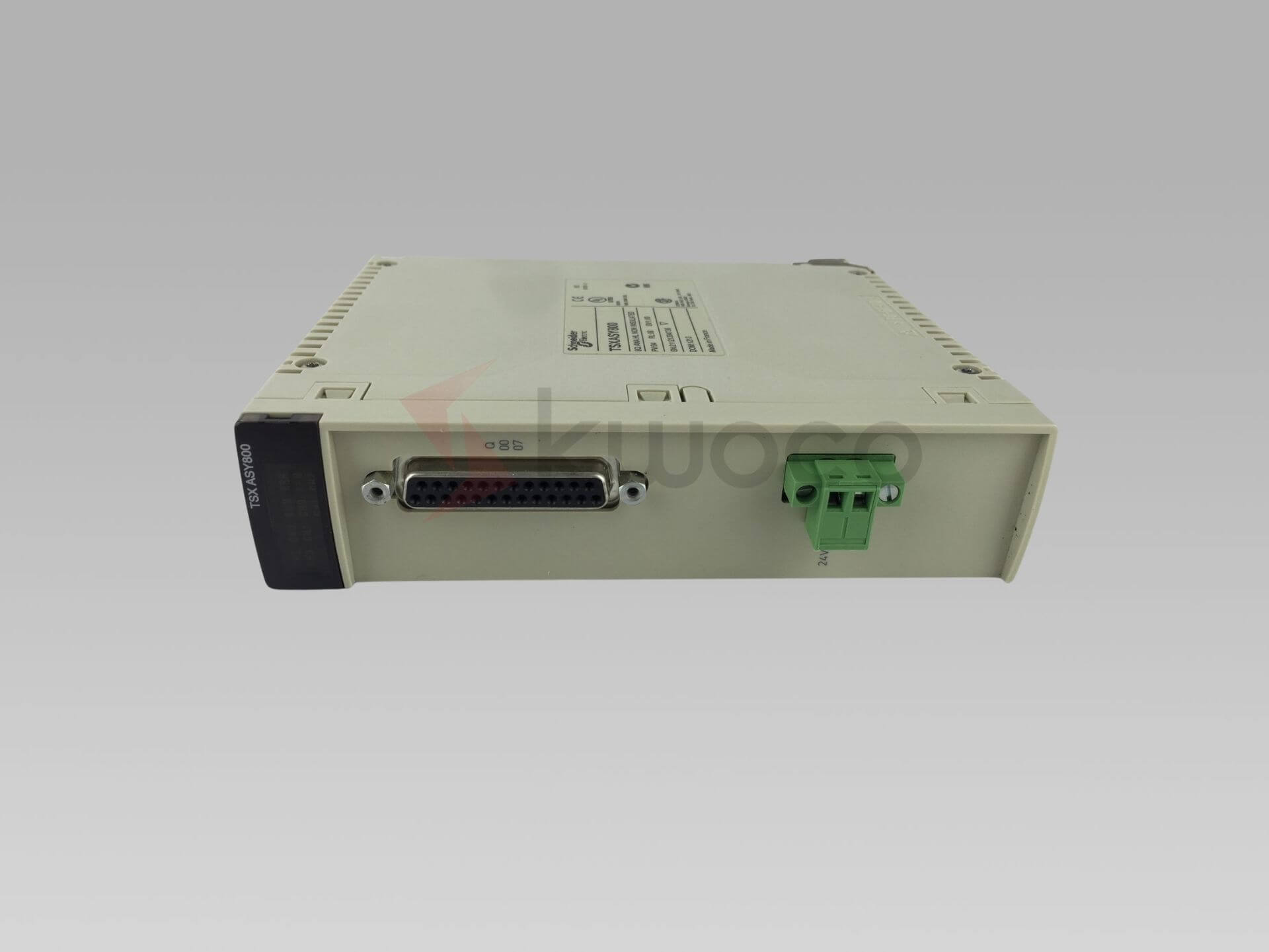

Electrical Connection	1 SUB-D 25 connector
Isolation (Bus/Channel)	1000 Vrms
Current Consumption	200 mA 5 V DC; 300 mA 24 V DC
Load Impedance	< 600 Ohm (Current); > 1000 Ohm (Voltage)

Unlocking the Power of the Schneider TSXASY800 Module

The TSXASY800 is a powerhouse. It sits perfectly in your Modicon Premium rack. This module acts as the bridge between your PLC and your field devices. It takes digital commands and turns them into real signals.

This unit is compatible with the Telemecanique lineage of products. It is built to work hard. You install it, and it just works. It simplifies your maintenance tasks.

Precision with 13 Bits Conversion

This output unit delivers high resolution. It uses 13 bits for its logic. This means your control signals are very smooth. There are no jagged steps in your voltage or current.

The 13 bits coversion process is fast. It takes only 5 ms. This is great for fast machines. Your automation logic stays in sync with the real world. You get better product quality. You get less waste.

Understanding Power: 200mA at 5VDC

This unit is efficient. It draws 200mA at 5VDC from the backplane. This is low consumption for an 8-channel device. It also uses some 24V power. It draws 300 mA at 24 V DC. This powers the output circuits. The design separates logic power from field power. This protects your PLC processor from outside spikes.

Versatile Voltage and Output Options

You can set each channel to what you need. You can choose voltage mode. This gives you +/- 10 V. Or you can choose current mode. It supports 0 to 20 mA. It also supports 4 to 20 mA. This analog output module adapts to you. You might drive a valve. You might drive a speed controller. The TSXASY800 does it all.
