Buy Schneider TSXAEY800 Analog Input Module Global Ship
Modicon Premium automation platform, 8 high-level analog inputs, multirange support (0…20 mA, 4…20 mA, +/- 10 V, 0…10 V), 12-bit analog/digital conversion, 27 ms nominal read cycle, 1000 Vrms isolation, SUB-D 25 electrical connection.
* Don’t guess. Get the answers you need from our team directly.
Key Features and Technical Specifications
It is a robust analog input module designed for the Modicon Premium platform. It handles the tough jobs. It takes real-world signals and turns them into data you can trust. It handles both voltage and current. You do not need different cards for different sensors.
| Feature | Specification |
|---|---|
| Product Name | TSXAEY800 |
| Range of Product | Modicon Premium Automation Platform |
| Module Type | Analog Input Module |
| Number of Inputs | 8 (High Level) |
| Resolution | 12 bits |
| Input Types | Current: 0-20mA, 4-20mA Voltage: +/- 10 V, 0-10 V, 0-5 V, 1-5 V |
| Nominal Read Cycle | 27 ms |
| Isolation | 1000 Vrms (Channel/Bus & Channel/Ground) |

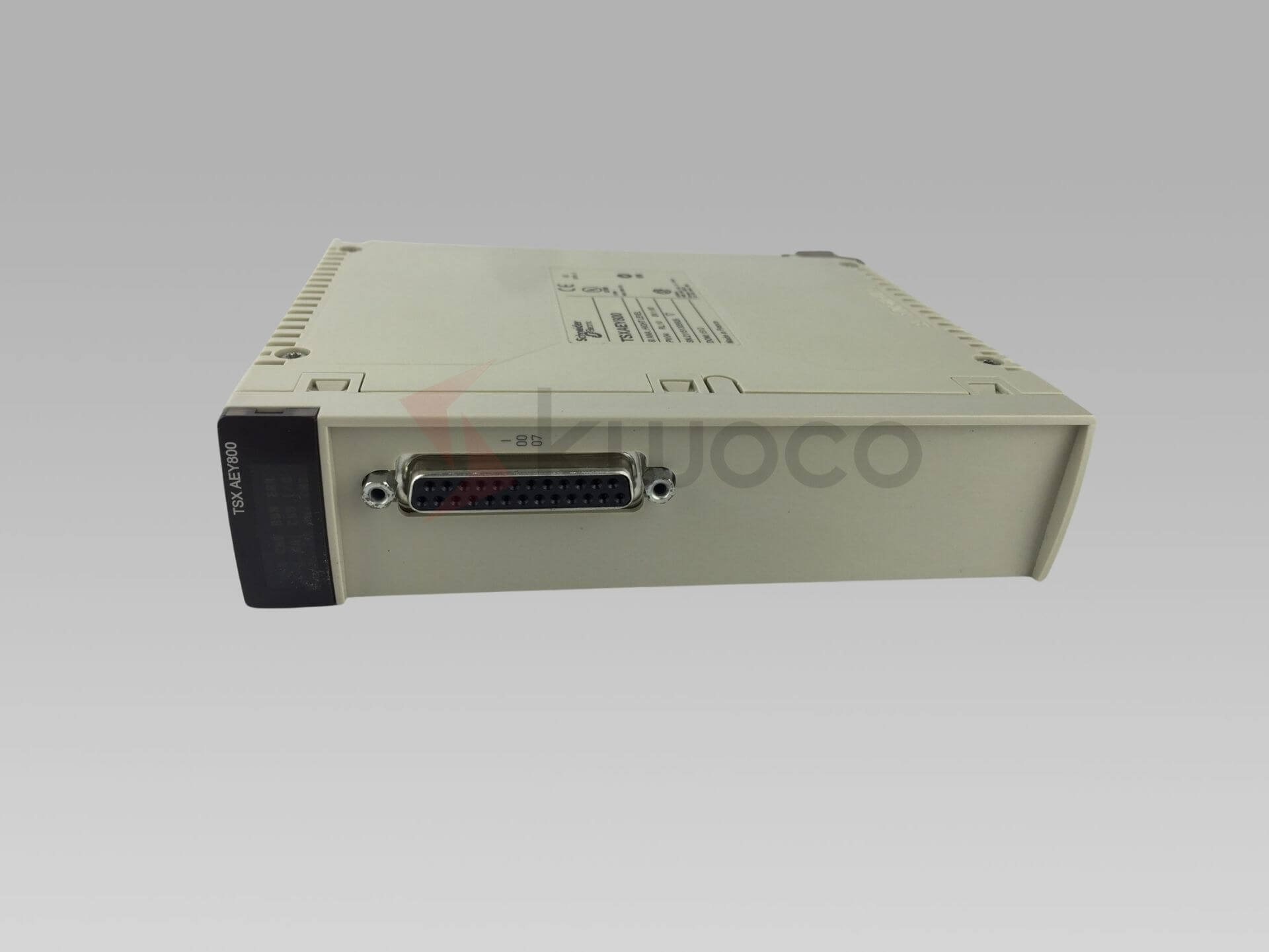

| Connection | 1 connector SUB-D 25 |
Versatile Input Ranges for the TSXAEY800 Analog Input Module
The TSXAEY800 analog input module is a master of adaptation. In the factory, you have many sensors. Some use amps. Some use volts. This module handles them all. It supports standard 10 V signals. It also reads 0 to 5 V.
It handles 4 to 20 mA too. This means you can standardize your spare parts. You keep one TSXAEY800 on the shelf. It fixes many problems. This flexibility makes it a key part of any Modicon system.
High Precision Measurement with 12-Bit Resolution
The Schneider Electric TSXAEY800 gives you 12 bits of resolution. It means it slices the signal into very small pieces. It sees tiny changes in temperature or pressure.
The Schneider Electric engineering ensures low error rates. At 25 °C, the error is very small. You can trust the numbers this input device gives you.
Fast Read Cycles for Real-Time Control
This module is fast. The nominal read cycle is just 27 ms. It calculates speed based on the number of channels used. This helps your PLC react quickly. If a tank fills up, the system knows instantly. The TSXAEY800 keeps your data fresh.
Robust Isolation and Protection
Electrical noise can kill a signal. It can even damage your Modicon Premium rack. The TSXAEY800 fights this. It has 1000 Vrms isolation.
This separates the channels from the bus. It also isolates channels from the ground. Your expensive processor is safe. The input overvoltage protection adds another layer of safety.
Frequently Asked Questions
Yes, it does. This analog input module fully supports 4-20 mA current loops, as well as 0-20 mA. It also handles various voltage ranges like 10 V and 1-5 V.
The TSXAEY800 is designed for the Modicon Premium automation platform. It fits into standard and extendable racks. Check your CPU compatibility, but generally, it works with the Premium line.
The module features a 12-bit resolution. This provides high-quality measurement accuracy for your process control needs in industrial automation.
Yes, we provide a warranty and worry-free after-sales support. We stand behind the quality of every electric part we sell.
