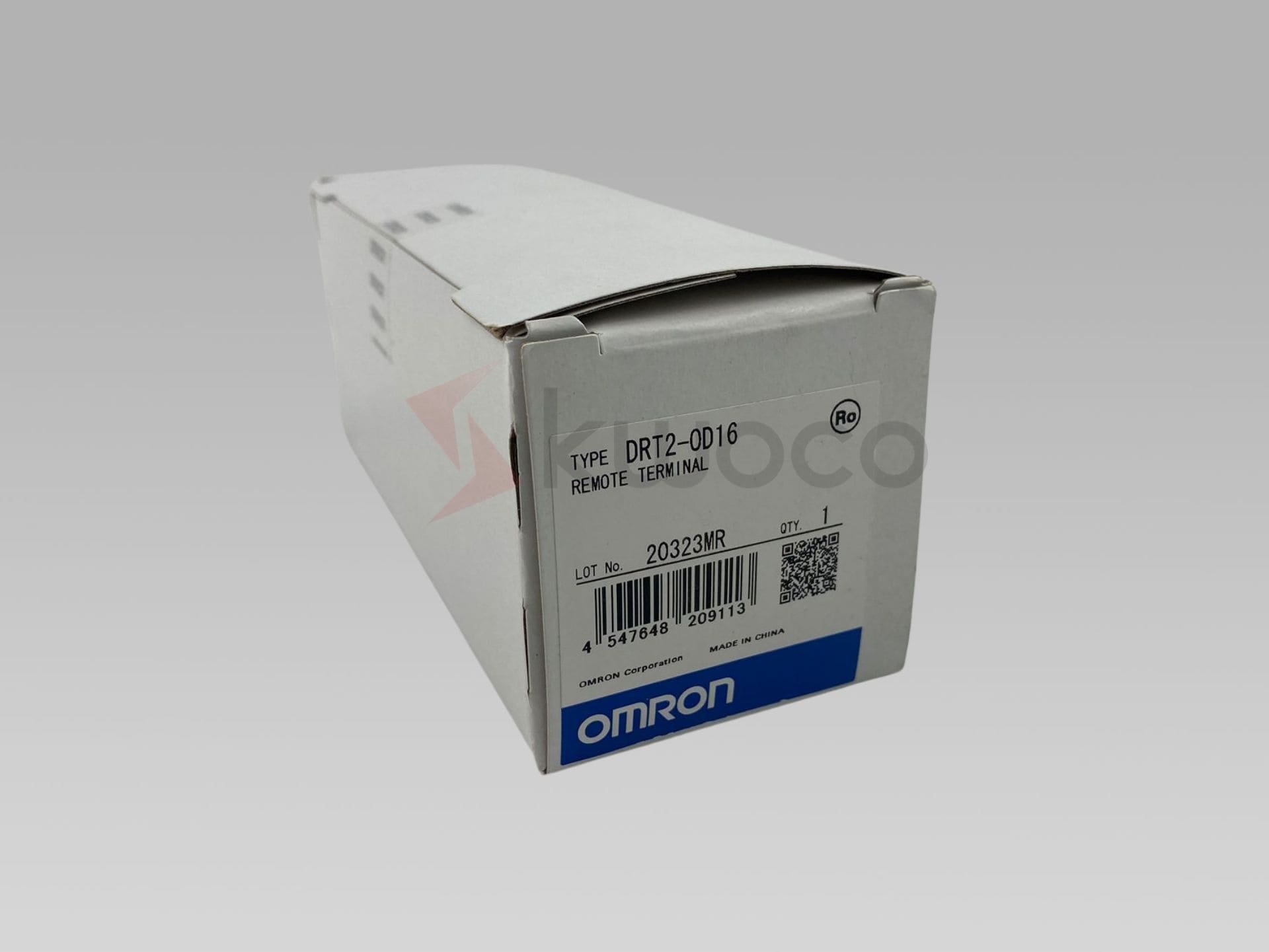

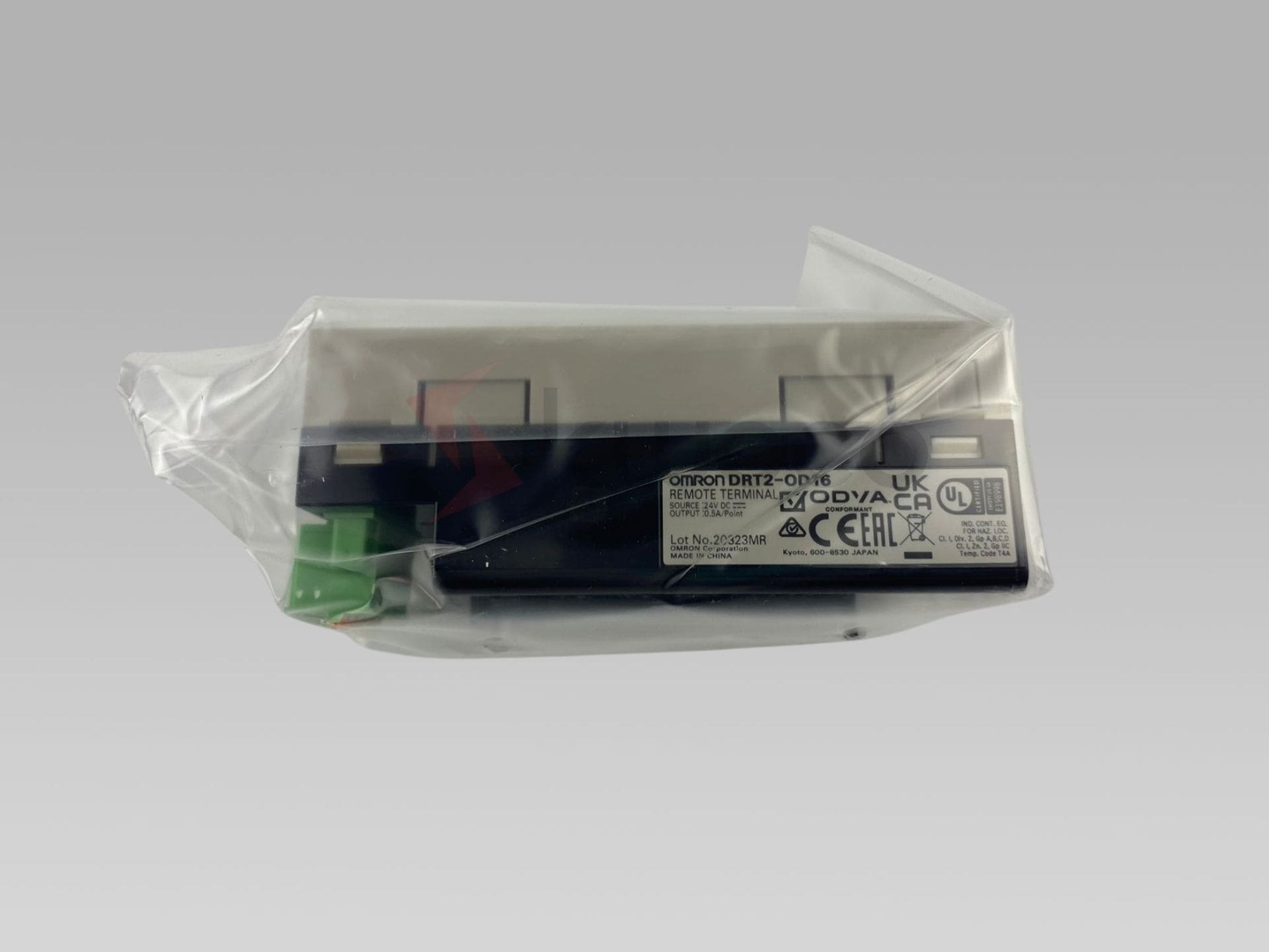

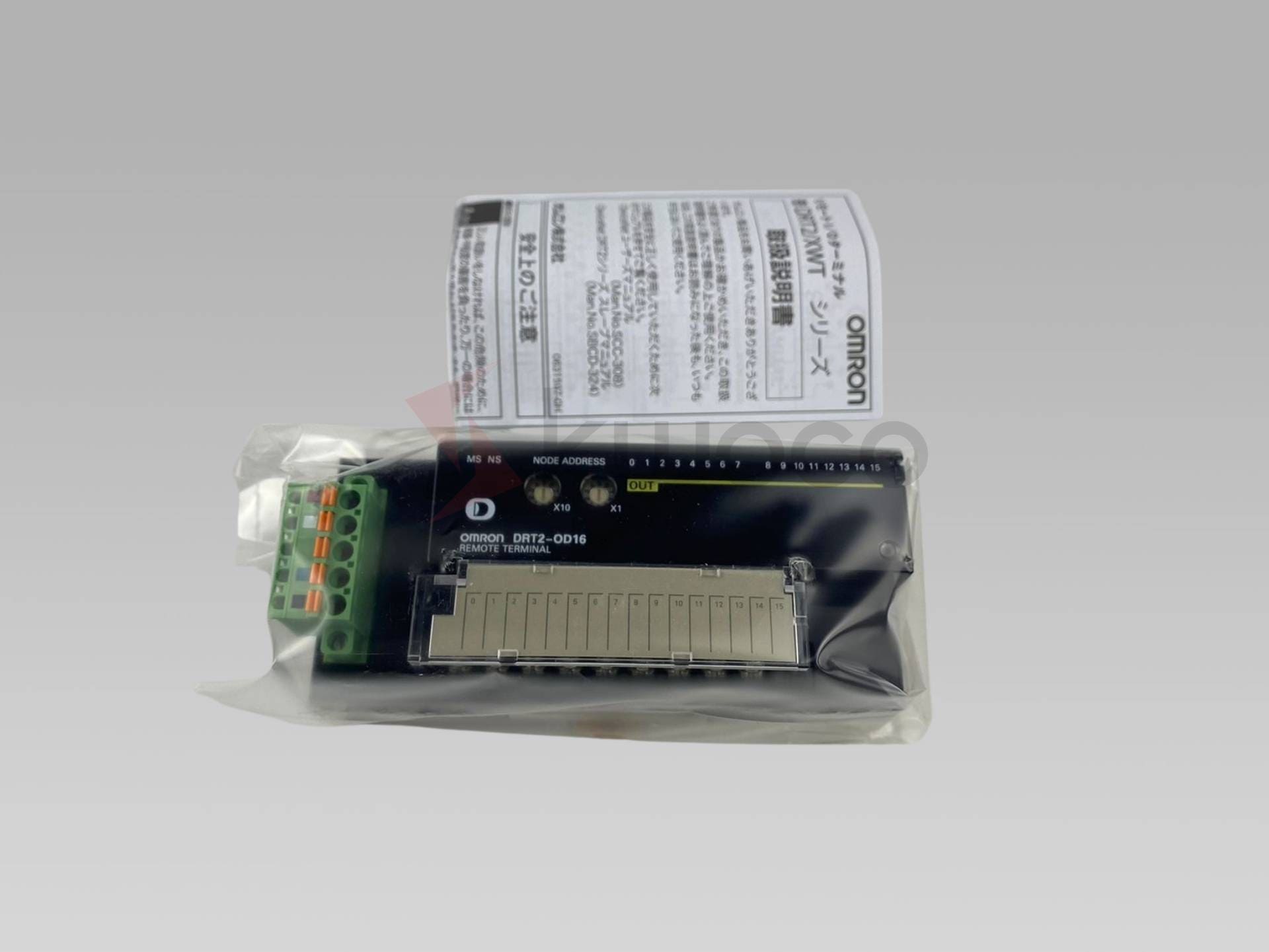

Omron DRT2-OD16 16-Output DeviceNet Unit
16 transistor outputs (NPN, sinking type), 0.5 A per point, 4.0 A per common, DeviceNet communication capability, M3 screw-clamp terminal block, DIN rail mounting, LED status indicators for easy diagnostics.
* Need more details? Our team is ready to help – just ask!
Key Features and Technical Specifications
This powerful DeviceNet slave terminal simplifies your setup by providing 16 points of reliable NPN digital output over a single network cable. Its smart maintenance features help you predict failures before they happen, keeping your production line running smoothly. This product is not just an I/O block; it’s an upgrade to your system’s intelligence and reliability.
| Item | Specification |
|---|---|
| Model | DRT2-OD16 |
| I/O Classification | 16 Digital Outputs (Transistor, NPN) |
| Communications Protocol | DeviceNet |
| Rated Output Current | 0.5 A per point, 4.0 A per common |
| I/O Power Supply Voltage | 20.4 to 26.4 VDC (24 VDC -15% to +10%) |
| ON Delay Time | 0.5 ms max. |
| OFF Delay Time | 1.5 ms max. |
| Mounting Method | 35-mm DIN Track |
| Terminal Type | M3 Screw Terminals |
| Isolation Method | Photocoupler isolation |
Streamline Your System with DeviceNet Communication
The Omron DRT2-OD16 uses the DeviceNet network to handle all its communication. Instead of running a separate wire for each output, you only need a single network cable. This simple connection drastically reduces wiring time, minimizes potential connection points of failure, and makes your control cabinet cleaner and easier to troubleshoot.
Powerful 16-Point NPN Digital Output Control
This peripheral unit provides 16 x NPN sinking digital output points. This allows your main controller to operate solenoids, lamps, relays, and other devices with precision. Each contact point is rated for up to 500mA, providing enough power for a wide range of common industrial components.
The NPN output configuration is a standard in the automation industry, ensuring compatibility with your existing devices. With 16 points in one compact unit, you can manage a significant part of your machine from a single node on the network. This density helps save valuable panel space while giving your controller the reach it needs.
Go Beyond Simple I/O with Smart Maintenance Functions
The Omron DRT2-OD16 is more than just an on/off switch. As a Smart Slave terminal, this unit is designed to collect valuable operational data. It includes an operating time monitor and a contact operation counter. These functions track how long the unit has been running and how many times each output has been switched on.
Omron DRT2-OD16 Product Datasheet
Frequently Asked Questions
The DRT2-OD16 is a remote digital output module. It allows a PLC or other network controller to turn devices like valves, lamps, and small motors on and off over a DeviceNet network.
This model, the DRT2-OD16, is an NPN (sinking) output unit.
It is designed for easy installation on a standard 35-mm DIN rail inside an electrical enclosure.
It can monitor the on-time and cycle count of each output, which helps you track component wear and schedule preventative maintenance to avoid unexpected breakdowns.
