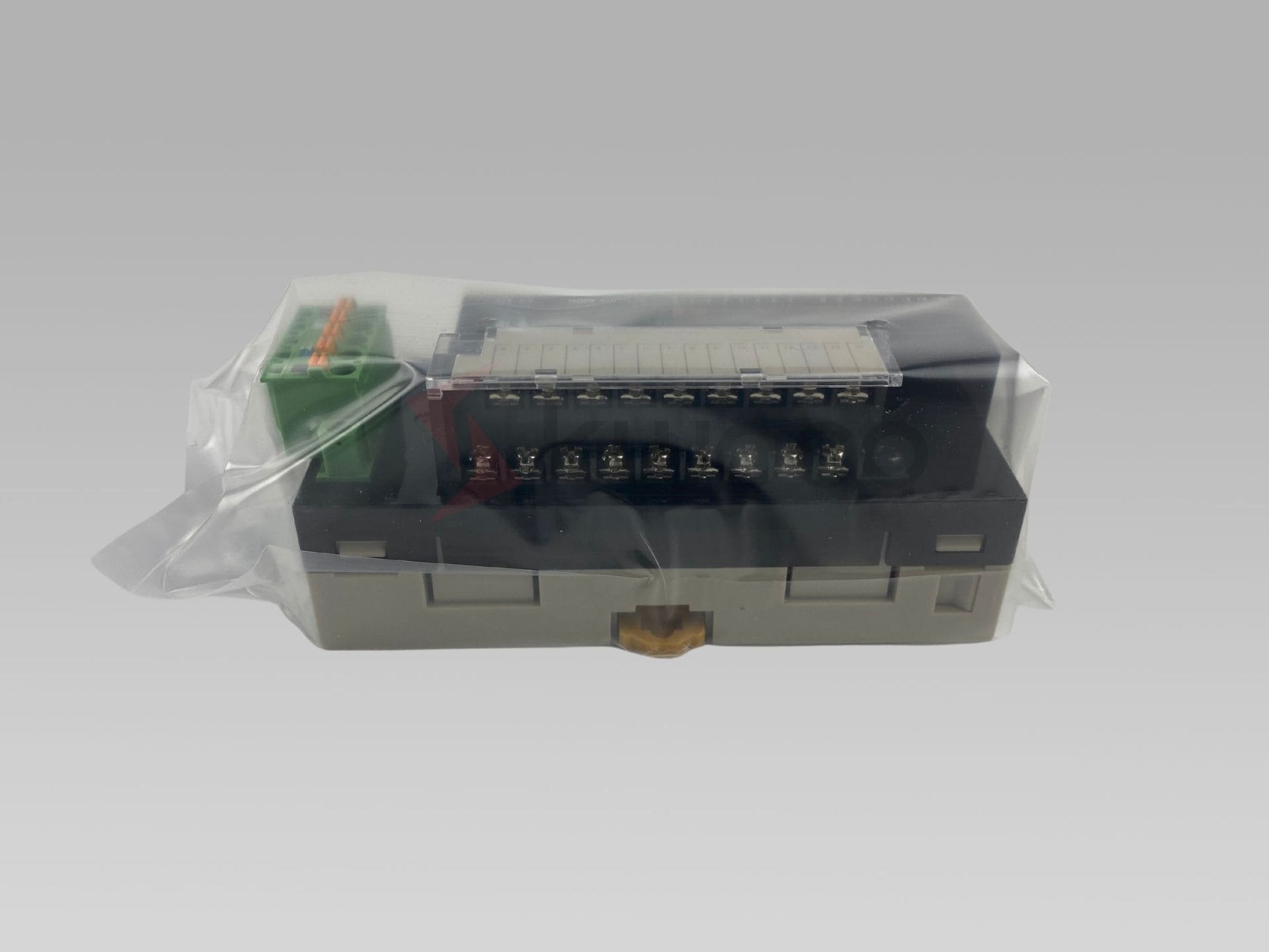

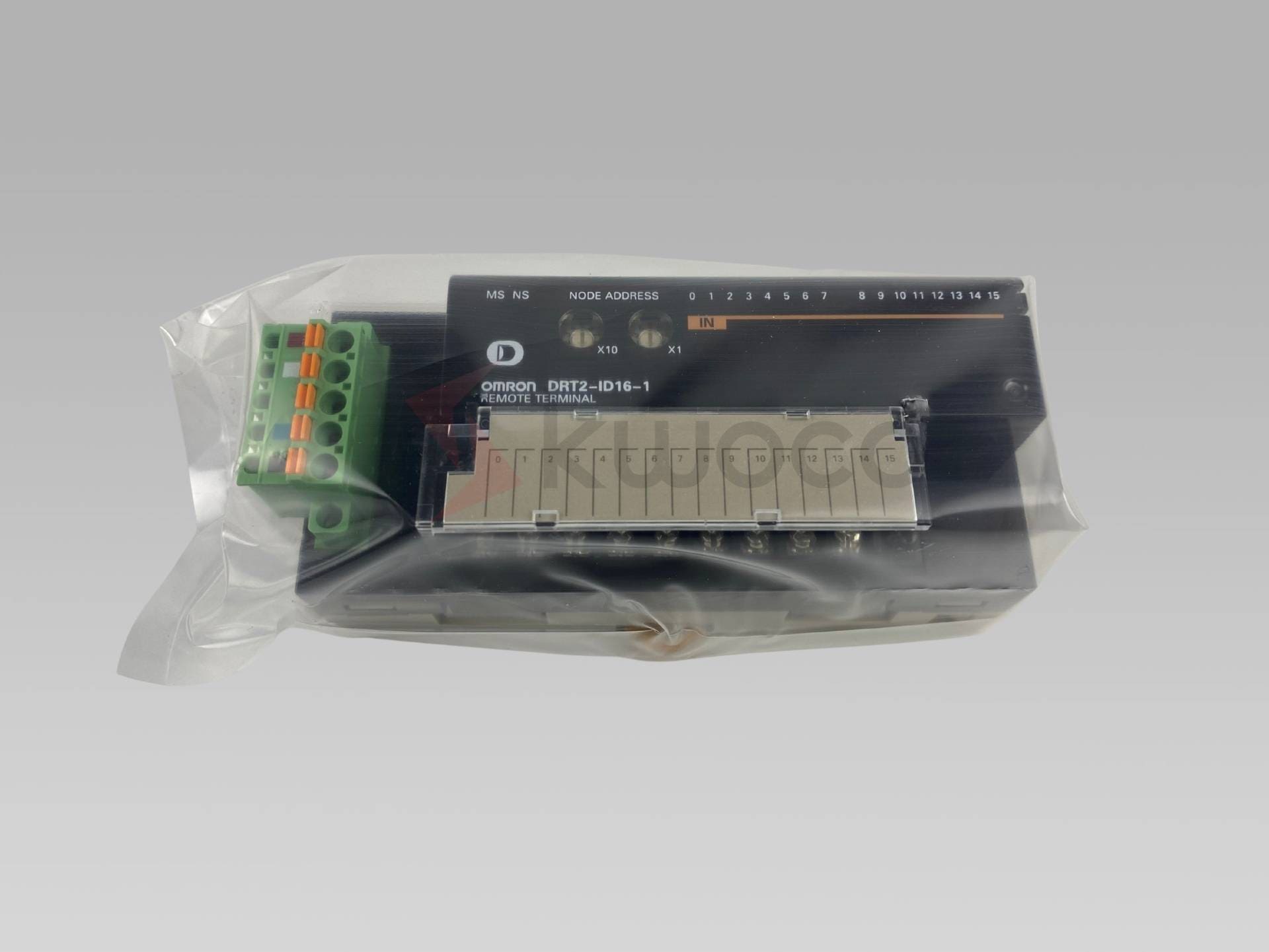

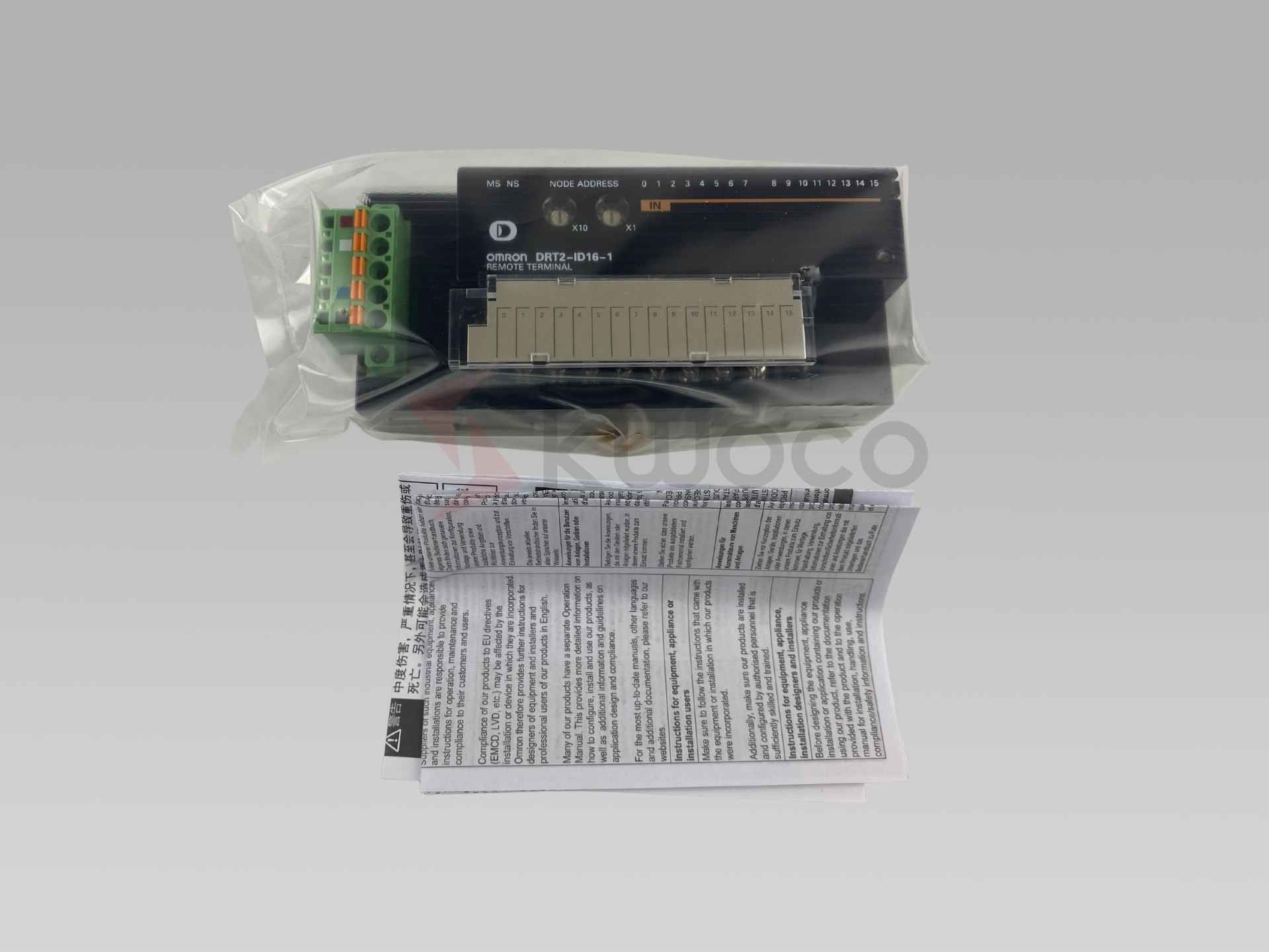

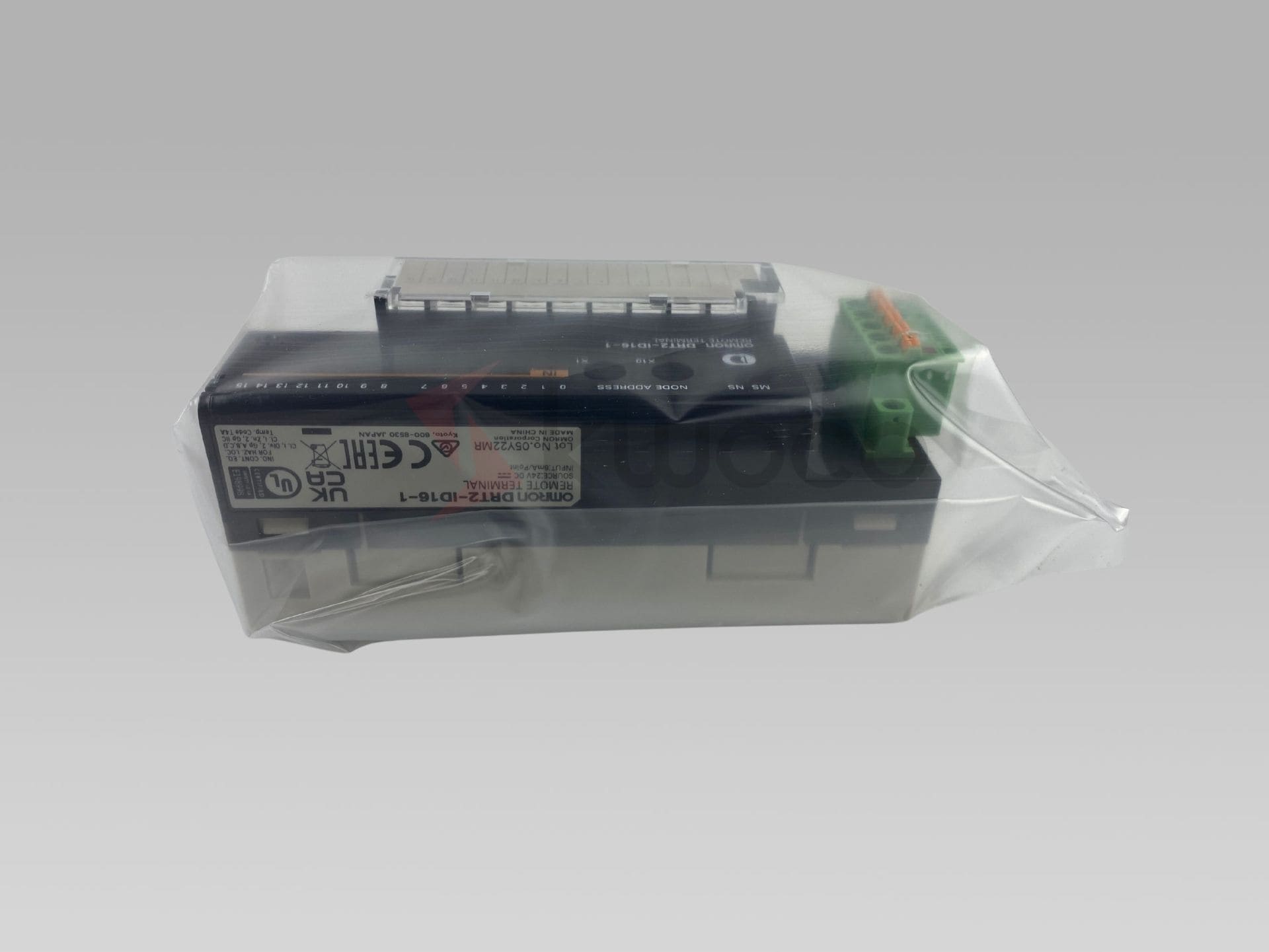

Omron DRT2-ID16-1 16-Input DeviceNet Unit
DeviceNet Smart Slave I/O Terminal, 16 digital input points (PNP, negative common), 24 VDC I/O power, removable M3 screw terminal block, DIN rail mounting.
* Need more details? Our team is ready to help – just ask!
Key Features and Technical Specifications
This compact DeviceNet unit simplifies your control panel and provides powerful data for maintenance. It’s more than just an I/O terminal; it’s a smart device that improves your whole operation. By collecting valuable operating data, this unit helps you predict maintenance needs, reduce downtime, and boost productivity, making it a wise investment for any modern factory.
| Feature | Specification |
|---|---|
| Model | DRT2-ID16-1 |
| Type | DeviceNet Remote I/O Terminal |
| I/O Classification | Digital Input |
| Number of Inputs | 16 points |
| Internal I/O Common | PNP (- common) |
| I/O Power Supply Voltage | 20.4 to 26.4 VDC (24 VDC -15% to +10%) |
| ON Voltage | 15 VDC min. (between each input terminal and G) |
| OFF Voltage | 5 VDC max. (between each input terminal and G) |
| Input Current | 6.0 mA max. per point at 24 VDC |
| Mounting Method | 35-mm DIN Track |
| External Connection | Removable screw terminal block |
Boost Uptime with Smart DeviceNet Communication
The Omron DRT2 series isn’t just about sending ON/OFF signals. This unit is a Smart Slave with advanced DeviceNet communication capability. It means the unit collects vital information right from the source. It monitors machine operating time and counts how many times a sensor has turned on.
This data helps you schedule maintenance before a part fails. This proactive approach is a game-changer for industrial automation, turning unplanned downtime into scheduled service.
High-Density 16 PNP Digital Input in a Compact Unit
The Omron DRT2-ID16-1 gives you 16 digital input points in a very small package. This high density allows you to connect many sensors and switches without using a lot of space. The 16DI terminal is designed for PNP sensors, which are common in industrial applications worldwide.
Installation is simple and fast. The unit snaps directly onto a standard DIN rail. Wiring is easy thanks to the removable screw terminal block with M3 screw-clamp connections. This design saves time during both initial setup and future maintenance.
Advanced Diagnostics for Faster Troubleshooting
The Omron DRT2-ID16-1 has built-in diagnostic functions that make troubleshooting easy. It can monitor the 24VDC supply voltage and alert you if the power is low. The unit also features a communications error history monitor. This log helps you find the root cause of network problems quickly.
Omron DRT2-ID16-1 Product Datasheet
Frequently Asked Questions
The main difference is the input type. The DRT2-ID16 is for NPN (sinking) inputs, while the DRT2-ID16-1 is for PNP (sourcing) inputs with a negative common.
Yes, it is very easy. The unit mounts on a standard 35-mm DIN rail. It uses a removable screw terminal block, which simplifies the wiring process and makes maintenance quick.
This Smart Slave unit can monitor the total operating time of the unit, count the number of times each input is triggered, monitor the network power voltage, and keep a history of communication errors.
It uses DeviceNet, a reliable and widely used industrial network protocol, for all its communication and data transfer.
