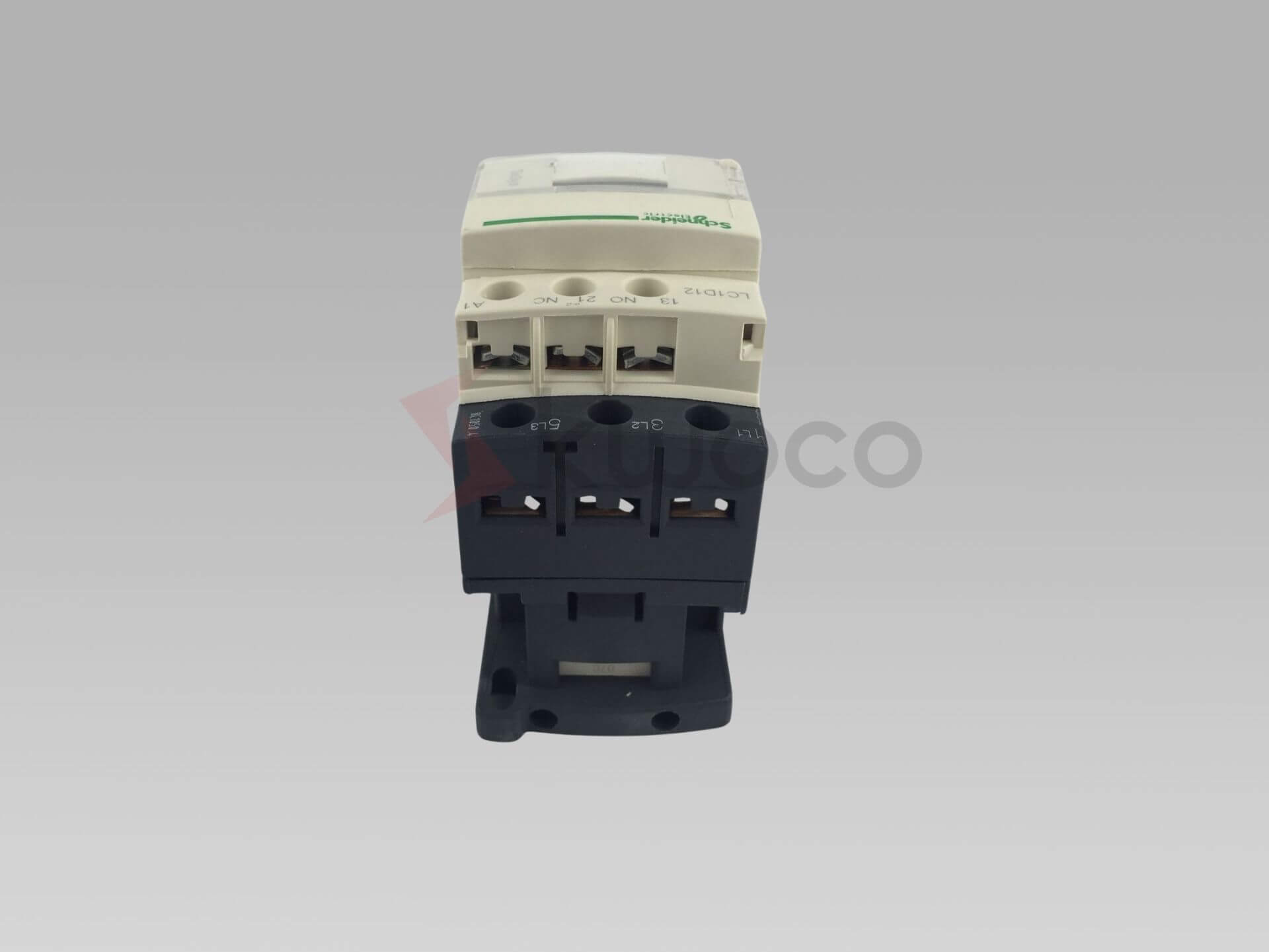

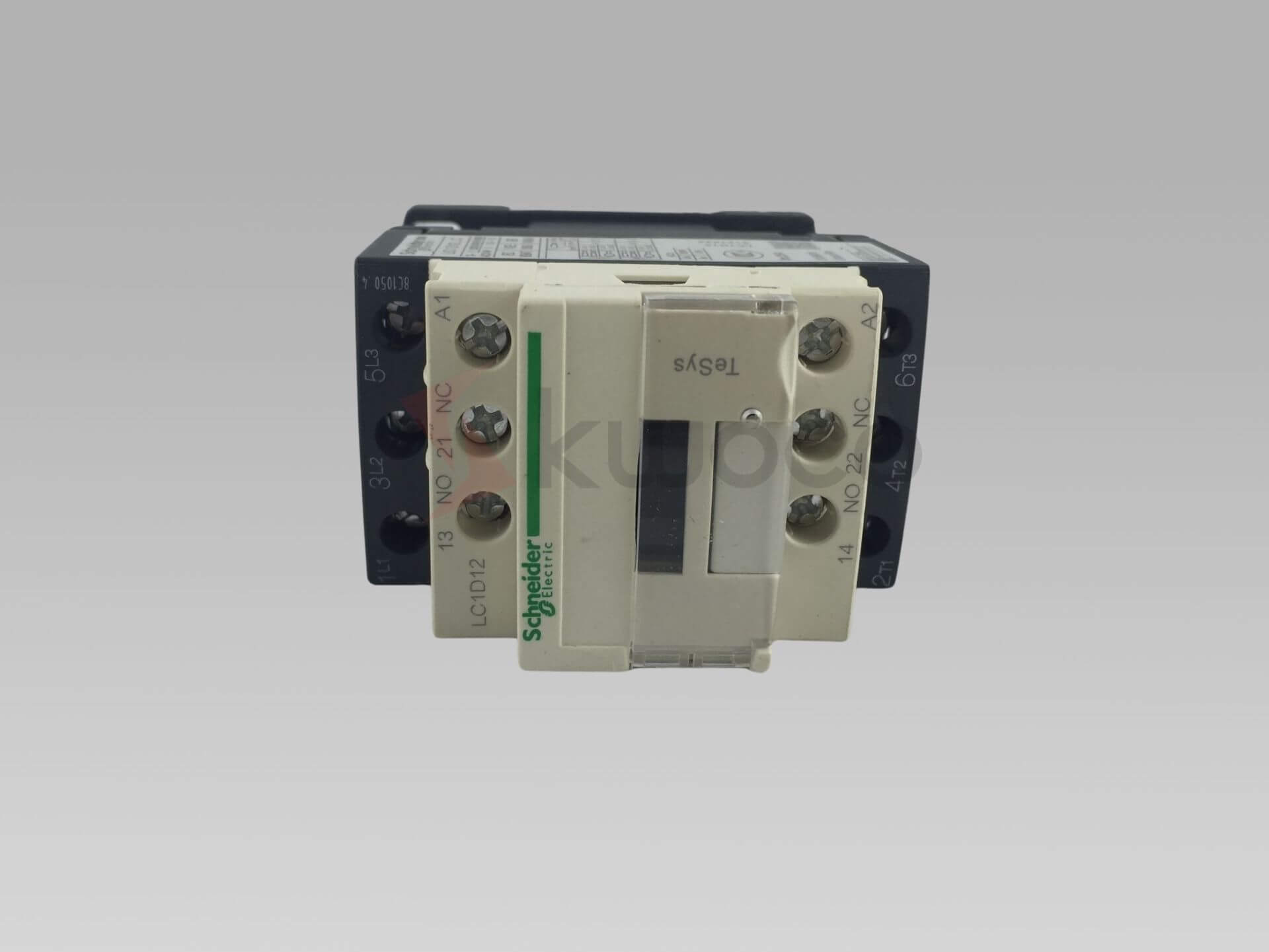

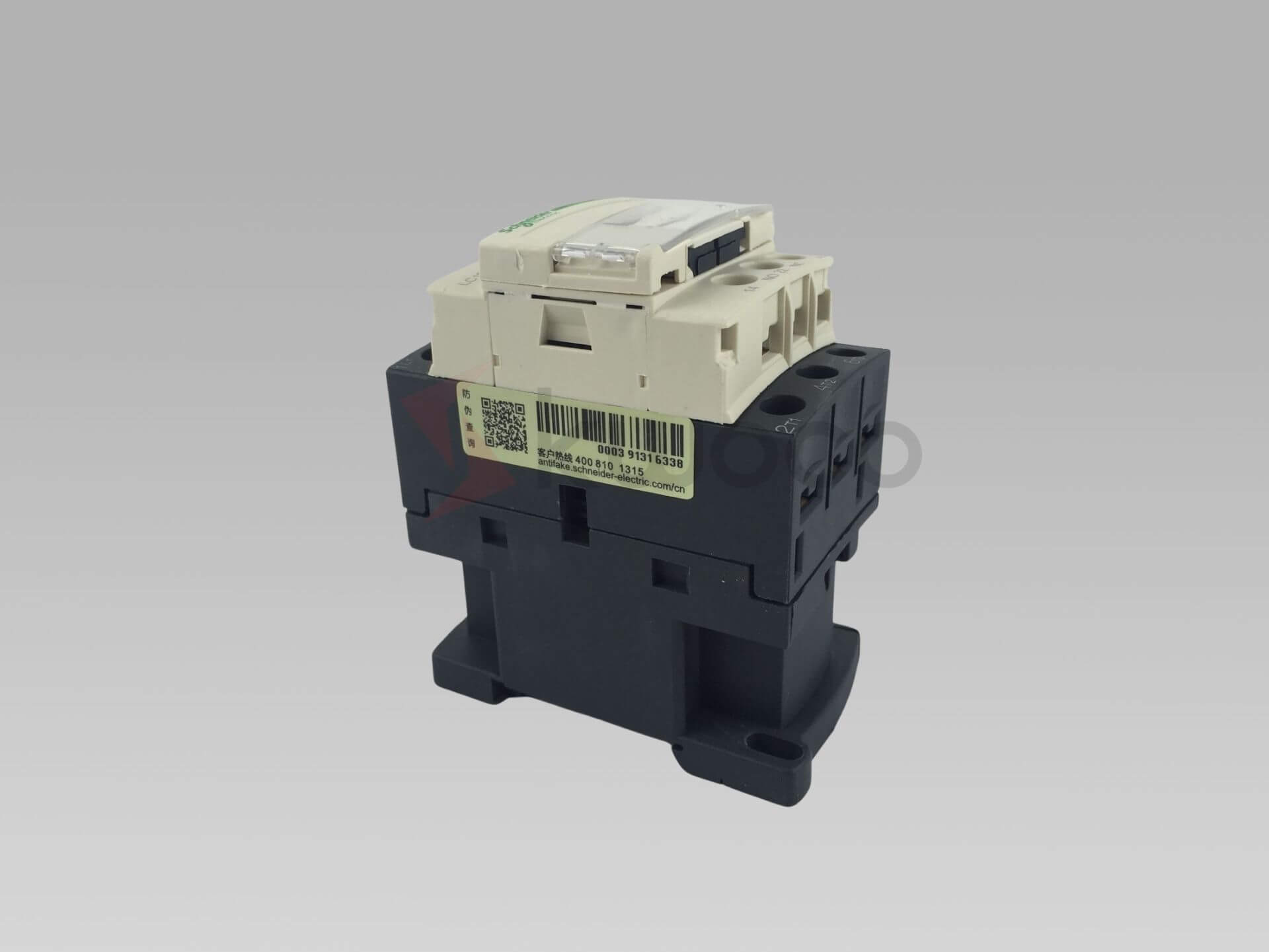

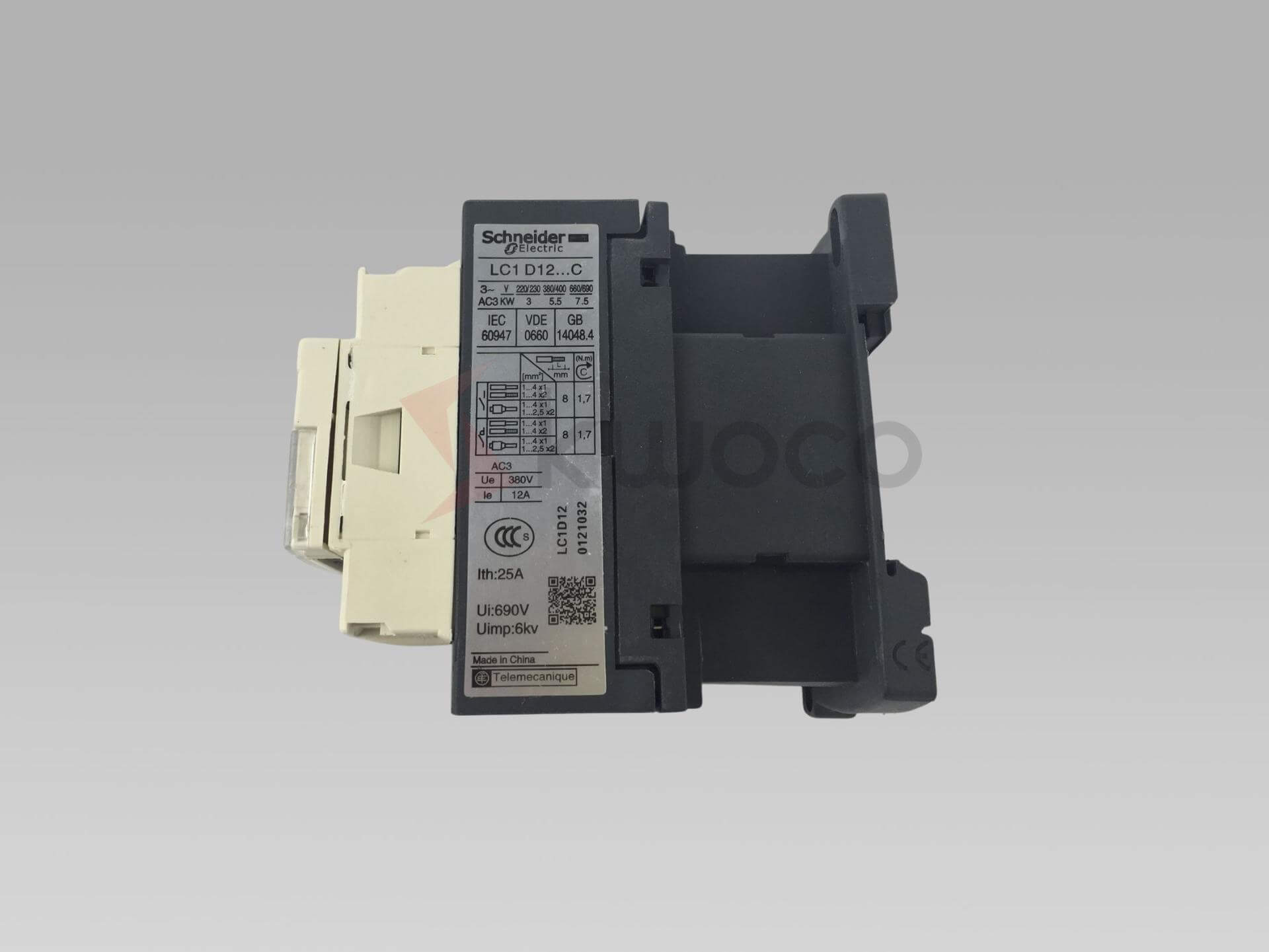

Contator Schneider LC1D12D7C TeSys Deca com envio rápido para todo o mundo.

Name: Schneider LC1D12D7C TeSys Deca Contactor | Fast Global Shipping
Brand: KWOCO
Price: 1 USD
Availability: InStock

TeSys Deca 3-pole contactor, 12A AC-3/AC-3e rated operational current, 25A AC-1 resistive load, 42V AC 50/60Hz control circuit voltage, 5.5kW motor power at 380/400V, 1NO + 1NC built-in auxiliary contacts, screw clamp terminals, IP2X front face protection, 15 Mcycles mechanical durability.

Não chute. Obtenha as respostas que precisa diretamente com nossa equipe.

Principais características e especificações técnicas

When a motor starter fails, you need a fix that lasts. You need a solution that fits right the first time. The Schneider Electric TeSys Deca series is that solution. Specifically, the LC1D12D7C is built for tough jobs. It handles resistive loads and motor control with ease.

LC1D12D7C Main Specifications
Faixa	TeSys Deca
Tipo de produto	Contator
Poles Description	3P (3 NO)
Rated Operational Current (Ie)	12 A (at <60 °C) AC-3/AC-3e 25 A (at <60 °C) AC-1
Control Circuit Voltage (Uc)	42 V AC 50/60 Hz
Motor Power (kW)	5.5 kW at 380/400 V AC 7.5 kW at 500 V AC
Contatos Auxiliares	1 NO + 1 NC
Conexões	Screw clamp terminals
Durabilidade Mecânica	15 Mcycles
Width x Height x Depth	45mm x 77mm x 86mm

Why Choose the Schneider LC1D12D7C Contactor?

This unit is part of the famous TeSys Deca range. It is known for high reliability. It has a long mechanical life. It lasts for 15 million cycles. That means you replace it less often.

It saves you time. It saves you money on maintenance. The design is compact. It fits where space is tight. You do not need to redesign your panel.

Technical Excellence of this Schneider Electric Device

This device handles 12 Amps for motors. It handles 25 Amps for heating loads. The coil voltage is specific. It runs on 42 Volts AC. This is vital for safety circuits.

It also protects your system. It has an overvoltage category of III. The rated insulation voltage is 690V. This keeps your other gear safe. Schneider Electric tests these units hard. They withstand shock and vibration. Your heavy machinery will not shake it loose.

Easy Installation of the Contactor LC1D12D7C

It uses screw clamp terminals. This is the most secure way to connect wires. You can use a flat screwdriver. You can use a Phillips head. The grip is strong. The wires stay put.

Mounting is flexible too. You can snap it on a DIN rail. You can screw it to a plate. It adapts to your setup. The contactor LC1D12D7C is user-friendly. An integrator can install it fast.
